| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58587cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58587cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,200,960 | 93,715,200 |
| Size | 499.0 MB | 89.4 MB |
| Events in quadrant A | 4,338,141 | 638,169 |
| Events in quadrant B | 4,867,546 | 657,312 |
| Events in quadrant C | 6,260,519 | 501,784 |
| Events in quadrant D | 3,377,512 | 571,095 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17464 | 2 |
| B | 0 | 19153 | 2 |
| C | 0 | 23290 | 2 |
| D | 0 | 15008 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6733 | 111 | 1.648596% |
| B | 6733 | 472 | 7.010248% |
| C | 6734 | 1431 | 21.250371% |
| D | 6734 | 60 | 0.891001% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

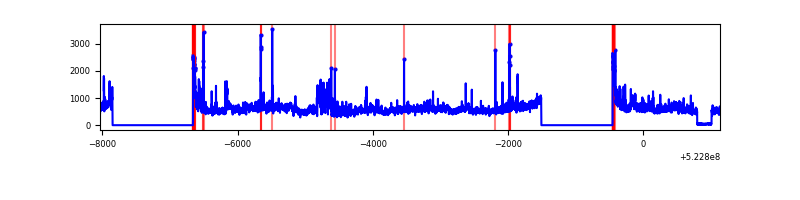

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9175 | 6931 | 50 | 50 | 0.54% | 0.72% |  |
| B | 9175 | 6925 | 282 | 282 | 3.07% | 4.07% |  |
| C | 9176 | 6932 | 1024 | 1024 | 11.16% | 14.77% |  |
| D | 9176 | 6932 | 32 | 32 | 0.35% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1125135 | 6020.1 | 750 | 728 | 186.8 |
| A | 15 | 233 | 104017 | 553.01 | 750 | 728 | 186.8 |
| A | 12 | 114 | 95292 | 506.3 | 750 | 728 | 186.8 |
| B | 6 | 255 | 1154445 | 7319.42 | 735 | 708 | 157.6 |
| B | 5 | 172 | 196214 | 1240.31 | 735 | 708 | 157.6 |
| B | 4 | 171 | 132223 | 834.34 | 735 | 708 | 157.6 |
| C | 2 | 12 | 3119944 | 17746.0 | 640 | 637 | 175.8 |
| C | 12 | 254 | 139341 | 789.1 | 640 | 637 | 175.8 |
| C | 12 | 241 | 109557 | 619.66 | 640 | 637 | 175.8 |
| D | 2 | 249 | 142087 | 677.21 | 728 | 697 | 208.8 |
| D | 5 | 38 | 90888 | 431.99 | 728 | 697 | 208.8 |
| D | 3 | 12 | 73211 | 347.32 | 728 | 697 | 208.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

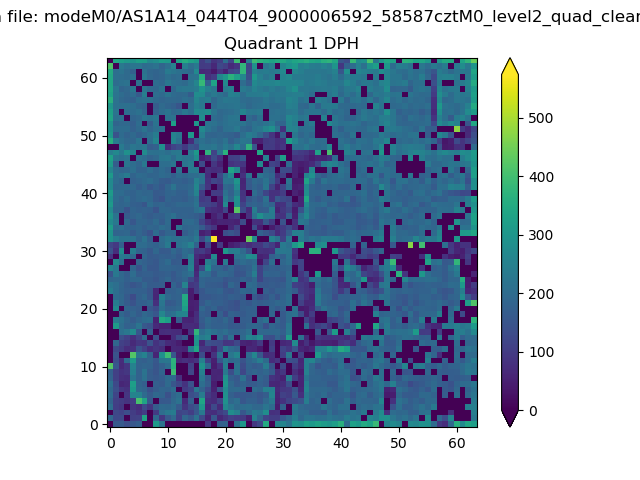

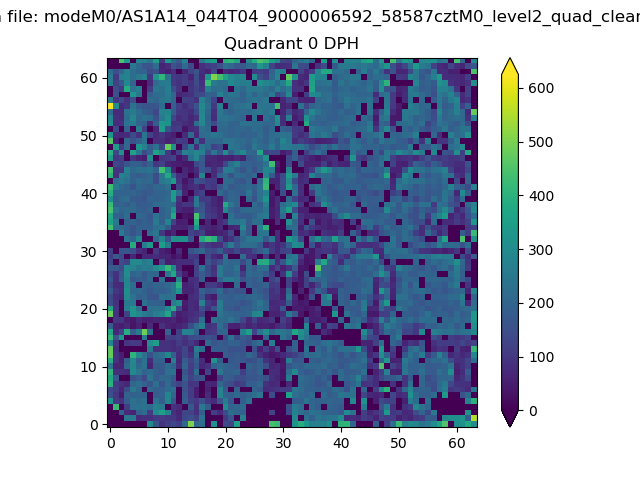

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

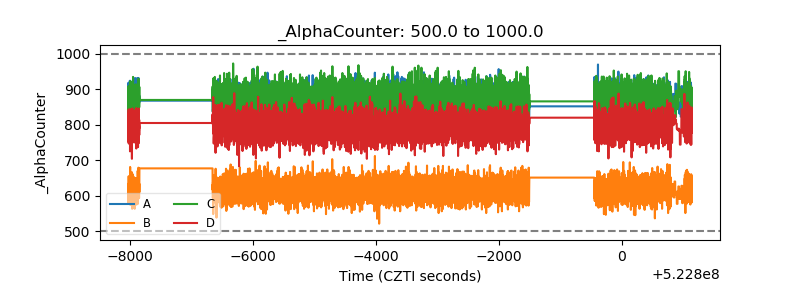

| Alpha Counter |  |

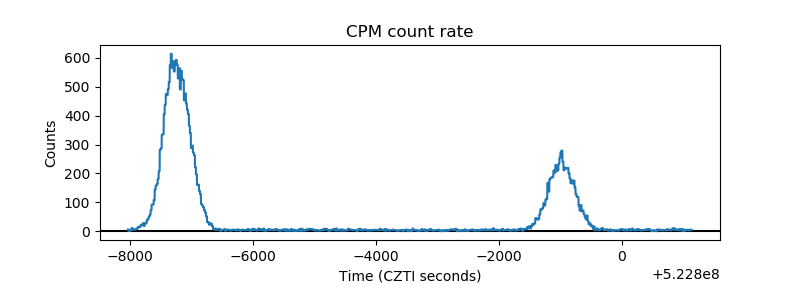

| _CPM_Rate |  |
| CZT Counter |  |

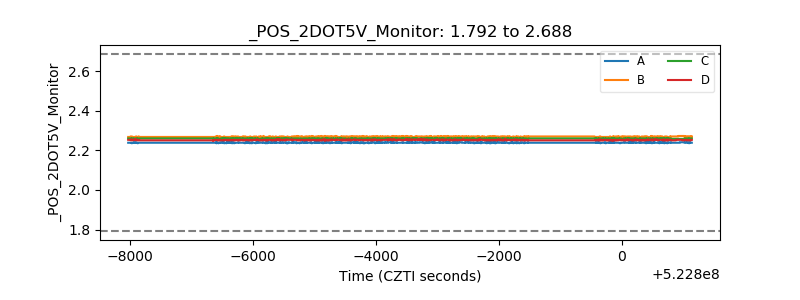

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
