| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58589cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58589cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,265,280 | 114,540,480 |
| Size | 639.2 MB | 109.2 MB |
| Events in quadrant A | 5,902,311 | 762,105 |
| Events in quadrant B | 8,868,484 | 653,316 |
| Events in quadrant C | 4,868,995 | 757,253 |
| Events in quadrant D | 4,524,253 | 716,254 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23322 | 2 |
| B | 0 | 31967 | 2 |
| C | 0 | 20274 | 11 |
| D | 0 | 19569 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8335 | 565 | 6.778644% |
| B | 8335 | 2205 | 26.454709% |
| C | 8332 | 247 | 2.964474% |
| D | 8336 | 138 | 1.655470% |

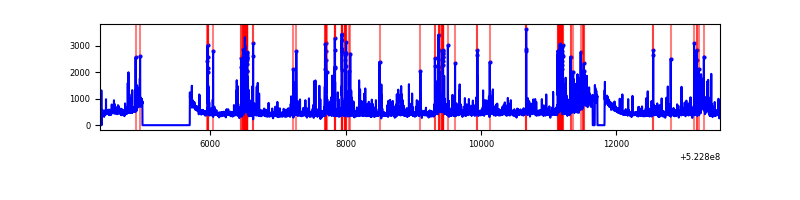

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

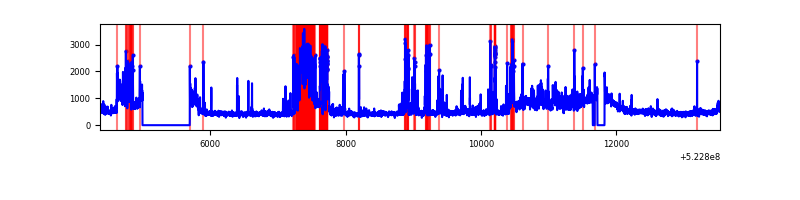

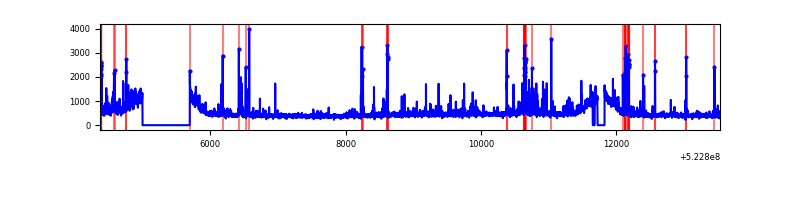

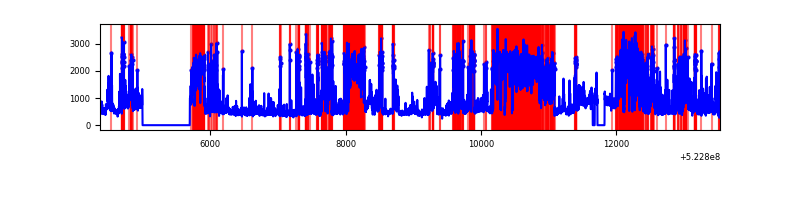

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9170 | 8337 | 358 | 358 | 3.90% | 4.29% |  |
| B | 9170 | 8338 | 1408 | 1408 | 15.35% | 16.89% |  |
| C | 9171 | 8336 | 134 | 134 | 1.46% | 1.61% |  |
| D | 9171 | 8339 | 61 | 61 | 0.67% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1675616 | 7132.32 | 954 | 927 | 234.8 |
| A | 10 | 251 | 240351 | 1019.68 | 954 | 927 | 234.8 |
| A | 15 | 233 | 79887 | 336.28 | 954 | 927 | 234.8 |
| B | 5 | 172 | 3962920 | 21787.33 | 843 | 811 | 181.9 |
| B | 6 | 255 | 1109602 | 6097.16 | 843 | 811 | 181.9 |
| B | 0 | 171 | 92057 | 501.75 | 843 | 811 | 181.9 |
| C | 12 | 254 | 833830 | 3277.94 | 931 | 925 | 254.1 |
| C | 12 | 252 | 82048 | 319.26 | 931 | 925 | 254.1 |
| C | 14 | 245 | 77357 | 300.8 | 931 | 925 | 254.1 |
| D | 5 | 38 | 280677 | 1044.74 | 931 | 888 | 267.8 |
| D | 2 | 120 | 140830 | 522.55 | 931 | 888 | 267.8 |
| D | 2 | 249 | 122935 | 455.73 | 931 | 888 | 267.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

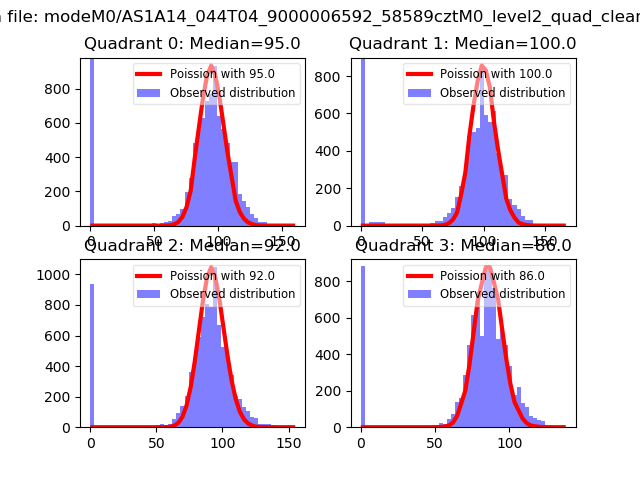

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

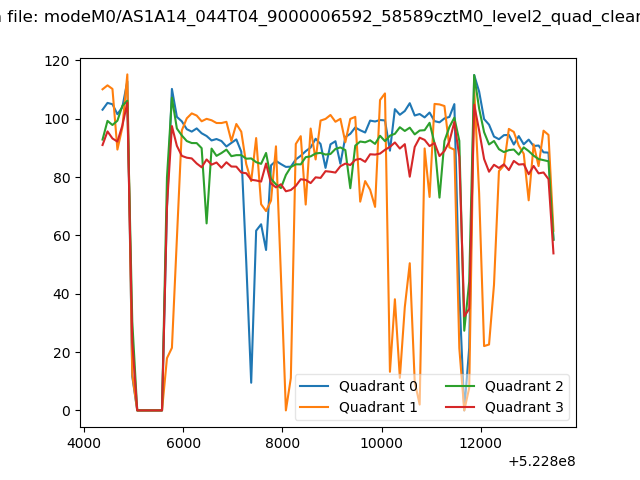

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

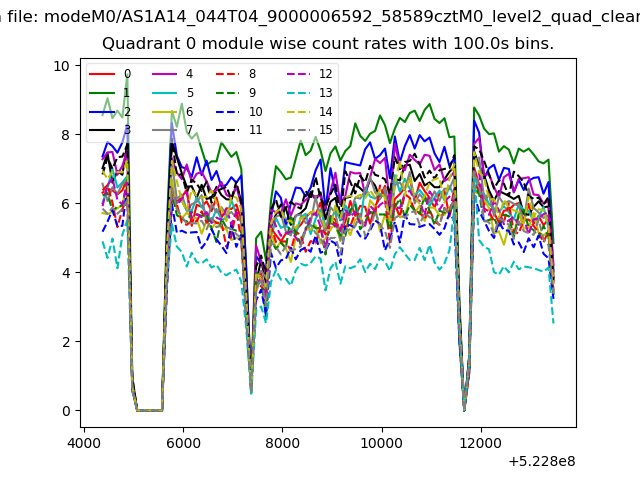

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

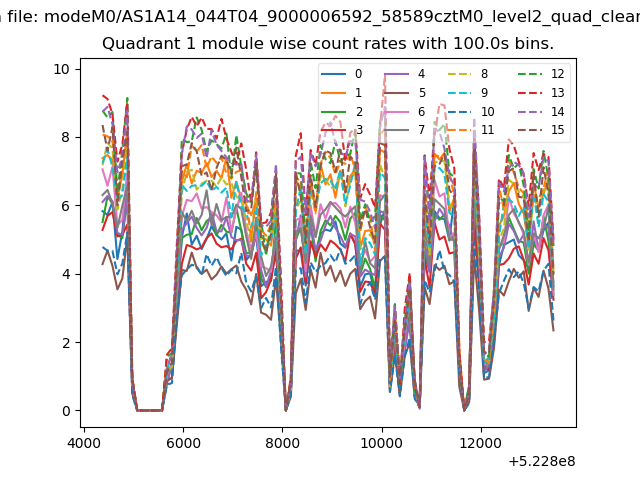

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

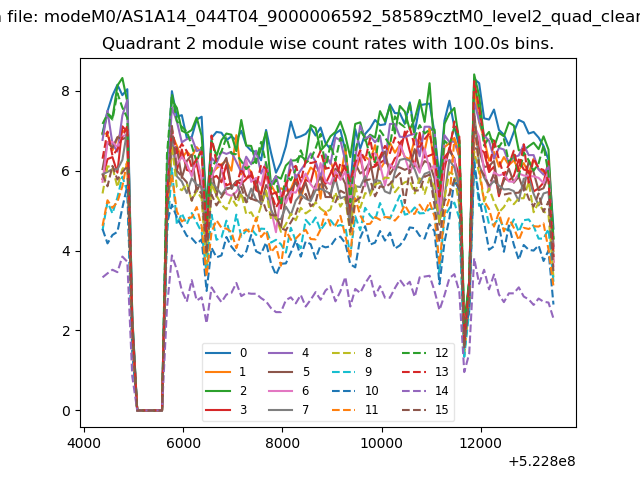

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

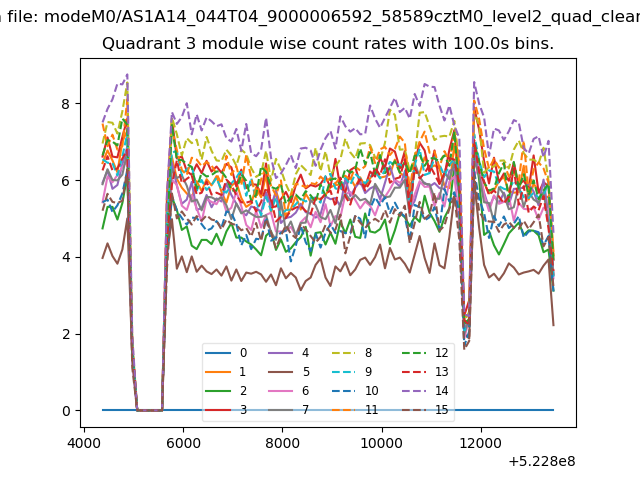

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

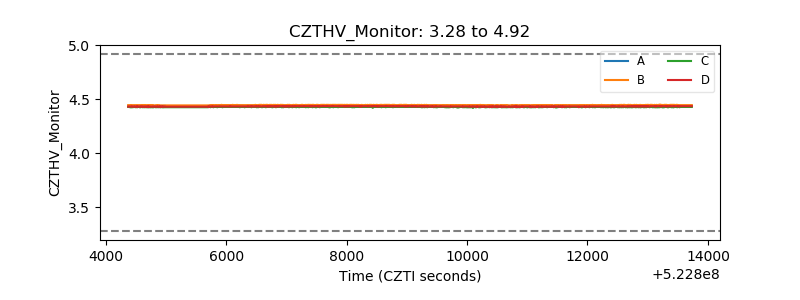

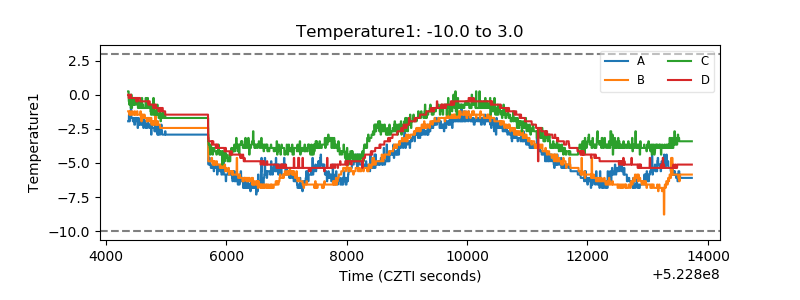

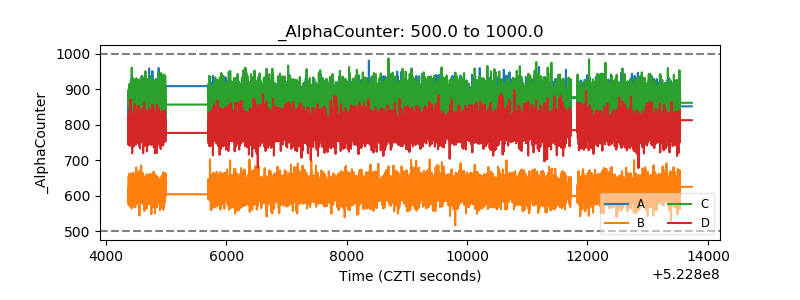

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

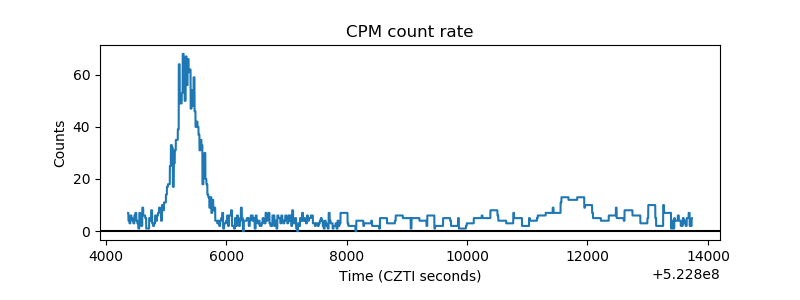

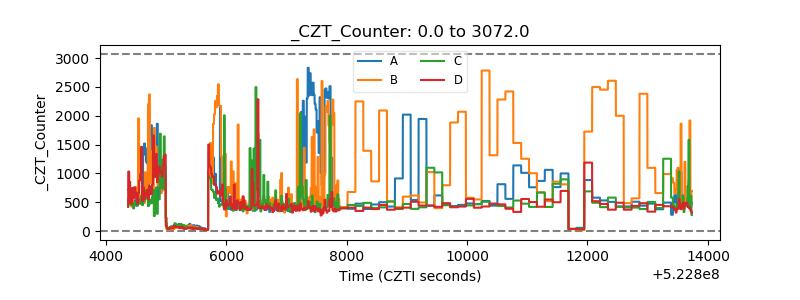

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

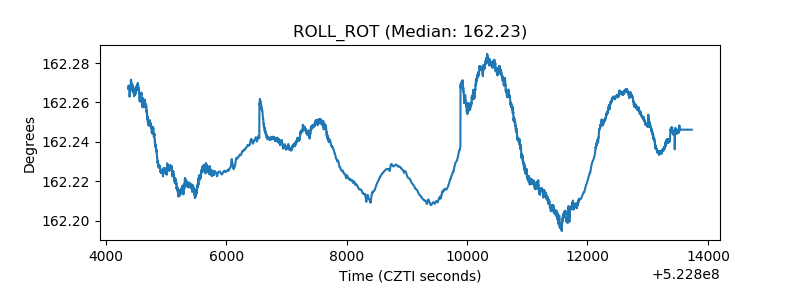

| _ROLL_ROT |  |

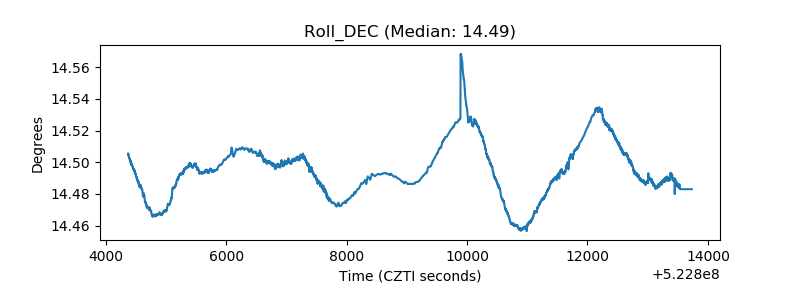

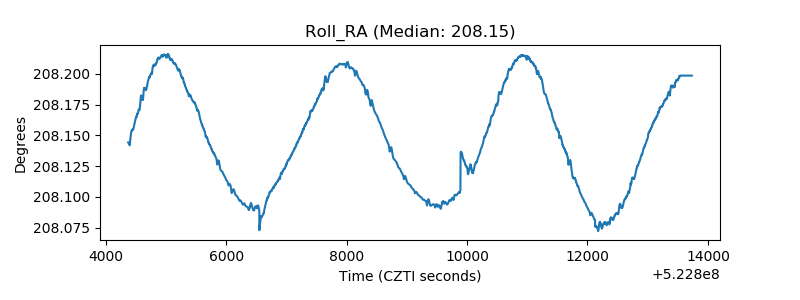

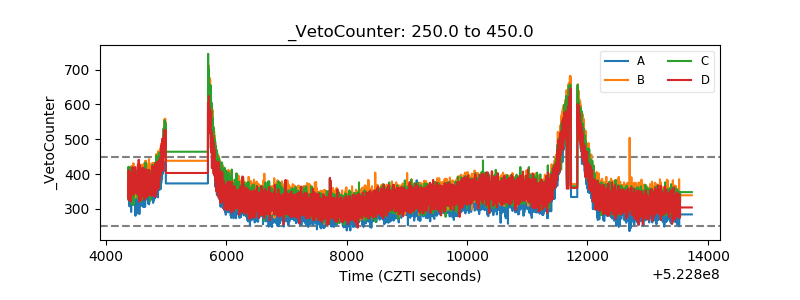

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
