| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58590cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58590cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,629,440 | 100,848,960 |
| Size | 517.5 MB | 96.2 MB |
| Events in quadrant A | 4,247,935 | 654,508 |
| Events in quadrant B | 6,622,037 | 673,941 |
| Events in quadrant C | 5,048,662 | 612,350 |
| Events in quadrant D | 3,581,000 | 586,679 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17604 | 6 |
| B | 0 | 24852 | 0 |
| C | 0 | 20313 | 0 |
| D | 0 | 16226 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7561 | 105 | 1.388705% |
| B | 7561 | 755 | 9.985452% |
| C | 7561 | 257 | 3.399021% |
| D | 7562 | 26 | 0.343824% |

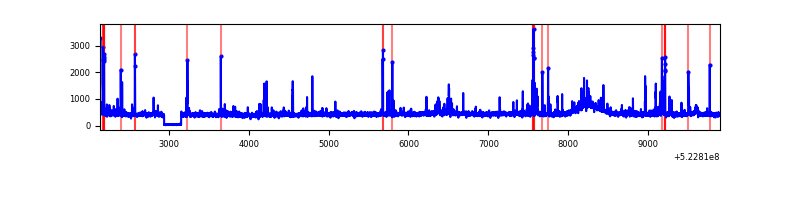

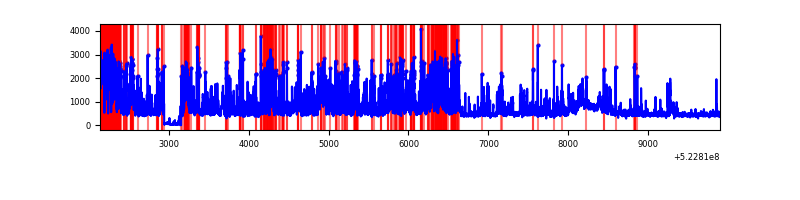

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7756 | 7756 | 87 | 87 | 1.12% | 1.12% |  |
| B | 7757 | 7748 | 532 | 532 | 6.86% | 6.87% |  |
| C | 7757 | 7757 | 250 | 250 | 3.22% | 3.22% |  |
| D | 7758 | 7758 | 30 | 30 | 0.39% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 751873 | 3595.59 | 837 | 814 | 208.9 |
| A | 8 | 249 | 76764 | 363.6 | 837 | 814 | 208.9 |
| A | 10 | 17 | 52644 | 248.13 | 837 | 814 | 208.9 |
| B | 5 | 172 | 2631704 | 15207.05 | 808 | 779 | 173.0 |
| B | 6 | 255 | 355946 | 2052.91 | 808 | 779 | 173.0 |
| B | 0 | 171 | 158625 | 912.37 | 808 | 779 | 173.0 |
| C | 12 | 254 | 1140569 | 5133.5 | 806 | 800 | 222.0 |
| C | 12 | 252 | 157718 | 706.76 | 806 | 800 | 222.0 |
| C | 1 | 12 | 150628 | 674.82 | 806 | 800 | 222.0 |
| D | 12 | 248 | 92822 | 399.67 | 810 | 773 | 230.3 |
| D | 2 | 120 | 85409 | 367.48 | 810 | 773 | 230.3 |
| D | 8 | 240 | 76906 | 330.56 | 810 | 773 | 230.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

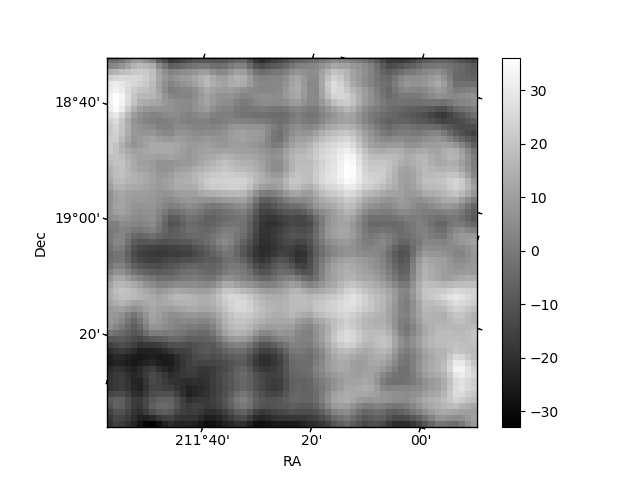

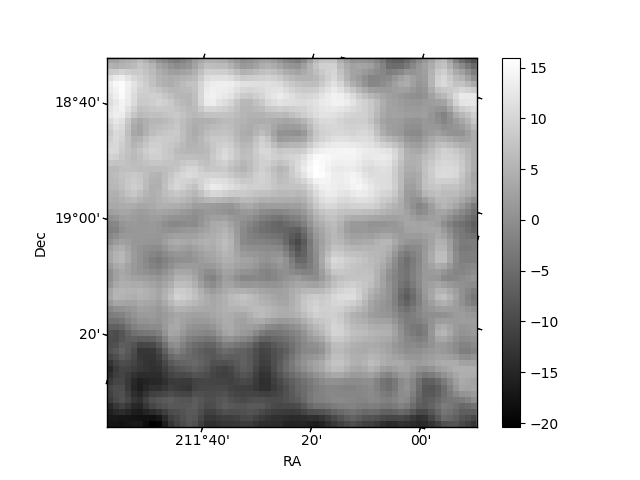

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

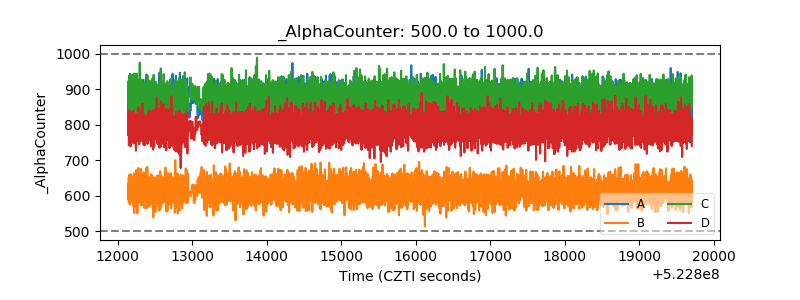

| Alpha Counter |  |
| _CPM_Rate |  |

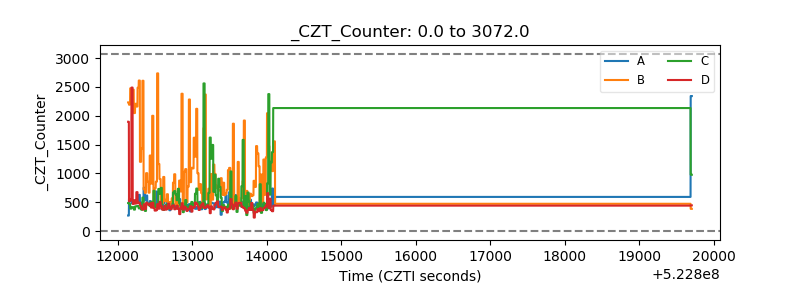

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

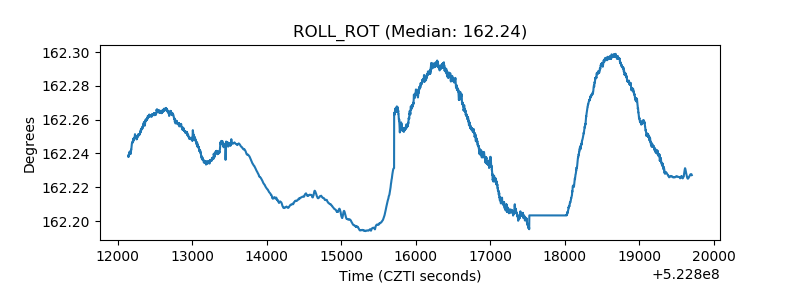

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

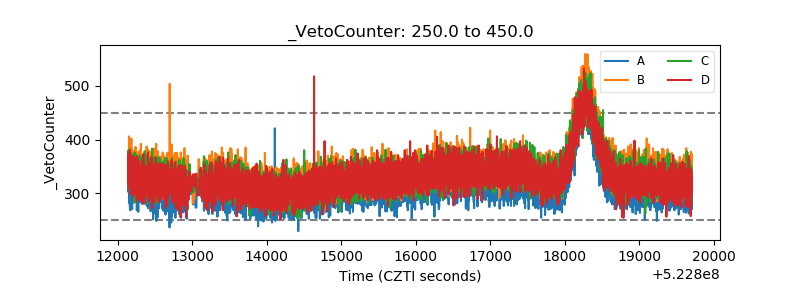

| Veto Counter |  |
