| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58591cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58591cztM0_level2_quad_clean.evt |
| Size (bytes) | 682,329,600 | 112,464,000 |
| Size | 650.7 MB | 107.3 MB |
| Events in quadrant A | 10,823,958 | 587,605 |
| Events in quadrant B | 4,462,193 | 817,815 |
| Events in quadrant C | 5,107,446 | 732,793 |
| Events in quadrant D | 4,230,787 | 699,214 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38010 | 9 |
| B | 0 | 18715 | 0 |
| C | 0 | 20920 | 0 |
| D | 0 | 18384 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8164 | 2238 | 27.413033% |
| B | 8166 | 301 | 3.686015% |
| C | 8167 | 262 | 3.208032% |
| D | 8166 | 52 | 0.636787% |

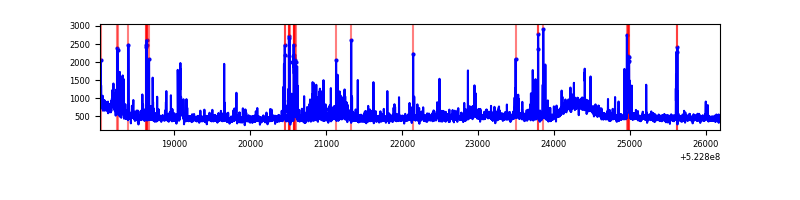

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8166 | 8166 | 1968 | 1968 | 24.10% | 24.10% |  |
| B | 8166 | 8166 | 36 | 36 | 0.44% | 0.44% |  |
| C | 8167 | 8167 | 196 | 196 | 2.40% | 2.40% |  |
| D | 8167 | 8167 | 42 | 42 | 0.51% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 7268818 | 34000.5 | 862 | 839 | 213.8 |
| A | 13 | 248 | 49462 | 227.46 | 862 | 839 | 213.8 |
| A | 10 | 251 | 42755 | 196.09 | 862 | 839 | 213.8 |
| B | 6 | 255 | 246611 | 1224.09 | 924 | 887 | 200.7 |
| B | 5 | 172 | 183401 | 909.2 | 924 | 887 | 200.7 |
| B | 4 | 171 | 130492 | 645.63 | 924 | 887 | 200.7 |
| C | 12 | 254 | 918301 | 3755.85 | 899 | 893 | 244.3 |
| C | 12 | 252 | 181612 | 739.86 | 899 | 893 | 244.3 |
| C | 4 | 5 | 132339 | 538.14 | 899 | 893 | 244.3 |
| D | 8 | 240 | 215507 | 841.74 | 903 | 862 | 255.0 |
| D | 2 | 249 | 98965 | 384.72 | 903 | 862 | 255.0 |
| D | 2 | 31 | 88430 | 343.4 | 903 | 862 | 255.0 |

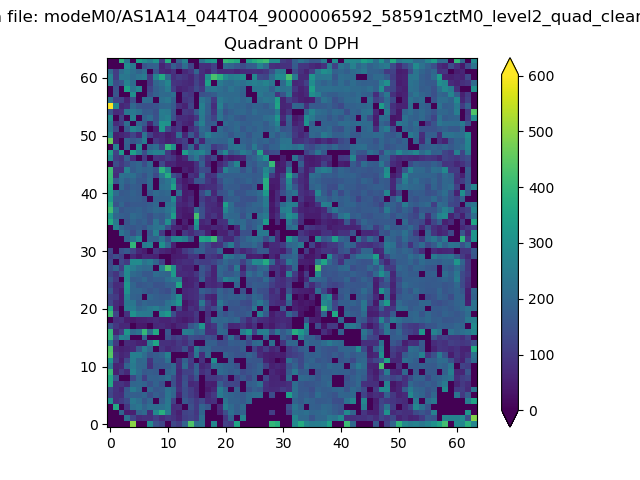

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

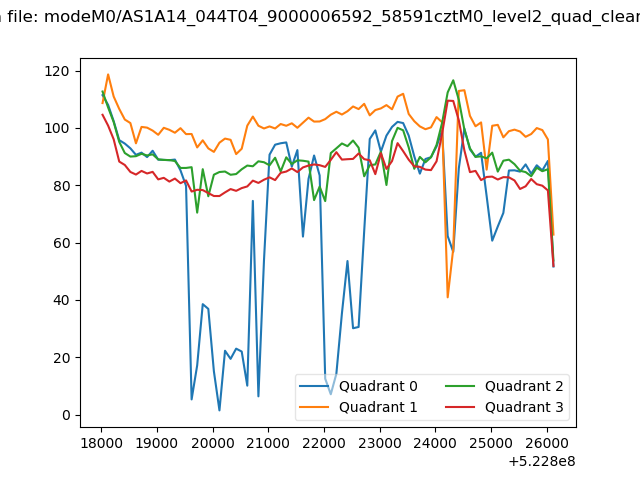

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

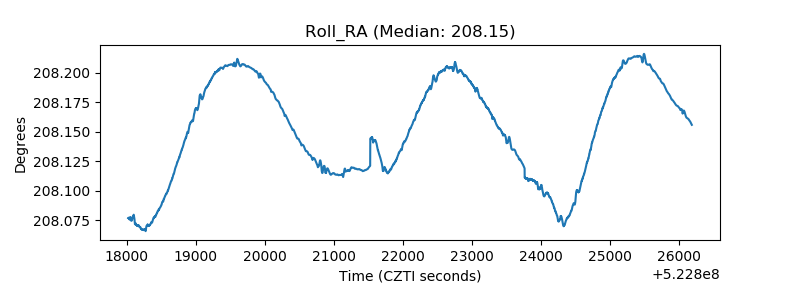

| _Roll_RA |  |

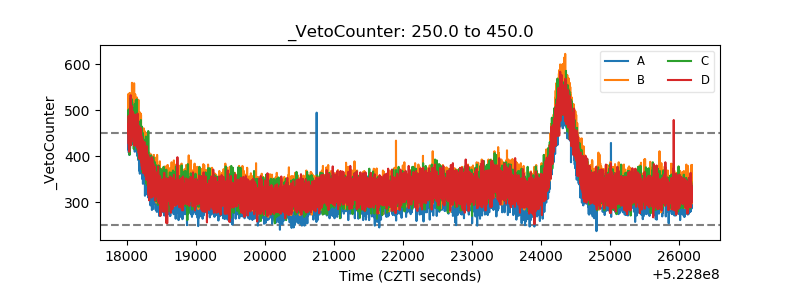

| Veto Counter |  |
