| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58597cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58597cztM0_level2_quad_clean.evt |
| Size (bytes) | 944,686,080 | 66,165,120 |
| Size | 900.9 MB | 63.1 MB |
| Events in quadrant A | 8,260,918 | 428,503 |
| Events in quadrant B | 7,862,216 | 480,297 |
| Events in quadrant C | 13,029,046 | 158,782 |
| Events in quadrant D | 5,339,413 | 503,840 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28642 | 3 |
| B | 0 | 27570 | 1 |
| C | 0 | 43003 | 1 |
| D | 0 | 20048 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6181 | 1988 | 32.163080% |
| B | 6182 | 1891 | 30.588806% |
| C | 6182 | 4623 | 74.781624% |
| D | 6182 | 580 | 9.382077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

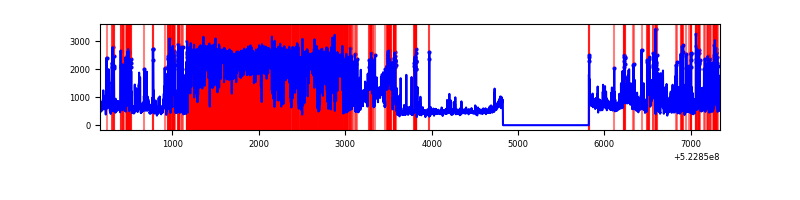

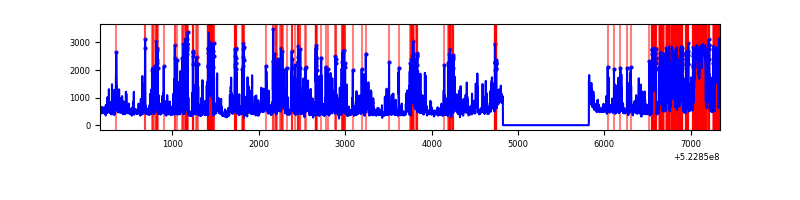

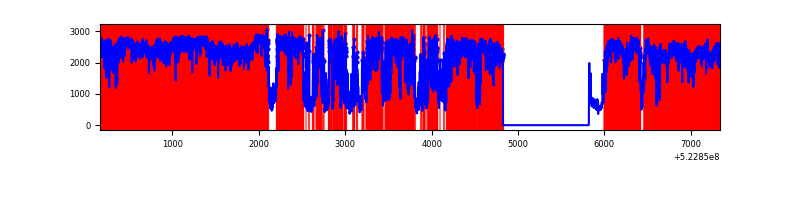

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7175 | 6180 | 1876 | 1876 | 26.15% | 30.36% |  |
| B | 7177 | 6182 | 1637 | 1637 | 22.81% | 26.48% |  |
| C | 7176 | 6181 | 4455 | 4455 | 62.08% | 72.08% |  |
| D | 7177 | 6182 | 585 | 585 | 8.15% | 9.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 5781971 | 42004.35 | 554 | 540 | 137.6 |
| A | 12 | 114 | 69165 | 498.59 | 554 | 540 | 137.6 |
| A | 10 | 251 | 61904 | 445.83 | 554 | 540 | 137.6 |
| B | 6 | 255 | 3477940 | 27596.51 | 580 | 559 | 126.0 |
| B | 5 | 172 | 1378508 | 10935.41 | 580 | 559 | 126.0 |
| B | 8 | 234 | 186741 | 1477.54 | 580 | 559 | 126.0 |
| C | 15 | 164 | 11549774 | 141058.1 | 293 | 292 | 81.9 |
| C | 2 | 12 | 132427 | 1613.81 | 293 | 292 | 81.9 |
| C | 12 | 252 | 62898 | 764.63 | 293 | 292 | 81.9 |
| D | 3 | 12 | 1318219 | 7149.4 | 645 | 616 | 184.3 |
| D | 2 | 249 | 473412 | 2565.42 | 645 | 616 | 184.3 |
| D | 11 | 129 | 343438 | 1860.17 | 645 | 616 | 184.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

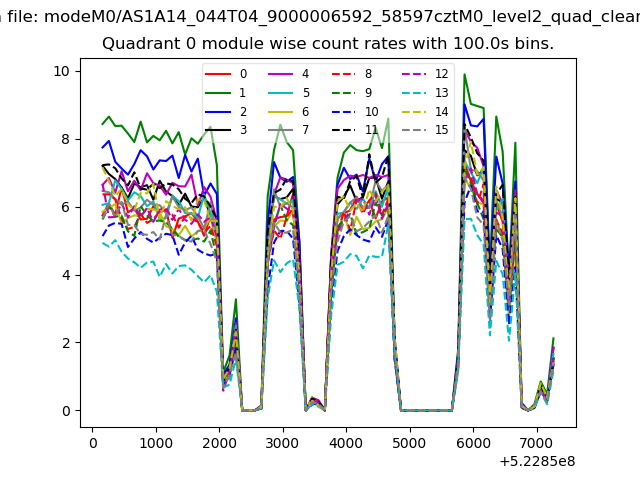

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

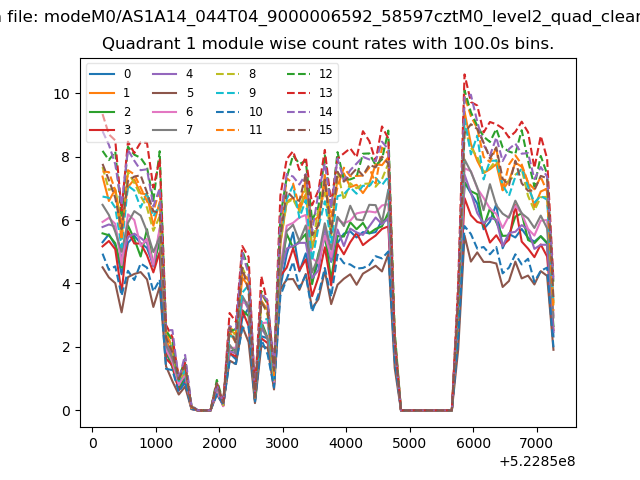

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

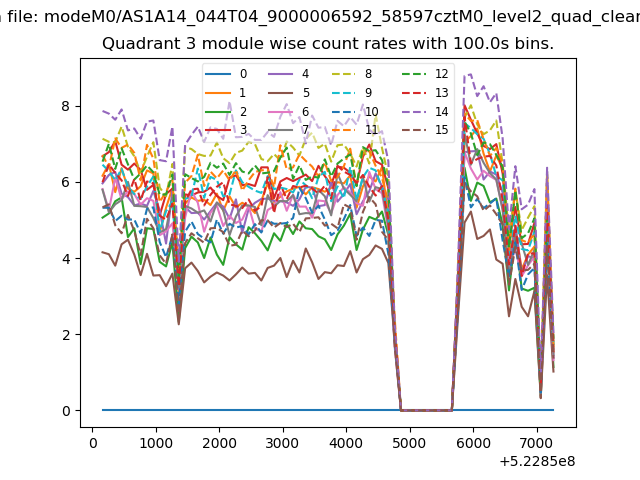

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
