| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58602cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58602cztM0_level2_quad_clean.evt |
| Size (bytes) | 851,569,920 | 75,795,840 |
| Size | 812.1 MB | 72.3 MB |
| Events in quadrant A | 4,370,404 | 643,637 |
| Events in quadrant B | 6,609,877 | 509,138 |
| Events in quadrant C | 16,106,685 | 111,424 |
| Events in quadrant D | 3,918,424 | 566,304 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17486 | 2 |
| B | 0 | 24336 | 2 |
| C | 0 | 52387 | 5 |
| D | 0 | 16438 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6665 | 68 | 1.020255% |
| B | 6665 | 1810 | 27.156789% |
| C | 6664 | 5657 | 84.888956% |
| D | 6664 | 193 | 2.896158% |

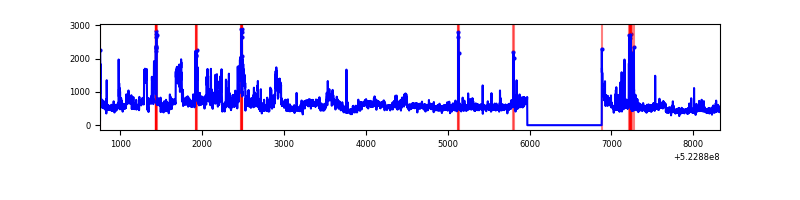

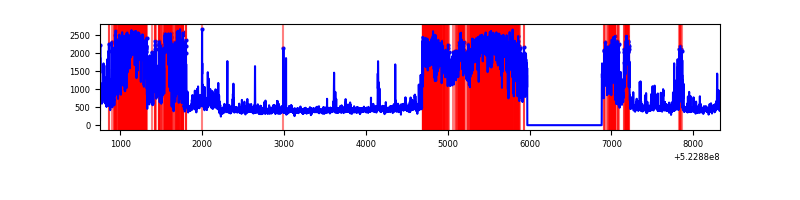

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 6666 | 35 | 35 | 0.46% | 0.53% |  |
| B | 7575 | 6665 | 1099 | 1099 | 14.51% | 16.49% |  |
| C | 7573 | 6664 | 5630 | 5630 | 74.34% | 84.48% |  |
| D | 7574 | 6665 | 192 | 192 | 2.53% | 2.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 952470 | 5264.02 | 728 | 707 | 180.8 |
| A | 12 | 114 | 214512 | 1182.51 | 728 | 707 | 180.8 |
| A | 10 | 17 | 186996 | 1030.33 | 728 | 707 | 180.8 |
| B | 6 | 255 | 3492818 | 26921.34 | 607 | 585 | 129.7 |
| B | 8 | 234 | 164132 | 1260.77 | 607 | 585 | 129.7 |
| B | 2 | 249 | 143536 | 1102.0 | 607 | 585 | 129.7 |
| C | 15 | 217 | 13126553 | 134237.07 | 353 | 350 | 97.8 |
| C | 15 | 164 | 995375 | 10175.77 | 353 | 350 | 97.8 |
| C | 9 | 38 | 366058 | 3739.97 | 353 | 350 | 97.8 |
| D | 2 | 249 | 441926 | 2202.26 | 696 | 663 | 200.4 |
| D | 3 | 12 | 340491 | 1696.02 | 696 | 663 | 200.4 |
| D | 2 | 120 | 160026 | 795.35 | 696 | 663 | 200.4 |

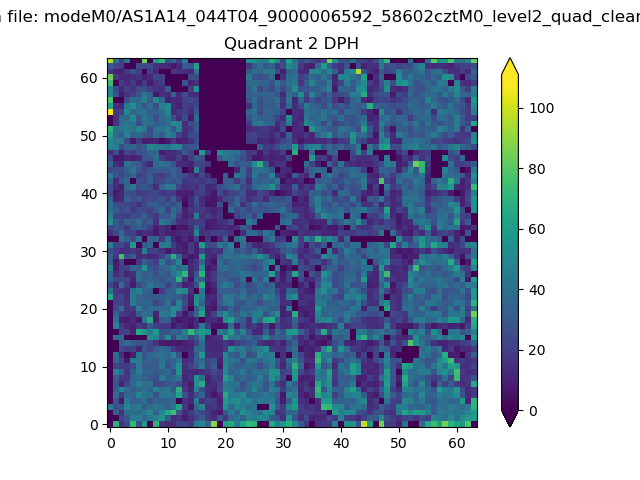

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

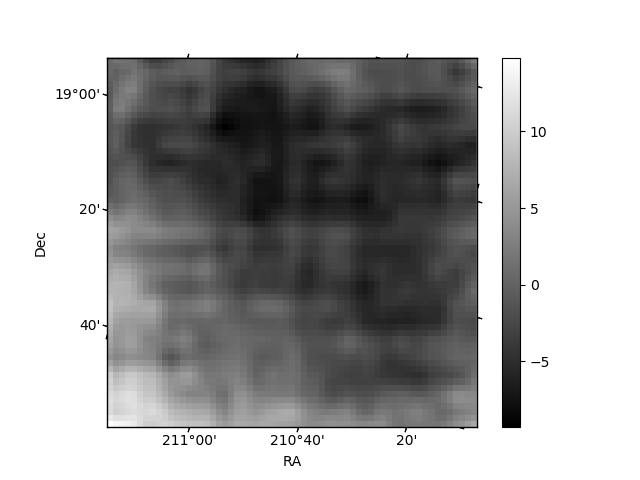

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

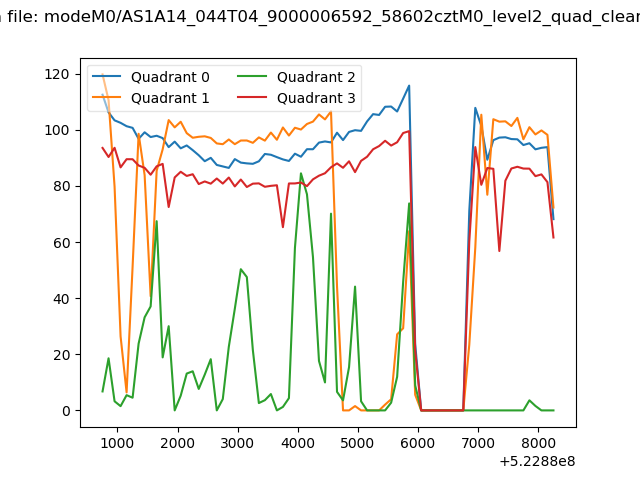

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

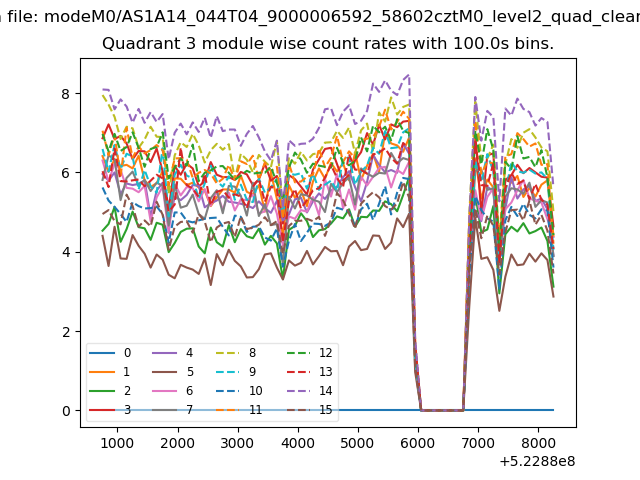

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

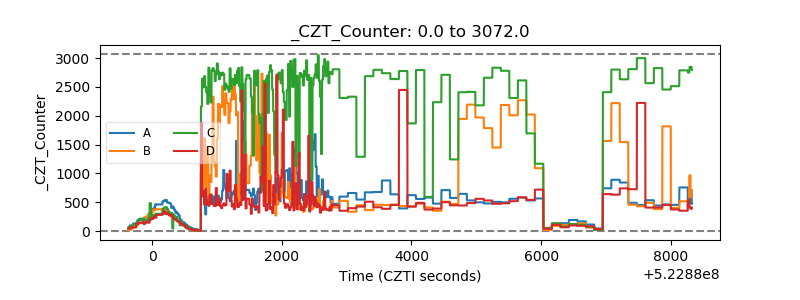

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

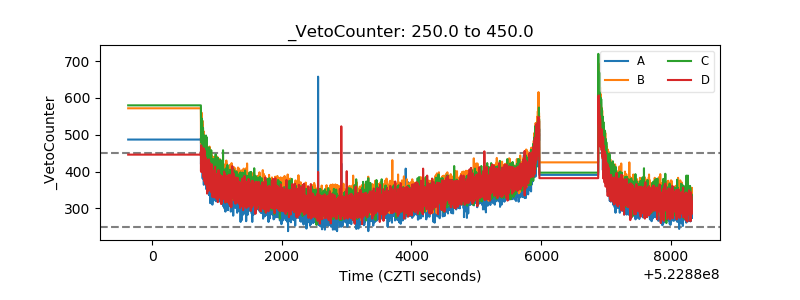

| Veto Counter |  |
