| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58603cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58603cztM0_level2_quad_clean.evt |
| Size (bytes) | 844,649,280 | 88,626,240 |
| Size | 805.5 MB | 84.5 MB |
| Events in quadrant A | 4,532,786 | 690,528 |
| Events in quadrant B | 4,706,581 | 710,989 |
| Events in quadrant C | 16,494,657 | 165,595 |
| Events in quadrant D | 4,963,241 | 605,991 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18285 | 2 |
| B | 0 | 19005 | 2 |
| C | 0 | 54071 | 2 |
| D | 0 | 20084 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7332 | 180 | 2.454992% |
| B | 7332 | 514 | 7.010366% |
| C | 7332 | 5735 | 78.218767% |
| D | 7331 | 421 | 5.742736% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8762 | 7333 | 71 | 71 | 0.81% | 0.97% |  |
| B | 8761 | 7331 | 225 | 225 | 2.57% | 3.07% |  |
| C | 8762 | 7333 | 5706 | 5706 | 65.12% | 77.81% |  |
| D | 8760 | 7332 | 423 | 423 | 4.83% | 5.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 651688 | 3215.91 | 814 | 790 | 202.4 |
| A | 12 | 114 | 316200 | 1558.35 | 814 | 790 | 202.4 |
| A | 7 | 64 | 183498 | 902.71 | 814 | 790 | 202.4 |
| B | 6 | 255 | 633892 | 3692.06 | 796 | 765 | 171.5 |
| B | 8 | 234 | 207697 | 1206.72 | 796 | 765 | 171.5 |
| B | 0 | 171 | 128181 | 743.02 | 796 | 765 | 171.5 |
| C | 15 | 217 | 10816368 | 88017.56 | 446 | 441 | 122.9 |
| C | 15 | 164 | 3578164 | 29114.7 | 446 | 441 | 122.9 |
| C | 12 | 249 | 92538 | 749.46 | 446 | 441 | 122.9 |
| D | 2 | 249 | 1287701 | 5813.78 | 773 | 738 | 221.4 |
| D | 8 | 240 | 193787 | 872.09 | 773 | 738 | 221.4 |
| D | 2 | 120 | 133187 | 598.33 | 773 | 738 | 221.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

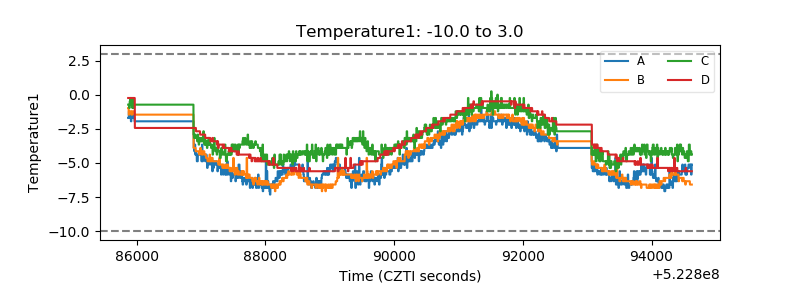

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

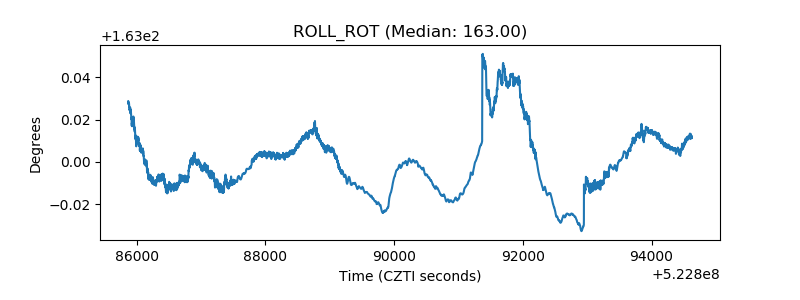

| _ROLL_ROT |  |

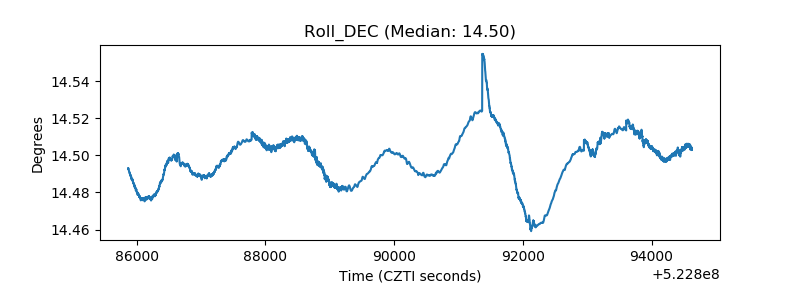

| _Roll_DEC |  |

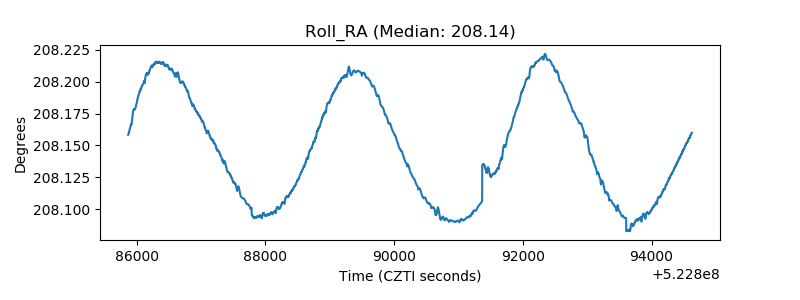

| _Roll_RA |  |
| Veto Counter |  |
