| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58604cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58604cztM0_level2_quad_clean.evt |
| Size (bytes) | 834,871,680 | 97,721,280 |
| Size | 796.2 MB | 93.2 MB |
| Events in quadrant A | 5,251,915 | 740,118 |
| Events in quadrant B | 6,889,639 | 604,084 |
| Events in quadrant C | 12,760,080 | 422,591 |
| Events in quadrant D | 5,394,316 | 646,768 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20978 | 6 |
| B | 0 | 25927 | 12 |
| C | 0 | 43475 | 107 |
| D | 0 | 21726 | 20 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7846 | 150 | 1.911802% |
| B | 7845 | 2040 | 26.003824% |
| C | 7834 | 3451 | 44.051570% |
| D | 7843 | 420 | 5.355094% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

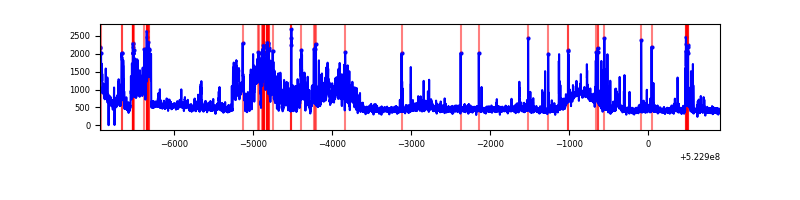

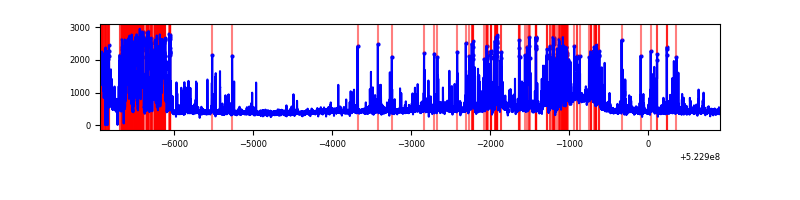

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7847 | 7847 | 77 | 77 | 0.98% | 0.98% |  |
| B | 7847 | 7845 | 812 | 812 | 10.35% | 10.35% |  |
| C | 7846 | 7835 | 3435 | 3435 | 43.78% | 43.84% |  |
| D | 7846 | 7844 | 421 | 421 | 5.37% | 5.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 960723 | 4368.16 | 887 | 863 | 219.7 |
| A | 3 | 14 | 561482 | 2551.28 | 887 | 863 | 219.7 |
| A | 3 | 94 | 121159 | 547.45 | 887 | 863 | 219.7 |
| B | 6 | 255 | 3179594 | 20332.76 | 725 | 697 | 156.3 |
| B | 8 | 234 | 248571 | 1585.44 | 725 | 697 | 156.3 |
| B | 0 | 171 | 180638 | 1150.93 | 725 | 697 | 156.3 |
| C | 15 | 217 | 5822757 | 31663.88 | 664 | 658 | 183.9 |
| C | 15 | 164 | 3839783 | 20879.34 | 664 | 658 | 183.9 |
| C | 1 | 12 | 163462 | 885.42 | 664 | 658 | 183.9 |
| D | 2 | 249 | 1472747 | 6168.26 | 840 | 802 | 238.6 |
| D | 8 | 240 | 170475 | 711.02 | 840 | 802 | 238.6 |
| D | 4 | 206 | 96019 | 399.01 | 840 | 802 | 238.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

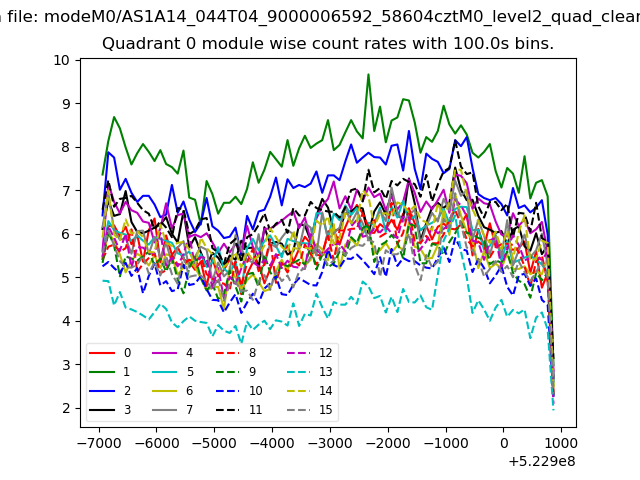

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

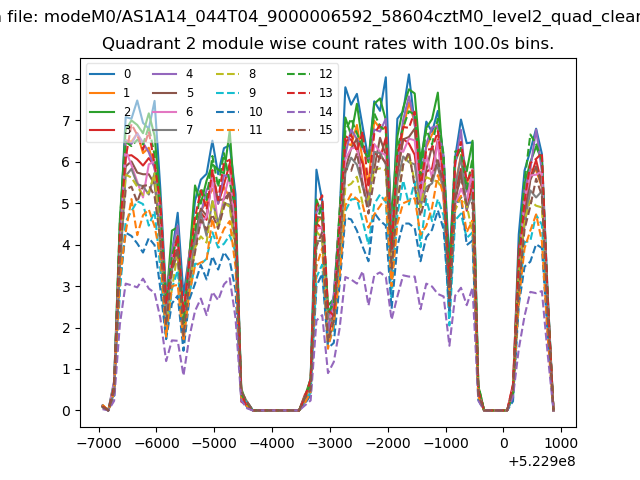

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

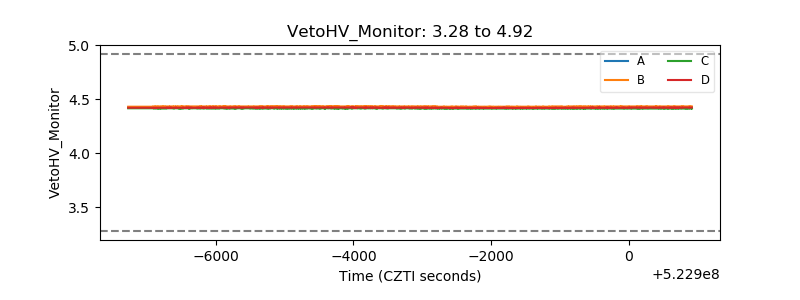

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

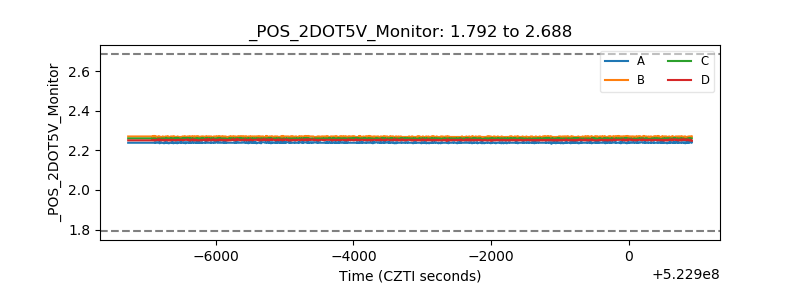

| +2.5 Volts monitor |  |

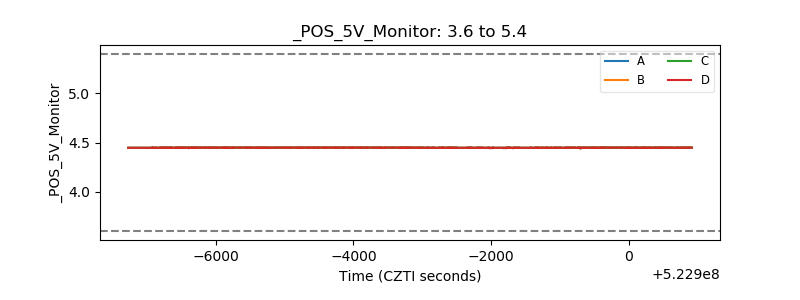

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

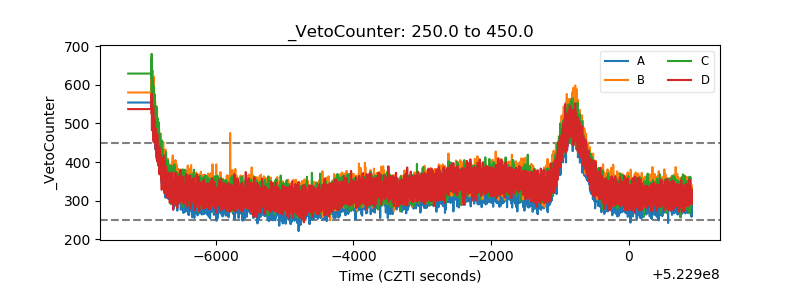

| Veto Counter |  |
