| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_044T04_9000006592_58605cztM0_level2.fits | modeM0/AS1A14_044T04_9000006592_58605cztM0_level2_quad_clean.evt |
| Size (bytes) | 968,581,440 | 93,006,720 |
| Size | 923.7 MB | 88.7 MB |
| Events in quadrant A | 6,038,676 | 699,420 |
| Events in quadrant B | 7,501,501 | 583,260 |
| Events in quadrant C | 16,746,312 | 277,931 |
| Events in quadrant D | 4,933,053 | 686,818 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23667 | 1 |
| B | 0 | 27996 | 0 |
| C | 0 | 55423 | 0 |
| D | 0 | 20588 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8177 | 837 | 10.236028% |
| B | 8178 | 2544 | 31.107850% |
| C | 8178 | 5382 | 65.810712% |
| D | 8178 | 221 | 2.702372% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8176 | 8176 | 677 | 677 | 8.28% | 8.28% |  |
| B | 8177 | 8177 | 1012 | 1012 | 12.38% | 12.38% |  |
| C | 8177 | 8177 | 5090 | 5090 | 62.25% | 62.25% |  |
| D | 8177 | 8177 | 197 | 197 | 2.41% | 2.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1885180 | 8411.91 | 902 | 876 | 224.0 |
| A | 12 | 114 | 140461 | 623.14 | 902 | 876 | 224.0 |
| A | 13 | 248 | 123690 | 548.27 | 902 | 876 | 224.0 |
| B | 6 | 255 | 4120445 | 26212.6 | 720 | 691 | 157.2 |
| B | 8 | 234 | 241988 | 1535.29 | 720 | 691 | 157.2 |
| B | 10 | 44 | 50347 | 315.94 | 720 | 691 | 157.2 |
| C | 15 | 164 | 9810148 | 65307.18 | 547 | 542 | 150.2 |
| C | 15 | 217 | 4385132 | 29190.29 | 547 | 542 | 150.2 |
| C | 13 | 3 | 186721 | 1239.48 | 547 | 542 | 150.2 |
| D | 2 | 249 | 956697 | 3757.27 | 894 | 855 | 254.4 |
| D | 2 | 31 | 98091 | 382.22 | 894 | 855 | 254.4 |
| D | 4 | 206 | 90212 | 351.25 | 894 | 855 | 254.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

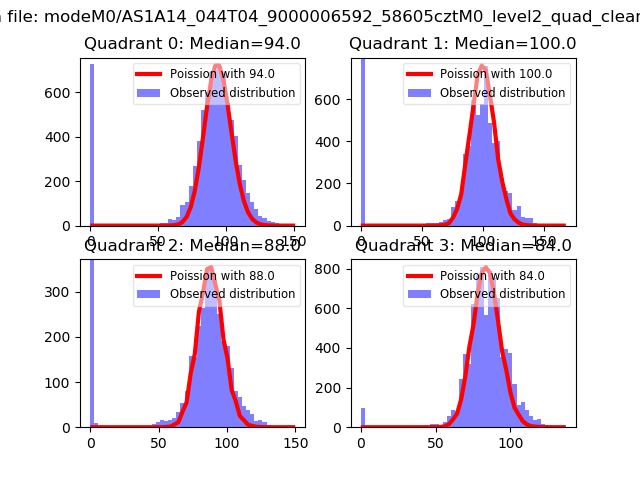

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

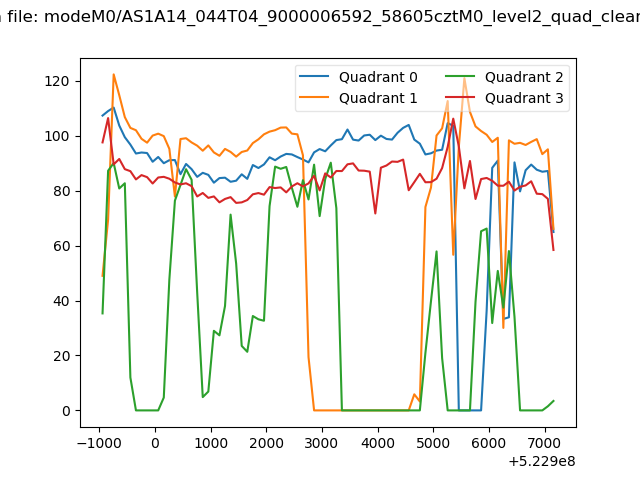

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

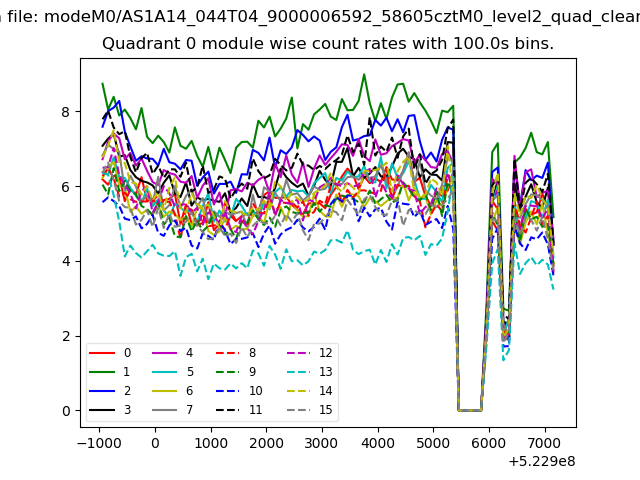

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

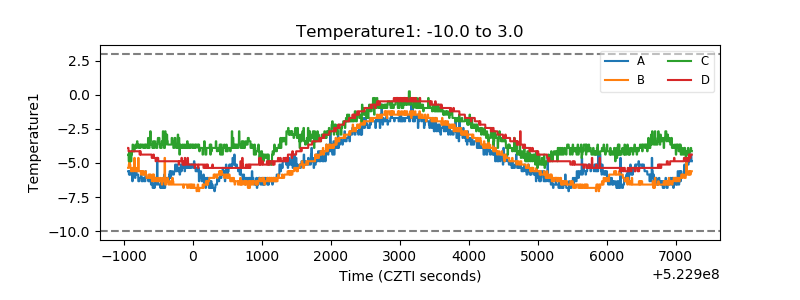

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

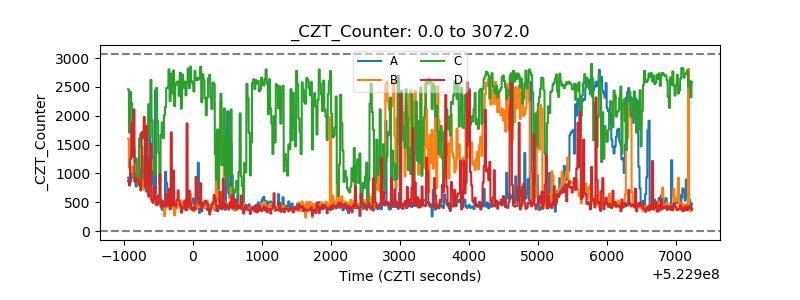

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

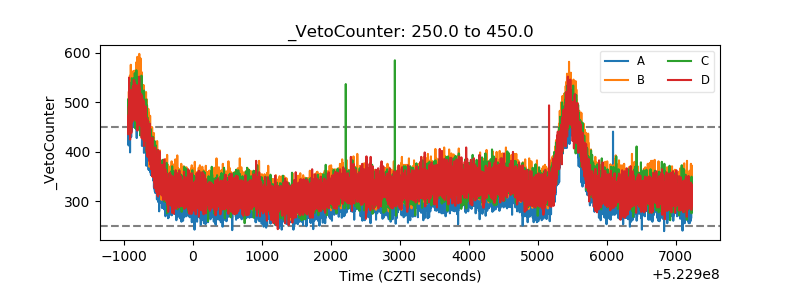

| Veto Counter |  |
