| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58609cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58609cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,034,880 | 93,637,440 |
| Size | 544.6 MB | 89.3 MB |
| Events in quadrant A | 4,553,586 | 596,052 |
| Events in quadrant B | 4,772,651 | 649,210 |
| Events in quadrant C | 7,849,746 | 517,255 |
| Events in quadrant D | 3,424,551 | 591,111 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18316 | 7 |
| B | 0 | 18806 | 9 |
| C | 0 | 28089 | 7 |
| D | 0 | 15144 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6915 | 626 | 9.052784% |
| B | 6918 | 556 | 8.037005% |
| C | 6918 | 1381 | 19.962417% |
| D | 6918 | 87 | 1.257589% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

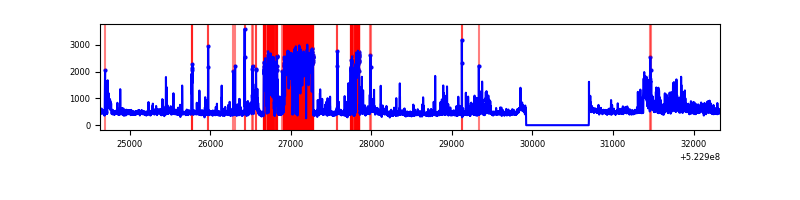

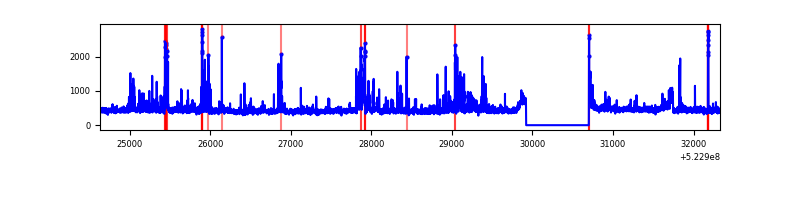

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7699 | 6918 | 538 | 538 | 6.99% | 7.78% |  |
| B | 7699 | 6920 | 452 | 452 | 5.87% | 6.53% |  |
| C | 7699 | 6920 | 1330 | 1330 | 17.27% | 19.22% |  |
| D | 7698 | 6919 | 36 | 36 | 0.47% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1546367 | 8747.78 | 724 | 705 | 176.7 |
| A | 13 | 248 | 70075 | 392.6 | 724 | 705 | 176.7 |
| A | 15 | 233 | 34403 | 190.72 | 724 | 705 | 176.7 |
| B | 8 | 234 | 1323945 | 8389.35 | 734 | 707 | 157.7 |
| B | 0 | 171 | 258730 | 1635.87 | 734 | 707 | 157.7 |
| B | 10 | 44 | 56818 | 355.74 | 734 | 707 | 157.7 |
| C | 15 | 164 | 2359283 | 12978.55 | 663 | 657 | 181.7 |
| C | 15 | 217 | 2023118 | 11128.77 | 663 | 657 | 181.7 |
| C | 13 | 3 | 405043 | 2225.17 | 663 | 657 | 181.7 |
| D | 2 | 249 | 230034 | 1100.23 | 738 | 705 | 208.4 |
| D | 2 | 120 | 87160 | 414.78 | 738 | 705 | 208.4 |
| D | 7 | 222 | 74042 | 351.84 | 738 | 705 | 208.4 |

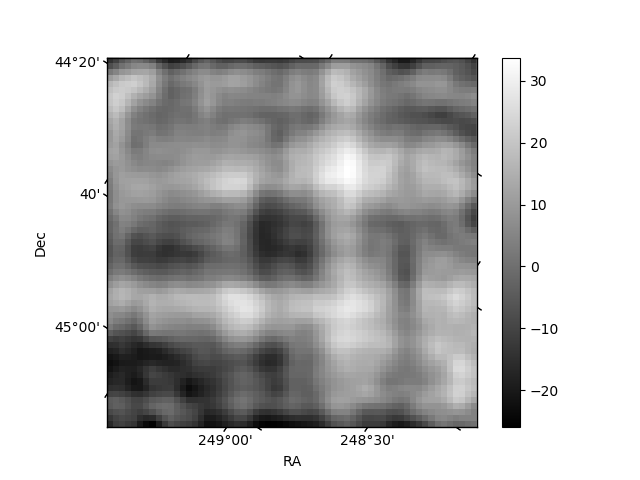

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

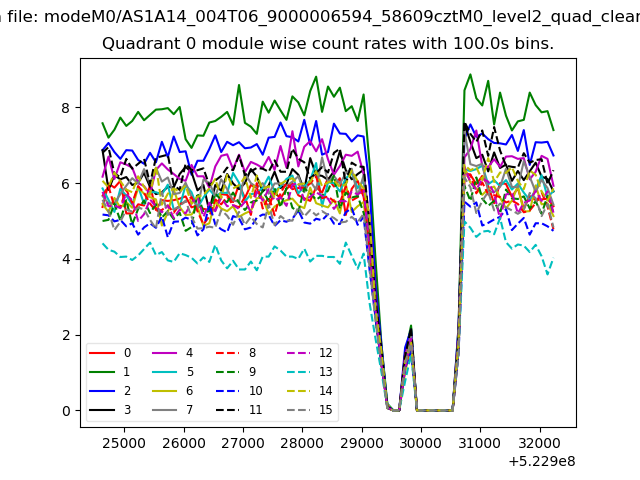

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

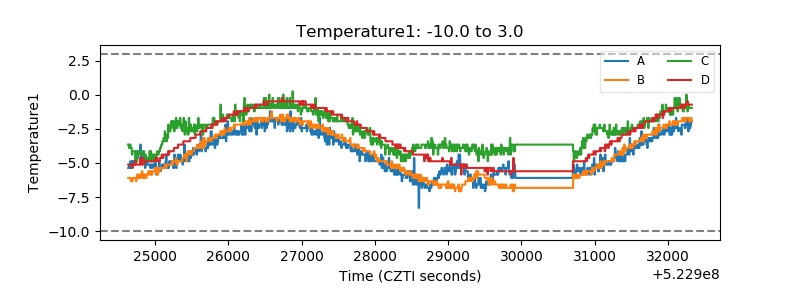

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

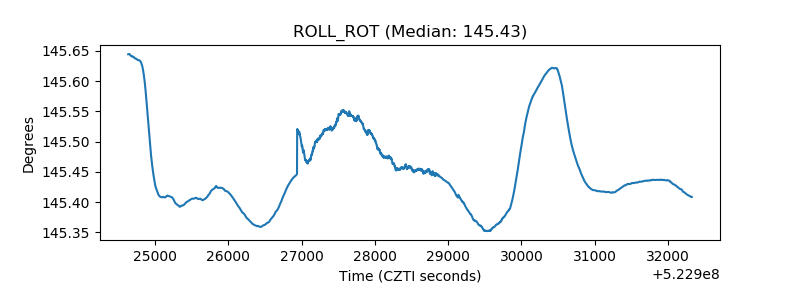

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

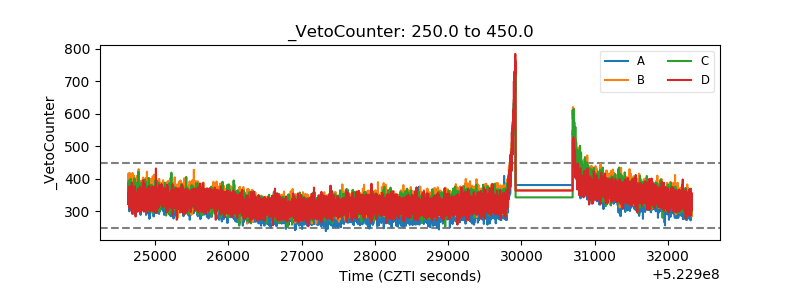

| Veto Counter |  |
