| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58612cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58612cztM0_level2_quad_clean.evt |
| Size (bytes) | 831,525,120 | 152,988,480 |
| Size | 793.0 MB | 145.9 MB |
| Events in quadrant A | 5,305,507 | 1,039,186 |
| Events in quadrant B | 6,962,388 | 1,044,148 |
| Events in quadrant C | 11,719,238 | 880,763 |
| Events in quadrant D | 5,970,489 | 932,284 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23115 | 2 |
| B | 0 | 27999 | 2 |
| C | 0 | 42229 | 2 |
| D | 0 | 25365 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10626 | 138 | 1.298701% |
| B | 10627 | 651 | 6.125906% |
| C | 10627 | 1494 | 14.058530% |
| D | 10627 | 271 | 2.550108% |

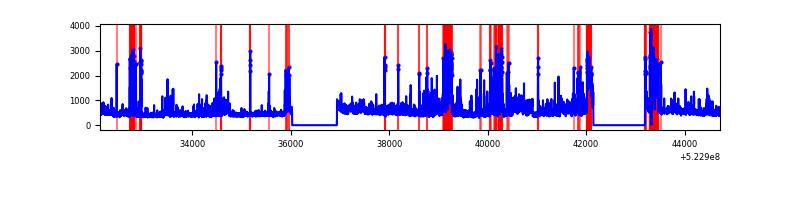

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12586 | 10628 | 19 | 19 | 0.15% | 0.18% |  |
| B | 12587 | 10629 | 348 | 348 | 2.76% | 3.27% |  |
| C | 12587 | 10629 | 1499 | 1499 | 11.91% | 14.10% |  |
| D | 12587 | 10629 | 141 | 141 | 1.12% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 343921 | 1189.8 | 1165 | 1134 | 288.1 |
| A | 4 | 249 | 180748 | 623.43 | 1165 | 1134 | 288.1 |
| A | 10 | 251 | 75765 | 259.04 | 1165 | 1134 | 288.1 |
| B | 6 | 255 | 904644 | 3820.72 | 1117 | 1077 | 236.5 |
| B | 8 | 234 | 644689 | 2721.51 | 1117 | 1077 | 236.5 |
| B | 2 | 249 | 363091 | 1530.77 | 1117 | 1077 | 236.5 |
| C | 15 | 217 | 5774092 | 19478.12 | 1085 | 1074 | 296.4 |
| C | 15 | 164 | 1006243 | 3391.43 | 1085 | 1074 | 296.4 |
| C | 12 | 252 | 366379 | 1232.54 | 1085 | 1074 | 296.4 |
| D | 2 | 249 | 540353 | 1668.0 | 1133 | 1082 | 323.3 |
| D | 7 | 222 | 380305 | 1172.96 | 1133 | 1082 | 323.3 |
| D | 8 | 240 | 223524 | 688.03 | 1133 | 1082 | 323.3 |

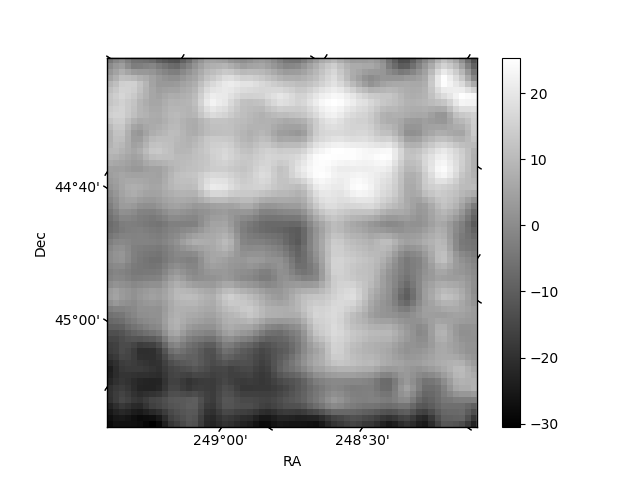

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

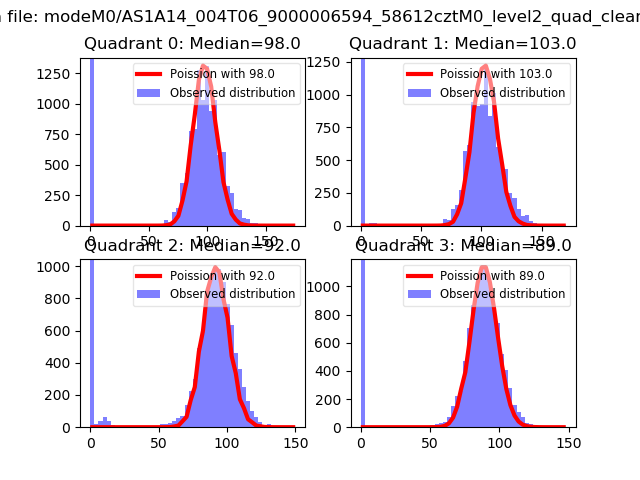

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

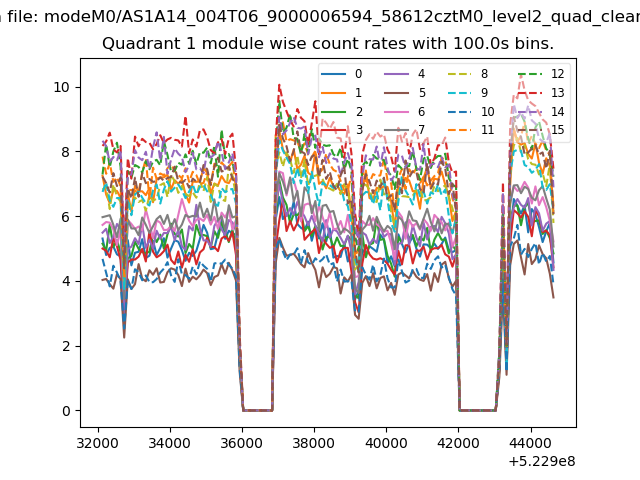

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

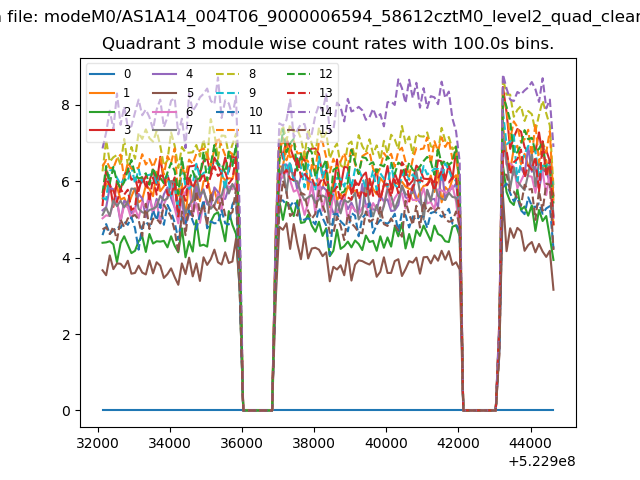

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

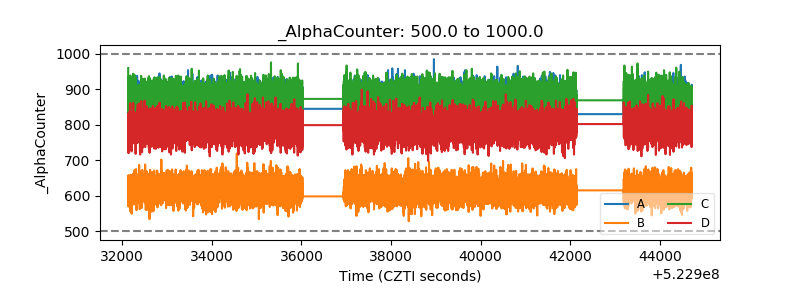

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

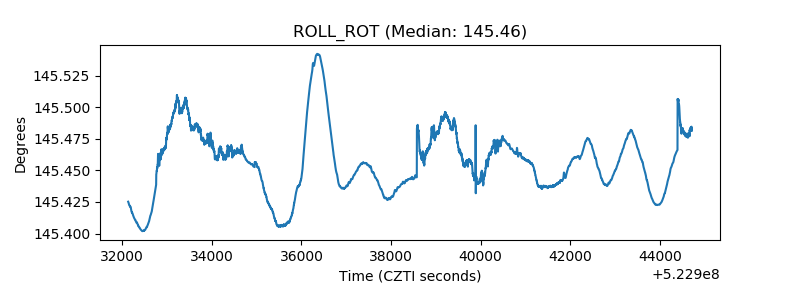

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

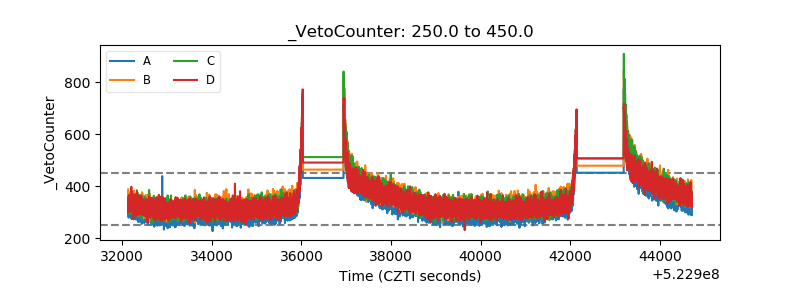

| Veto Counter |  |
