| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58613cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58613cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,488,320 | 84,798,720 |
| Size | 525.9 MB | 80.9 MB |
| Events in quadrant A | 3,338,397 | 591,907 |
| Events in quadrant B | 4,446,072 | 589,173 |
| Events in quadrant C | 7,968,917 | 452,304 |
| Events in quadrant D | 4,197,974 | 517,811 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14280 | 1 |
| B | 0 | 17348 | 1 |
| C | 0 | 27833 | 1 |
| D | 0 | 16618 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5965 | 214 | 3.587594% |
| B | 5965 | 583 | 9.773680% |
| C | 5966 | 1460 | 24.472008% |
| D | 5966 | 474 | 7.945022% |

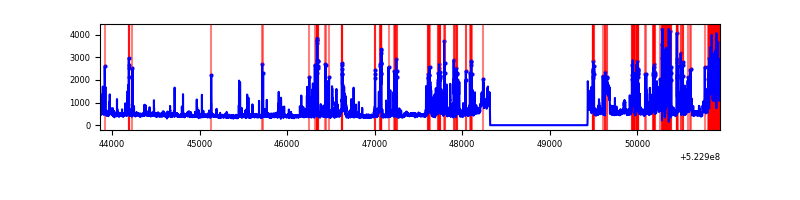

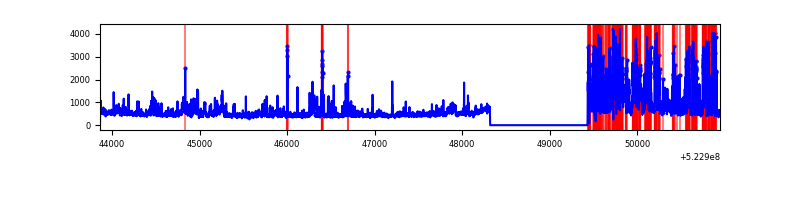

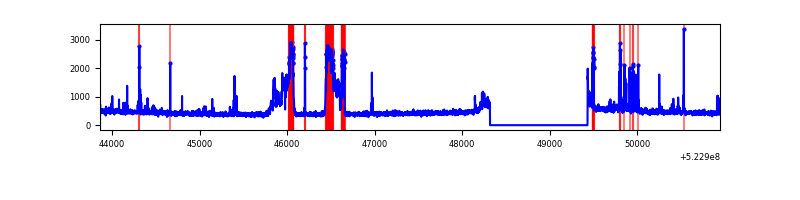

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7080 | 5966 | 158 | 158 | 2.23% | 2.65% |  |
| B | 7080 | 5966 | 349 | 349 | 4.93% | 5.85% |  |
| C | 7081 | 5967 | 1489 | 1489 | 21.03% | 24.95% |  |
| D | 7081 | 5967 | 285 | 285 | 4.02% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 592909 | 3644.67 | 658 | 641 | 162.5 |
| A | 10 | 251 | 82017 | 500.77 | 658 | 641 | 162.5 |
| A | 3 | 245 | 49505 | 300.7 | 658 | 641 | 162.5 |
| B | 4 | 171 | 1189935 | 8980.46 | 619 | 595 | 132.4 |
| B | 8 | 234 | 389667 | 2937.8 | 619 | 595 | 132.4 |
| B | 0 | 171 | 124466 | 935.32 | 619 | 595 | 132.4 |
| C | 15 | 217 | 5104943 | 32060.73 | 580 | 574 | 159.2 |
| C | 15 | 164 | 151837 | 950.09 | 580 | 574 | 159.2 |
| C | 1 | 12 | 124787 | 780.18 | 580 | 574 | 159.2 |
| D | 8 | 240 | 1034465 | 5744.49 | 630 | 601 | 180.0 |
| D | 2 | 249 | 256312 | 1420.82 | 630 | 601 | 180.0 |
| D | 7 | 222 | 182777 | 1012.23 | 630 | 601 | 180.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

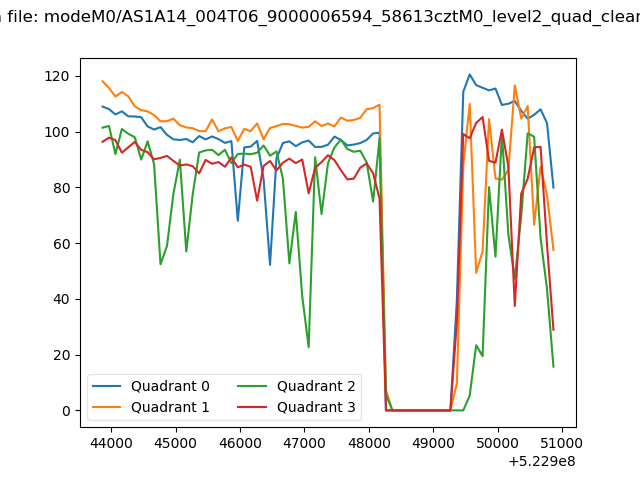

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

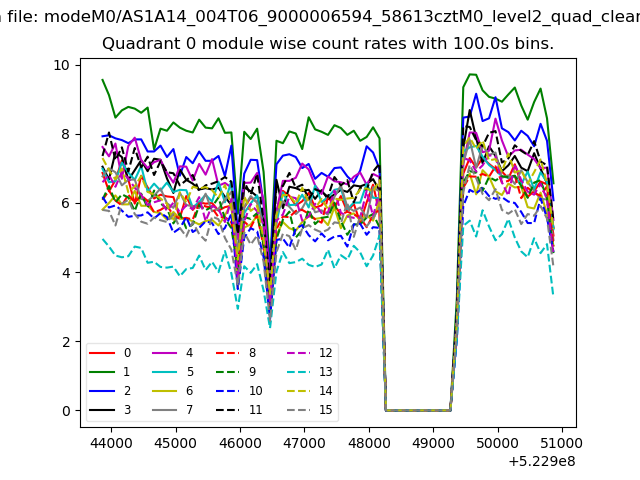

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

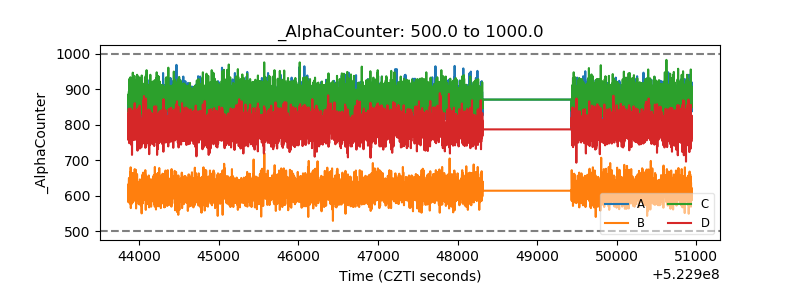

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

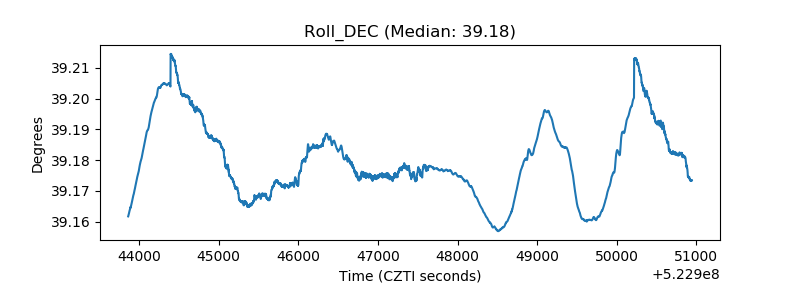

| _Roll_DEC |  |

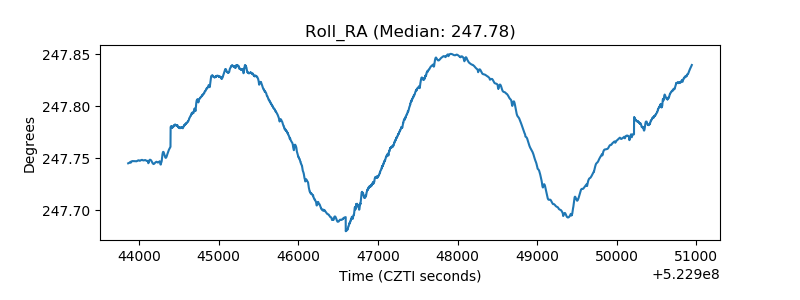

| _Roll_RA |  |
| Veto Counter |  |
