| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58615cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58615cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,217,280 | 82,114,560 |
| Size | 444.6 MB | 78.3 MB |
| Events in quadrant A | 2,557,968 | 568,389 |
| Events in quadrant B | 3,755,848 | 570,006 |
| Events in quadrant C | 5,860,674 | 468,807 |
| Events in quadrant D | 4,646,765 | 486,199 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12557 | 726 |
| B | 0 | 16581 | 1589 |
| C | 0 | 23845 | 2601 |
| D | 0 | 18789 | 1068 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 2 |
| B | 0 | 120 | 4 |
| C | 0 | 120 | 10 |
| D | 0 | 120 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 2 |
| B | 0 | 18 | 1 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5693 | 32 | 0.562094% |
| B | 5602 | 290 | 5.176723% |
| C | 5495 | 768 | 13.976342% |
| D | 5667 | 473 | 8.346568% |

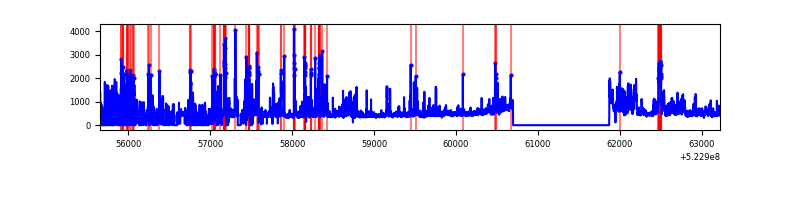

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 5902 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7569 | 5820 | 120 | 120 | 1.59% | 2.06% |  |
| C | 7569 | 5749 | 699 | 699 | 9.24% | 12.16% |  |
| D | 7569 | 5892 | 432 | 432 | 5.71% | 7.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 38627 | 245.3 | 629 | 613 | 155.0 |
| A | 10 | 251 | 25893 | 163.13 | 629 | 613 | 155.0 |
| A | 15 | 233 | 15053 | 93.18 | 629 | 613 | 155.0 |
| B | 6 | 255 | 431012 | 3330.53 | 602 | 580 | 129.2 |
| B | 8 | 234 | 249532 | 1926.3 | 602 | 580 | 129.2 |
| B | 4 | 171 | 191804 | 1479.62 | 602 | 580 | 129.2 |
| C | 15 | 217 | 2122042 | 13441.38 | 568 | 563 | 157.8 |
| C | 13 | 3 | 1176004 | 7447.42 | 568 | 563 | 157.8 |
| C | 15 | 164 | 134995 | 851.74 | 568 | 563 | 157.8 |
| D | 8 | 240 | 1032135 | 6068.95 | 595 | 568 | 170.0 |
| D | 2 | 249 | 644213 | 3786.71 | 595 | 568 | 170.0 |
| D | 2 | 31 | 280286 | 1645.65 | 595 | 568 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

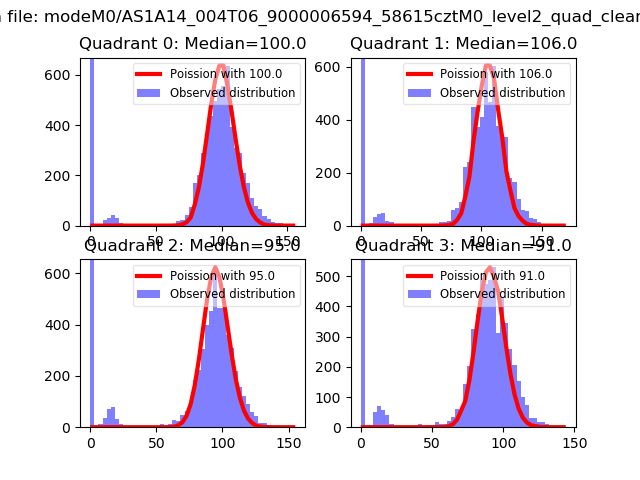

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

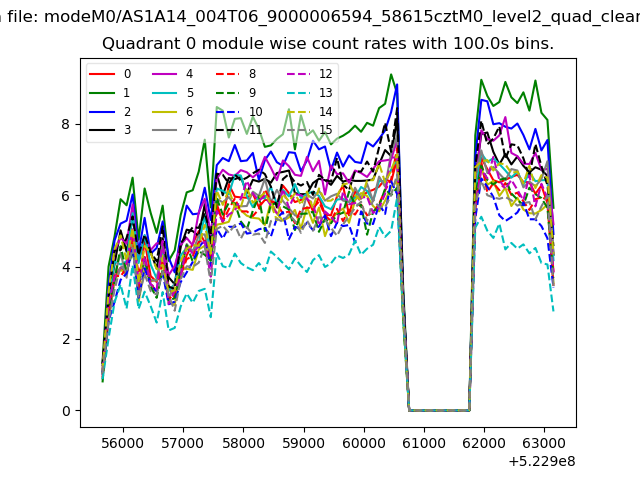

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

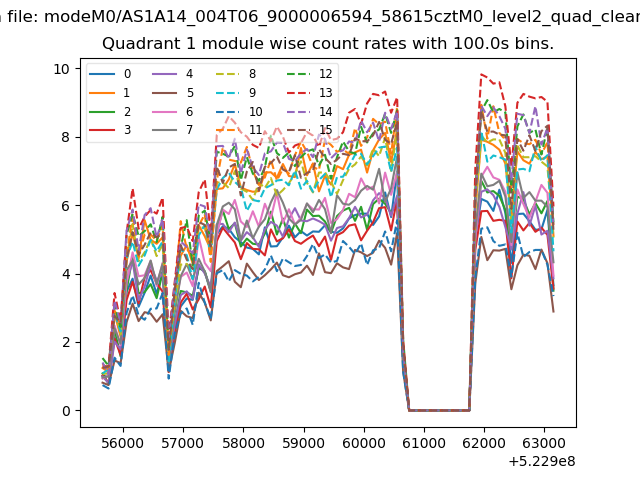

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

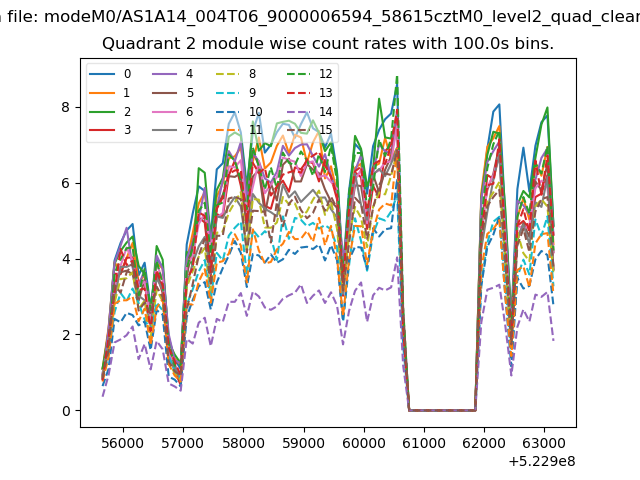

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

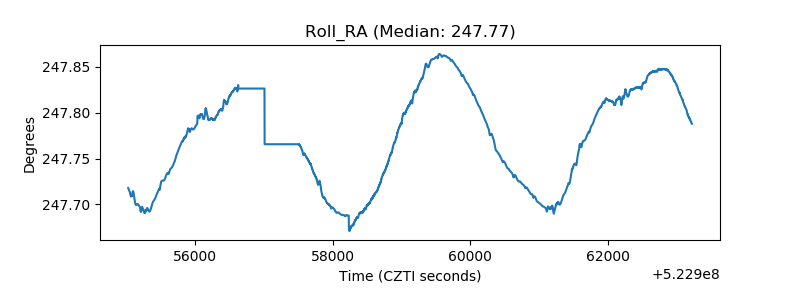

| _Roll_RA |  |

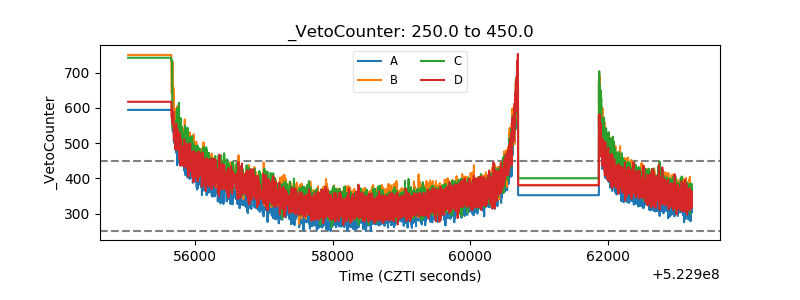

| Veto Counter |  |
