| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58617cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58617cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,136,640 | 94,029,120 |
| Size | 539.0 MB | 89.7 MB |
| Events in quadrant A | 4,462,452 | 606,213 |
| Events in quadrant B | 4,428,710 | 646,143 |
| Events in quadrant C | 7,626,857 | 529,380 |
| Events in quadrant D | 3,859,217 | 578,593 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18173 | 3 |
| B | 0 | 18069 | 2 |
| C | 0 | 27517 | 2 |
| D | 0 | 16324 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6987 | 351 | 5.023615% |
| B | 6987 | 361 | 5.166738% |
| C | 6987 | 1117 | 15.986833% |
| D | 6987 | 115 | 1.645914% |

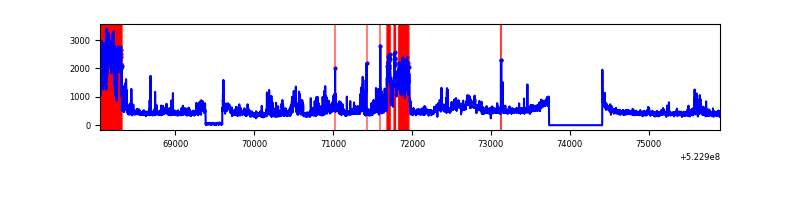

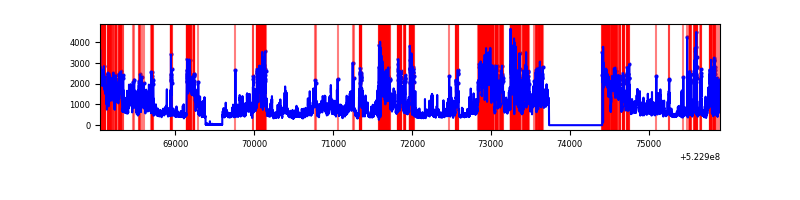

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7857 | 7183 | 290 | 290 | 3.69% | 4.04% |  |
| B | 7857 | 7183 | 167 | 167 | 2.13% | 2.32% |  |
| C | 7857 | 7183 | 926 | 926 | 11.79% | 12.89% |  |
| D | 7857 | 7183 | 76 | 76 | 0.97% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1254839 | 6797.31 | 741 | 720 | 184.5 |
| A | 12 | 114 | 198833 | 1073.77 | 741 | 720 | 184.5 |
| A | 10 | 251 | 74344 | 399.04 | 741 | 720 | 184.5 |
| B | 6 | 255 | 553152 | 3521.87 | 734 | 707 | 156.9 |
| B | 8 | 234 | 418592 | 2664.04 | 734 | 707 | 156.9 |
| B | 4 | 171 | 122911 | 779.06 | 734 | 707 | 156.9 |
| C | 15 | 217 | 3206830 | 16787.42 | 692 | 683 | 191.0 |
| C | 13 | 3 | 1122100 | 5871.75 | 692 | 683 | 191.0 |
| C | 4 | 5 | 220773 | 1152.39 | 692 | 683 | 191.0 |
| D | 2 | 62 | 212320 | 1006.09 | 735 | 701 | 210.3 |
| D | 7 | 222 | 151709 | 717.93 | 735 | 701 | 210.3 |
| D | 8 | 240 | 138007 | 652.79 | 735 | 701 | 210.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

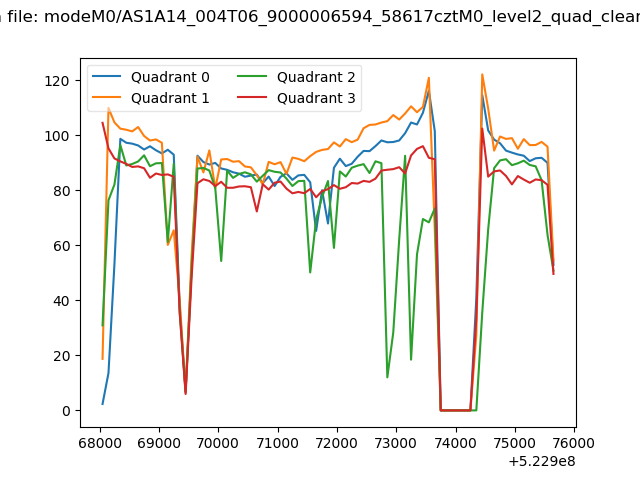

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

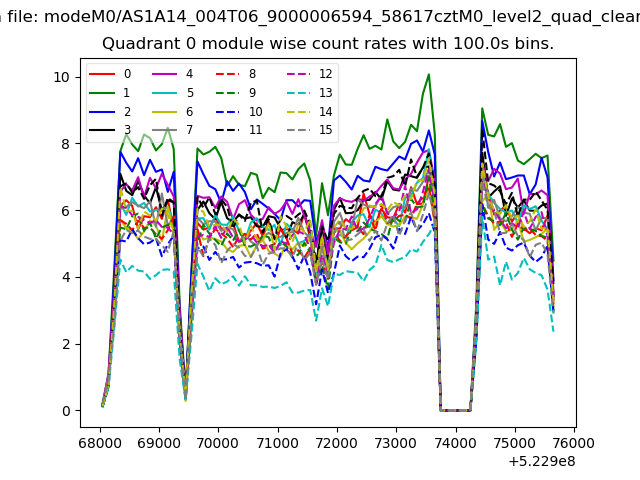

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

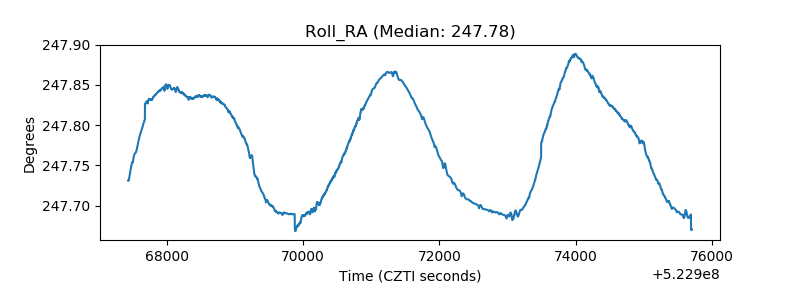

| _Roll_RA |  |

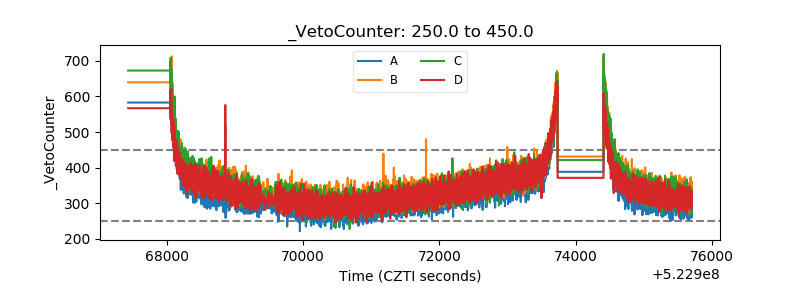

| Veto Counter |  |
