| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58620cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58620cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,057,280 | 106,185,600 |
| Size | 545.6 MB | 101.3 MB |
| Events in quadrant A | 3,649,126 | 698,998 |
| Events in quadrant B | 4,459,010 | 738,978 |
| Events in quadrant C | 7,896,253 | 620,943 |
| Events in quadrant D | 4,591,754 | 635,959 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16237 | 0 |
| B | 0 | 18445 | 0 |
| C | 0 | 28638 | 0 |
| D | 0 | 18924 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7473 | 42 | 0.562023% |
| B | 7473 | 253 | 3.385521% |
| C | 7472 | 884 | 11.830835% |
| D | 7472 | 174 | 2.328694% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7473 | 7473 | 9 | 9 | 0.12% | 0.12% |  |
| B | 7473 | 7473 | 81 | 81 | 1.08% | 1.08% |  |
| C | 7472 | 7472 | 791 | 791 | 10.59% | 10.59% |  |
| D | 7472 | 7472 | 126 | 126 | 1.69% | 1.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 259155 | 1296.42 | 814 | 793 | 199.3 |
| A | 10 | 251 | 116647 | 581.34 | 814 | 793 | 199.3 |
| A | 12 | 114 | 69969 | 347.11 | 814 | 793 | 199.3 |
| B | 6 | 255 | 289961 | 1680.1 | 804 | 775 | 172.1 |
| B | 4 | 171 | 205645 | 1190.24 | 804 | 775 | 172.1 |
| B | 8 | 128 | 185405 | 1072.65 | 804 | 775 | 172.1 |
| C | 15 | 217 | 3224198 | 15407.63 | 768 | 762 | 209.2 |
| C | 13 | 3 | 709278 | 3386.62 | 768 | 762 | 209.2 |
| C | 15 | 164 | 487925 | 2328.58 | 768 | 762 | 209.2 |
| D | 8 | 240 | 384432 | 1742.9 | 786 | 753 | 220.1 |
| D | 3 | 12 | 315808 | 1431.17 | 786 | 753 | 220.1 |
| D | 2 | 249 | 270331 | 1224.58 | 786 | 753 | 220.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

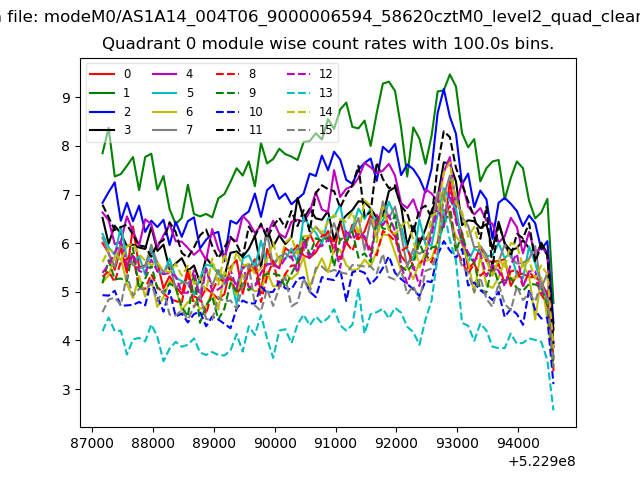

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

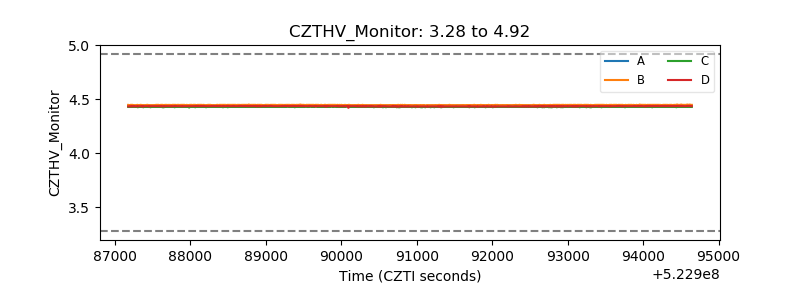

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

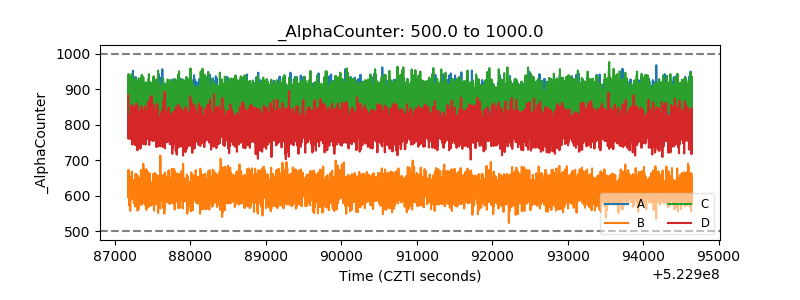

| Alpha Counter |  |
| _CPM_Rate |  |

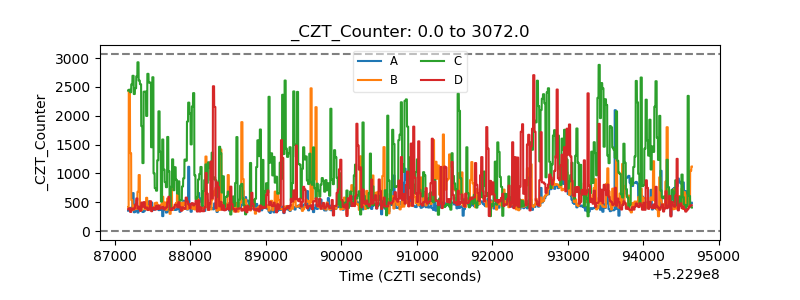

| CZT Counter |  |

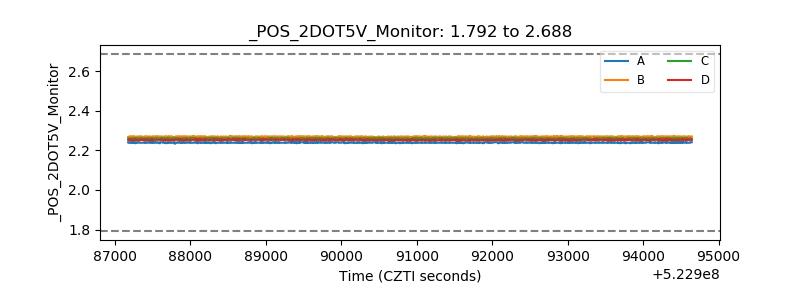

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

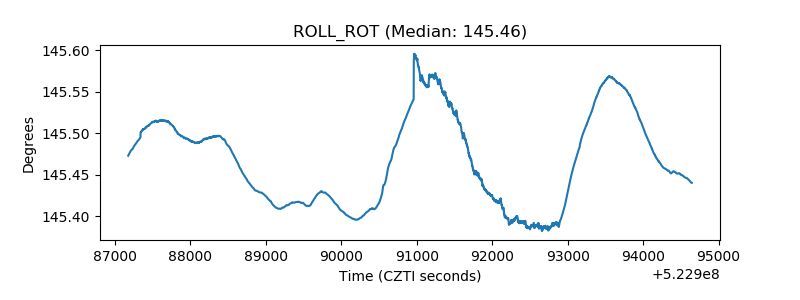

| _ROLL_ROT |  |
| _Roll_DEC |  |

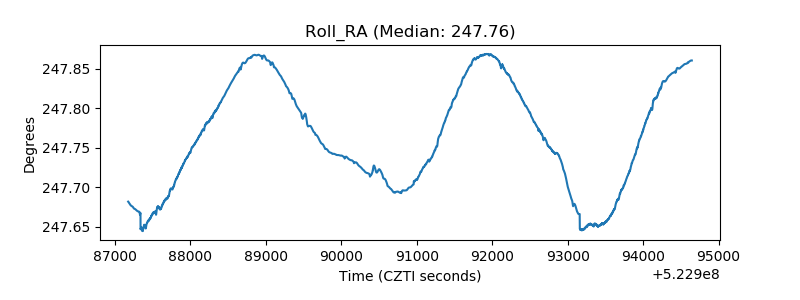

| _Roll_RA |  |

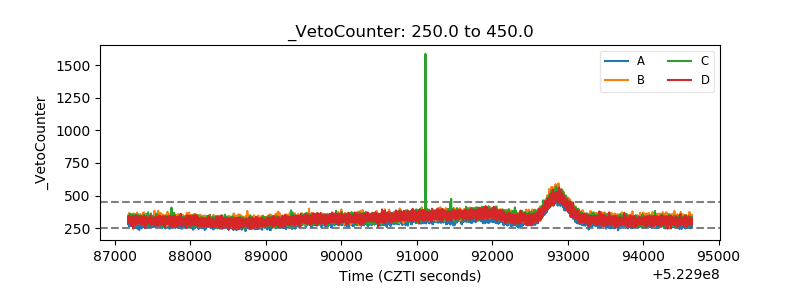

| Veto Counter |  |
