| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58624cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58624cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,115,200 | 99,910,080 |
| Size | 497.9 MB | 95.3 MB |
| Events in quadrant A | 3,375,353 | 665,793 |
| Events in quadrant B | 3,695,968 | 712,618 |
| Events in quadrant C | 7,722,228 | 563,553 |
| Events in quadrant D | 3,991,580 | 596,589 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14928 | 2 |
| B | 0 | 15607 | 2 |
| C | 0 | 27704 | 2 |
| D | 0 | 16656 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6978 | 117 | 1.676698% |
| B | 6978 | 168 | 2.407567% |
| C | 6978 | 1116 | 15.993121% |
| D | 6978 | 189 | 2.708512% |

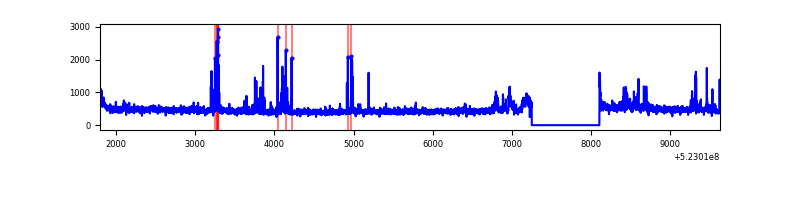

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7833 | 6979 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7833 | 6979 | 27 | 27 | 0.34% | 0.39% |  |
| C | 7833 | 6979 | 911 | 911 | 11.63% | 13.05% |  |
| D | 7833 | 6979 | 106 | 106 | 1.35% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 117086 | 605.92 | 779 | 757 | 192.0 |
| A | 10 | 251 | 113423 | 586.84 | 779 | 757 | 192.0 |
| A | 3 | 14 | 52476 | 269.39 | 779 | 757 | 192.0 |
| B | 8 | 128 | 195544 | 1187.34 | 765 | 737 | 164.1 |
| B | 4 | 171 | 127659 | 773.58 | 765 | 737 | 164.1 |
| B | 8 | 234 | 94868 | 573.72 | 765 | 737 | 164.1 |
| C | 15 | 217 | 2646063 | 13680.27 | 711 | 703 | 193.4 |
| C | 13 | 3 | 1326962 | 6858.64 | 711 | 703 | 193.4 |
| C | 12 | 252 | 368983 | 1904.53 | 711 | 703 | 193.4 |
| D | 8 | 240 | 287523 | 1348.43 | 751 | 716 | 212.7 |
| D | 12 | 128 | 178094 | 833.95 | 751 | 716 | 212.7 |
| D | 3 | 12 | 104868 | 489.67 | 751 | 716 | 212.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

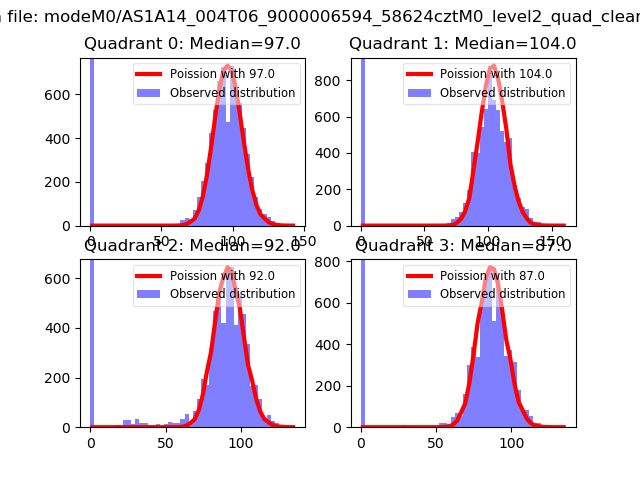

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

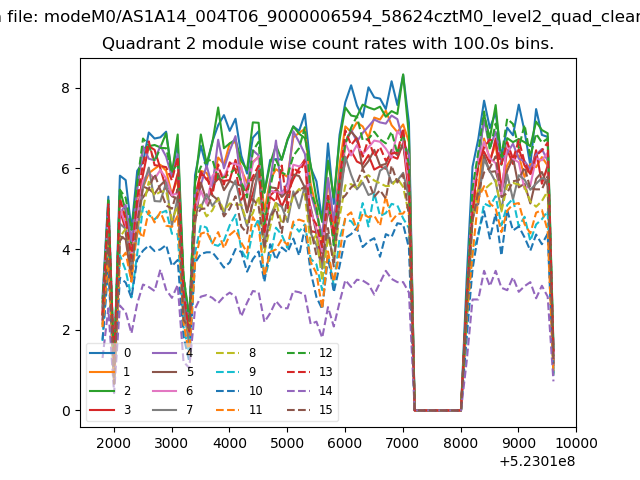

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

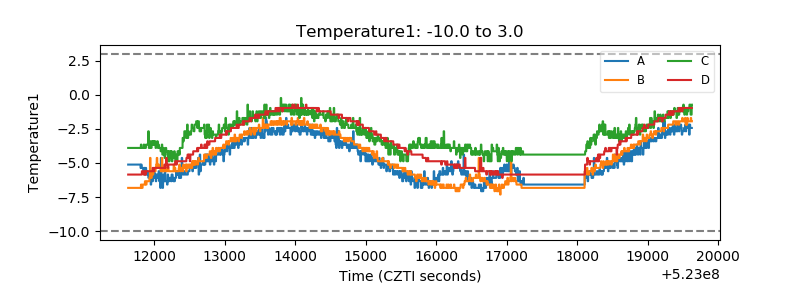

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

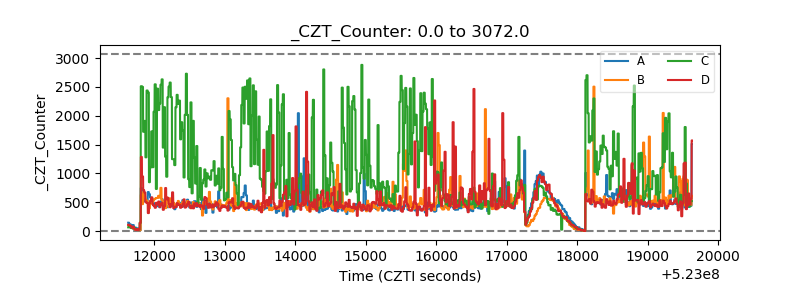

| CZT Counter |  |

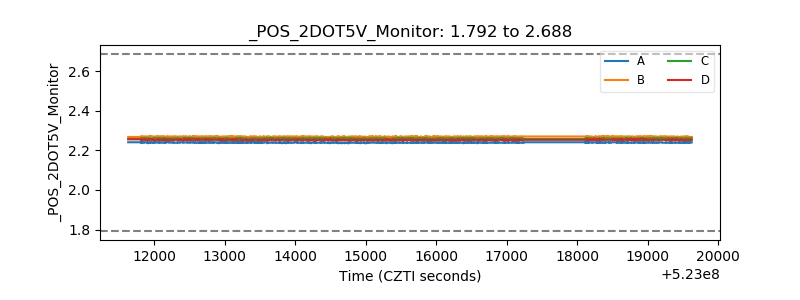

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

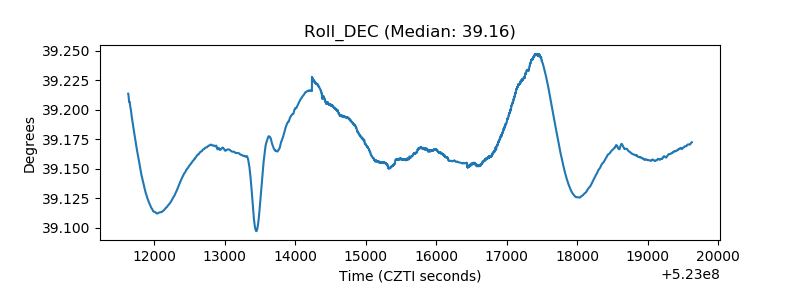

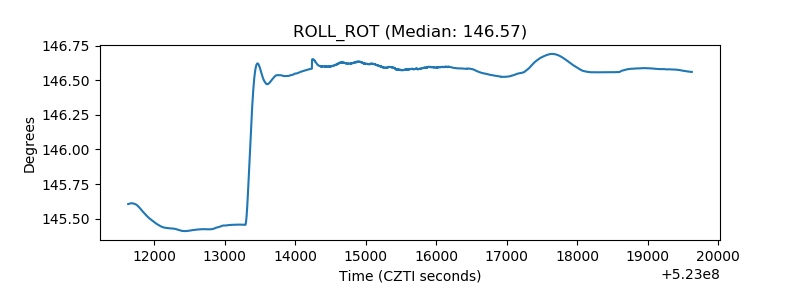

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
