| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58626cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58626cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,875,840 | 93,300,480 |
| Size | 485.3 MB | 89.0 MB |
| Events in quadrant A | 3,166,462 | 634,687 |
| Events in quadrant B | 3,825,718 | 663,259 |
| Events in quadrant C | 7,175,958 | 519,544 |
| Events in quadrant D | 4,165,925 | 556,012 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14010 | 1 |
| B | 0 | 15816 | 1 |
| C | 0 | 25816 | 1 |
| D | 0 | 16883 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 130 | 2.008342% |
| B | 6472 | 263 | 4.063659% |
| C | 6472 | 1114 | 17.212608% |
| D | 6473 | 317 | 4.897266% |

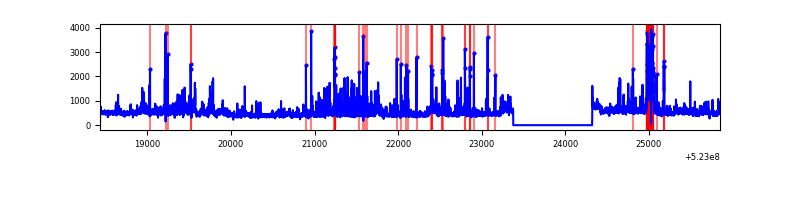

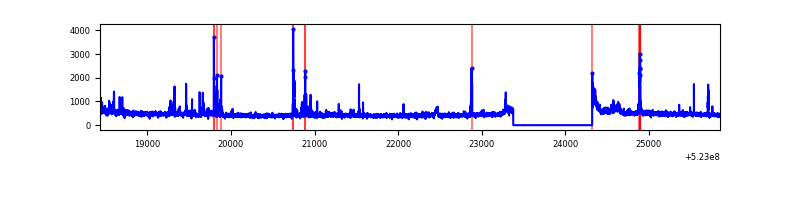

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6473 | 16 | 16 | 0.22% | 0.25% |  |
| B | 7417 | 6473 | 94 | 94 | 1.27% | 1.45% |  |
| C | 7417 | 6473 | 962 | 962 | 12.97% | 14.86% |  |
| D | 7418 | 6474 | 188 | 188 | 2.53% | 2.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 124728 | 692.32 | 725 | 707 | 179.1 |
| A | 12 | 114 | 108717 | 602.94 | 725 | 707 | 179.1 |
| A | 3 | 14 | 36569 | 200.19 | 725 | 707 | 179.1 |
| B | 6 | 255 | 416911 | 2742.79 | 705 | 679 | 151.8 |
| B | 8 | 234 | 202496 | 1329.89 | 705 | 679 | 151.8 |
| B | 8 | 128 | 109091 | 714.39 | 705 | 679 | 151.8 |
| C | 15 | 217 | 2662635 | 14891.31 | 652 | 646 | 178.8 |
| C | 12 | 254 | 852051 | 4762.8 | 652 | 646 | 178.8 |
| C | 13 | 3 | 482524 | 2695.65 | 652 | 646 | 178.8 |
| D | 2 | 249 | 553282 | 2834.05 | 693 | 662 | 195.0 |
| D | 8 | 240 | 412178 | 2110.42 | 693 | 662 | 195.0 |
| D | 12 | 128 | 163840 | 836.84 | 693 | 662 | 195.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

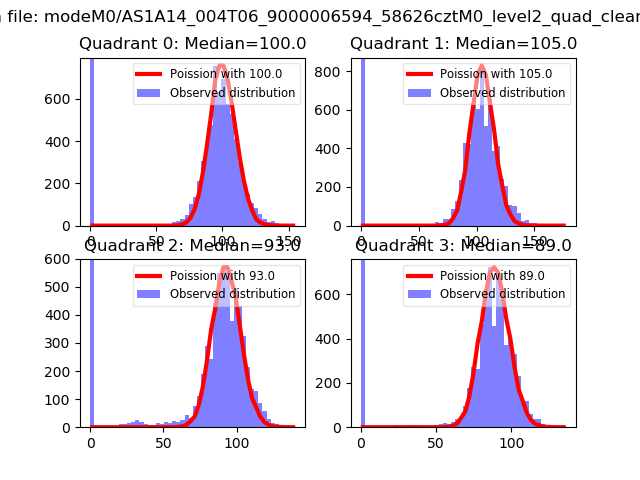

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

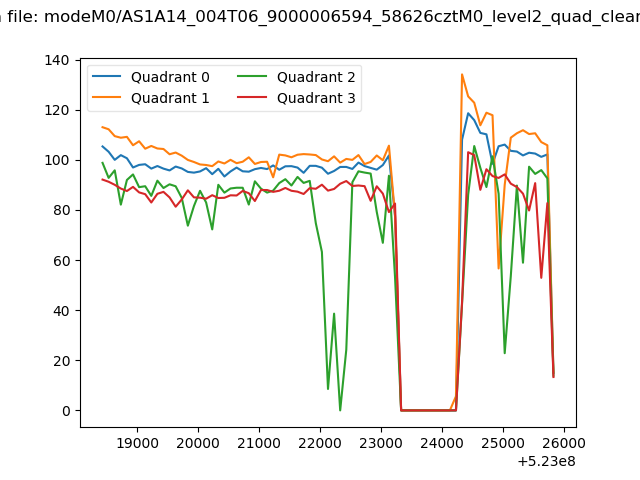

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

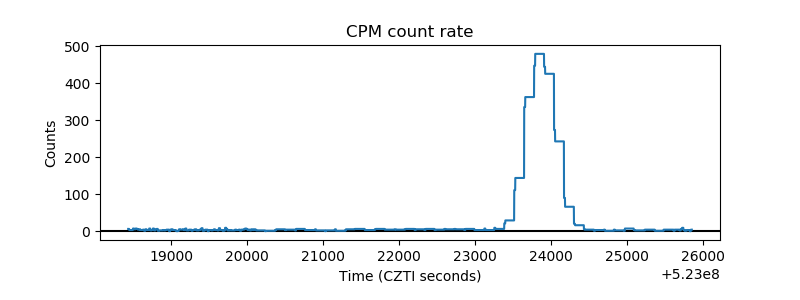

| _CPM_Rate |  |

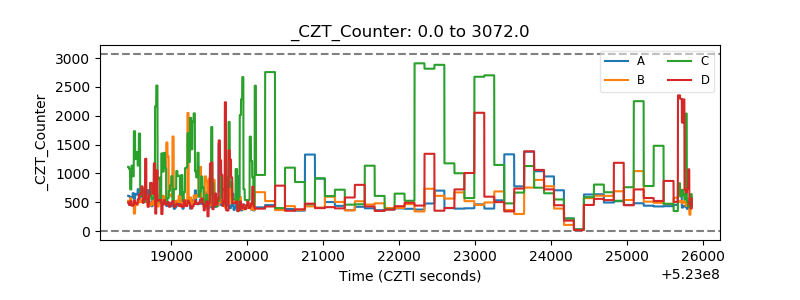

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

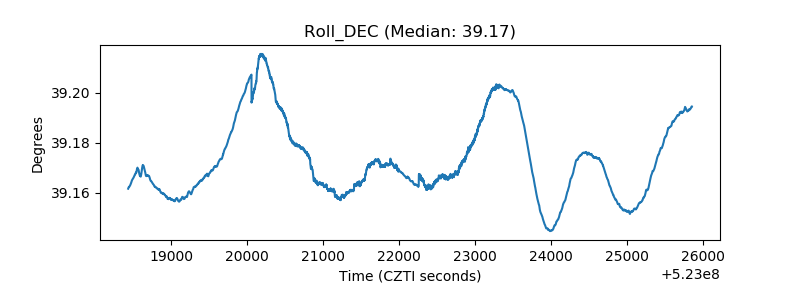

| _Roll_DEC |  |
| _Roll_RA |  |

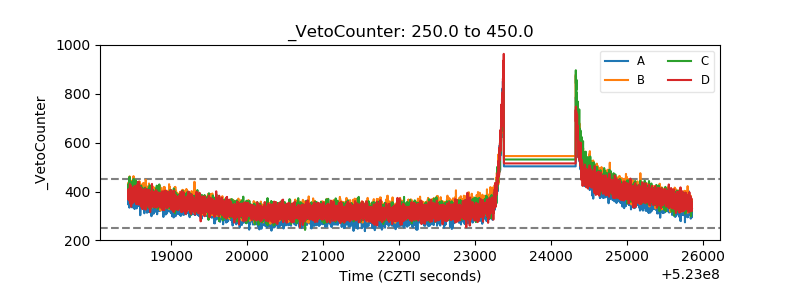

| Veto Counter |  |
