| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58627cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58627cztM0_level2_quad_clean.evt |
| Size (bytes) | 559,581,120 | 86,126,400 |
| Size | 533.7 MB | 82.1 MB |
| Events in quadrant A | 2,879,438 | 611,748 |
| Events in quadrant B | 4,609,024 | 611,777 |
| Events in quadrant C | 8,458,529 | 435,805 |
| Events in quadrant D | 4,297,207 | 525,816 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12835 | 1 |
| B | 0 | 17895 | 1 |
| C | 0 | 29291 | 1 |
| D | 0 | 17082 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6049 | 67 | 1.107621% |
| B | 6050 | 496 | 8.198347% |
| C | 6050 | 1806 | 29.851240% |
| D | 6050 | 466 | 7.702479% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 6050 | 15 | 15 | 0.21% | 0.25% |  |
| B | 7140 | 6051 | 287 | 287 | 4.02% | 4.74% |  |
| C | 7140 | 6051 | 1573 | 1573 | 22.03% | 26.00% |  |
| D | 7140 | 6051 | 312 | 312 | 4.37% | 5.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 87868 | 518.39 | 680 | 661 | 168.2 |
| A | 6 | 195 | 38086 | 222.47 | 680 | 661 | 168.2 |
| A | 8 | 43 | 30431 | 176.96 | 680 | 661 | 168.2 |
| B | 4 | 171 | 602569 | 4346.92 | 649 | 625 | 138.5 |
| B | 6 | 255 | 535827 | 3864.94 | 649 | 625 | 138.5 |
| B | 8 | 234 | 429032 | 3093.73 | 649 | 625 | 138.5 |
| C | 13 | 3 | 2676692 | 17054.84 | 571 | 565 | 156.9 |
| C | 15 | 217 | 2052245 | 13075.27 | 571 | 565 | 156.9 |
| C | 12 | 254 | 1084959 | 6910.8 | 571 | 565 | 156.9 |
| D | 2 | 249 | 762243 | 4220.12 | 644 | 616 | 180.5 |
| D | 8 | 160 | 538665 | 2981.29 | 644 | 616 | 180.5 |
| D | 8 | 240 | 272587 | 1506.97 | 644 | 616 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

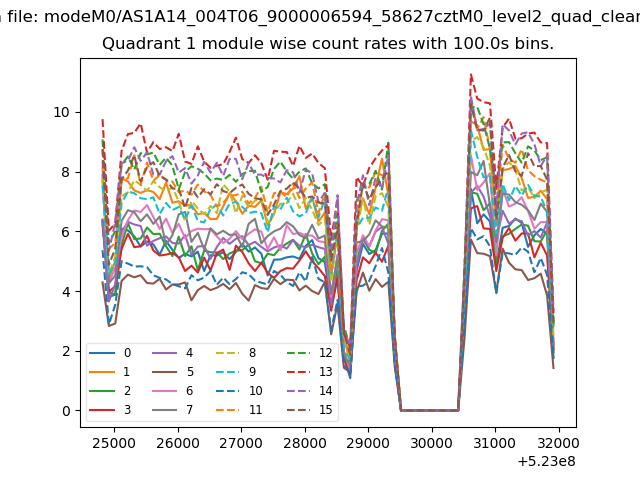

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

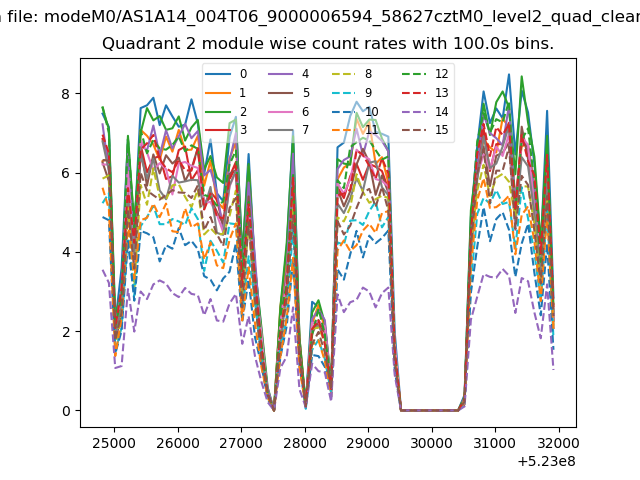

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

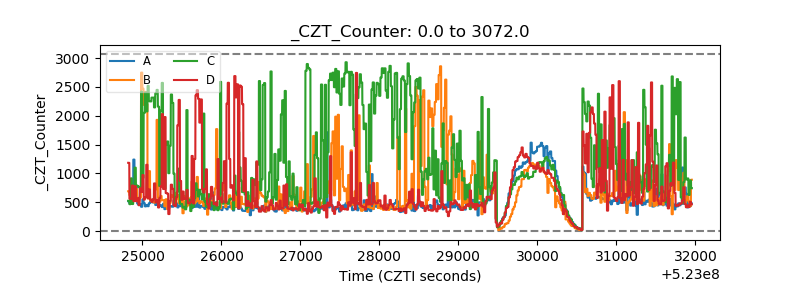

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

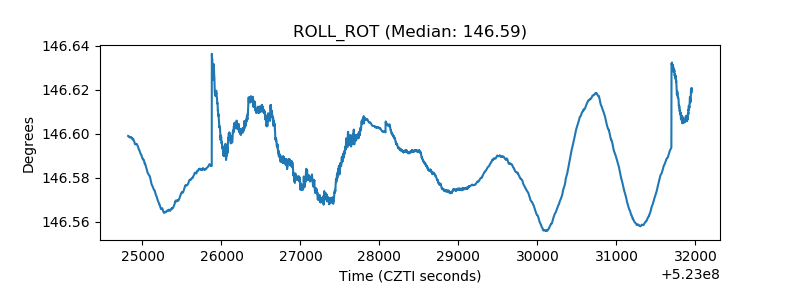

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
