| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58630cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58630cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,769,280 | 90,959,040 |
| Size | 510.9 MB | 86.7 MB |
| Events in quadrant A | 2,916,218 | 623,206 |
| Events in quadrant B | 4,579,235 | 624,814 |
| Events in quadrant C | 6,012,472 | 553,437 |
| Events in quadrant D | 5,838,439 | 515,390 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13158 | 1 |
| B | 0 | 17998 | 1 |
| C | 0 | 22260 | 1 |
| D | 0 | 21666 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6263 | 56 | 0.894140% |
| B | 6263 | 521 | 8.318697% |
| C | 6263 | 733 | 11.703656% |
| D | 6263 | 750 | 11.975092% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

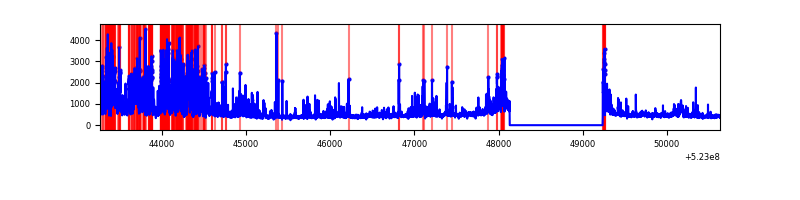

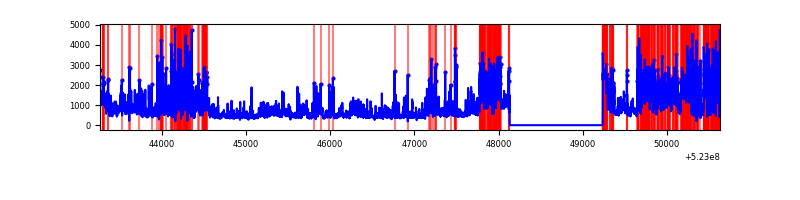

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 6264 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7368 | 6264 | 301 | 301 | 4.09% | 4.81% |  |
| C | 7367 | 6263 | 547 | 547 | 7.43% | 8.73% |  |
| D | 7368 | 6264 | 599 | 599 | 8.13% | 9.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 118564 | 686.13 | 692 | 673 | 171.8 |
| A | 10 | 17 | 59330 | 341.39 | 692 | 673 | 171.8 |
| A | 13 | 254 | 10659 | 58.12 | 692 | 673 | 171.8 |
| B | 4 | 171 | 1368165 | 9612.75 | 663 | 640 | 142.3 |
| B | 8 | 128 | 180456 | 1263.98 | 663 | 640 | 142.3 |
| B | 6 | 255 | 116444 | 814.02 | 663 | 640 | 142.3 |
| C | 15 | 217 | 1304809 | 7330.3 | 647 | 638 | 177.9 |
| C | 12 | 254 | 801648 | 4502.2 | 647 | 638 | 177.9 |
| C | 13 | 3 | 779448 | 4377.42 | 647 | 638 | 177.9 |
| D | 8 | 240 | 1412170 | 7827.25 | 639 | 612 | 180.3 |
| D | 2 | 249 | 1074400 | 5954.28 | 639 | 612 | 180.3 |
| D | 12 | 128 | 324415 | 1795.52 | 639 | 612 | 180.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

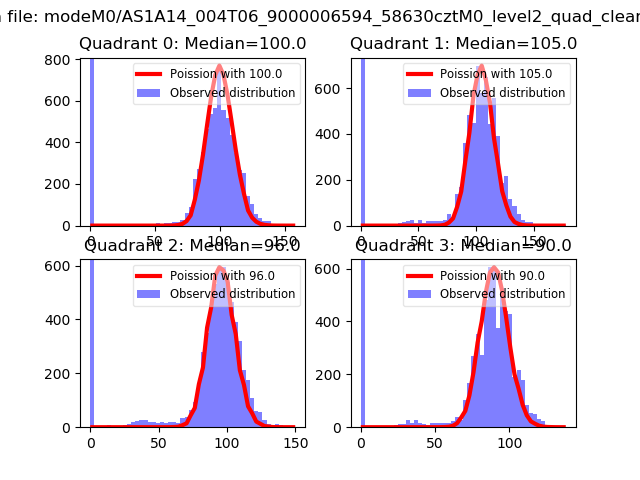

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

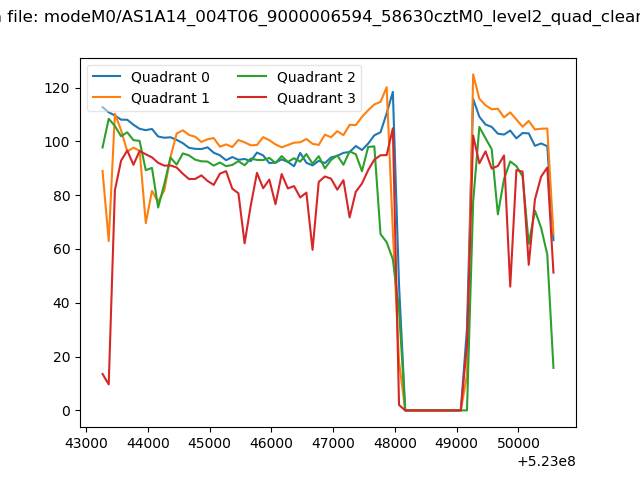

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

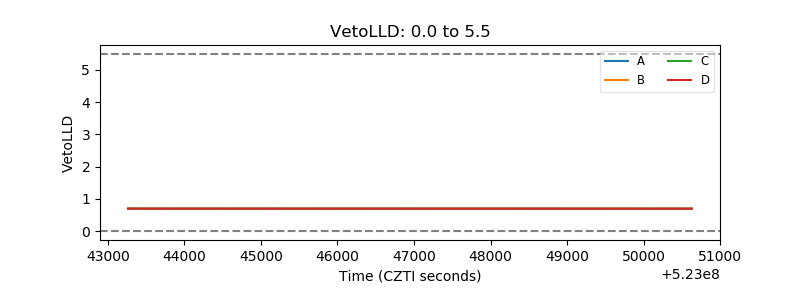

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

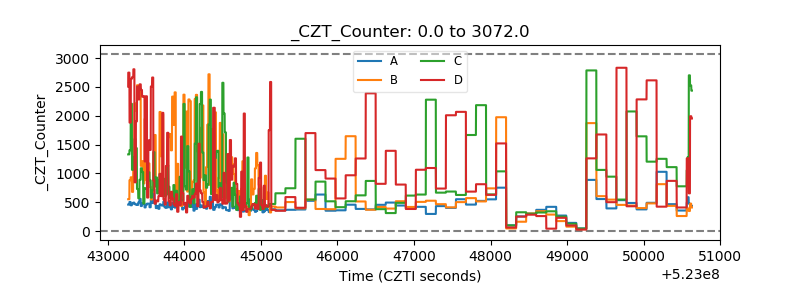

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

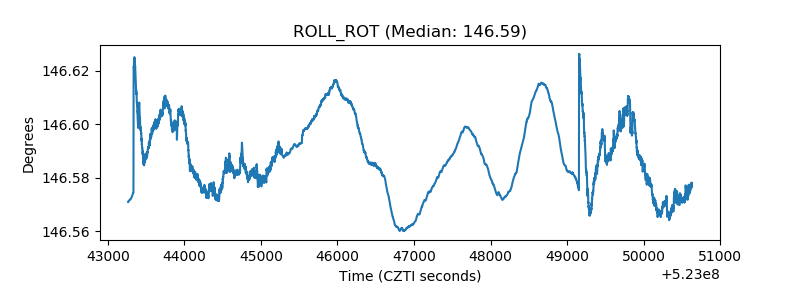

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
