| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58633cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58633cztM0_level2_quad_clean.evt |
| Size (bytes) | 593,084,160 | 112,481,280 |
| Size | 565.6 MB | 107.3 MB |
| Events in quadrant A | 3,856,501 | 754,926 |
| Events in quadrant B | 3,815,223 | 803,591 |
| Events in quadrant C | 7,726,224 | 649,334 |
| Events in quadrant D | 5,944,737 | 650,000 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17067 | 1 |
| B | 0 | 16977 | 1 |
| C | 0 | 28439 | 1 |
| D | 0 | 23362 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7881 | 36 | 0.456795% |
| B | 7880 | 90 | 1.142132% |
| C | 7880 | 1139 | 14.454315% |
| D | 7880 | 574 | 7.284264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

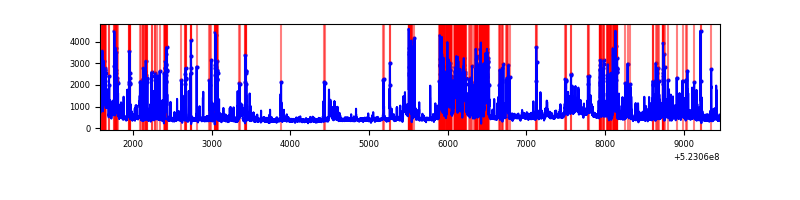

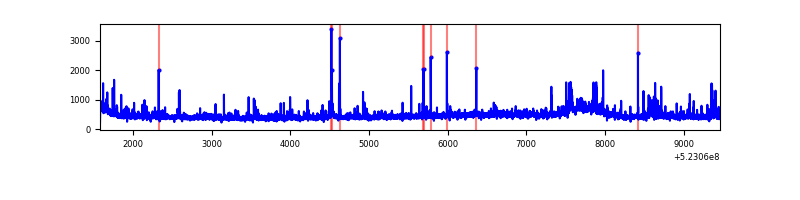

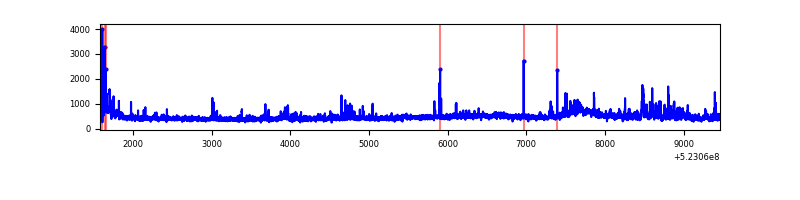

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7881 | 7881 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7880 | 7880 | 10 | 10 | 0.13% | 0.13% |  |
| C | 7880 | 7880 | 978 | 978 | 12.41% | 12.41% |  |
| D | 7880 | 7880 | 470 | 470 | 5.96% | 5.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 307668 | 1431.77 | 861 | 838 | 214.3 |
| A | 10 | 251 | 105260 | 487.27 | 861 | 838 | 214.3 |
| A | 10 | 17 | 45494 | 208.38 | 861 | 838 | 214.3 |
| B | 8 | 128 | 97159 | 525.47 | 854 | 820 | 183.3 |
| B | 4 | 171 | 83386 | 450.35 | 854 | 820 | 183.3 |
| B | 8 | 234 | 63703 | 342.99 | 854 | 820 | 183.3 |
| C | 15 | 164 | 2389706 | 11016.89 | 795 | 788 | 216.8 |
| C | 15 | 217 | 1607745 | 7410.75 | 795 | 788 | 216.8 |
| C | 14 | 254 | 237829 | 1093.15 | 795 | 788 | 216.8 |
| D | 8 | 240 | 1438576 | 6245.73 | 814 | 777 | 230.2 |
| D | 11 | 129 | 758568 | 3291.81 | 814 | 777 | 230.2 |
| D | 2 | 249 | 192568 | 833.13 | 814 | 777 | 230.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

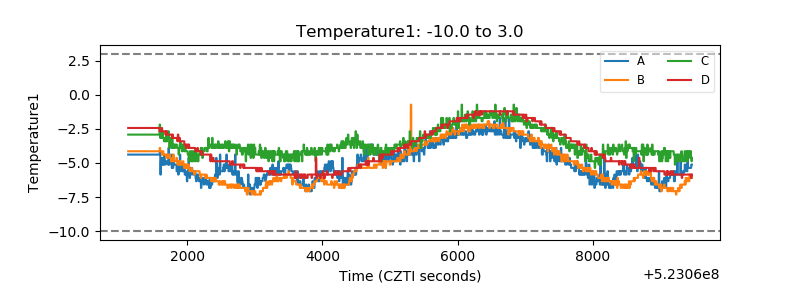

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

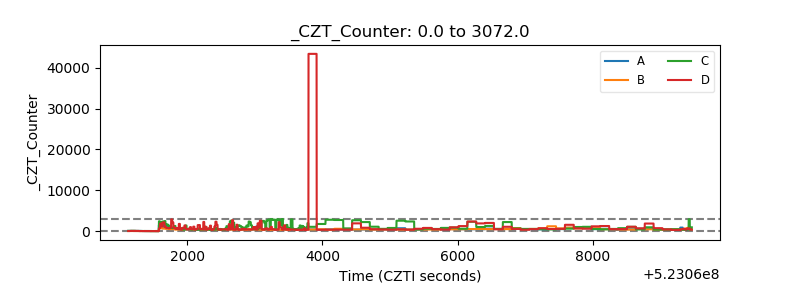

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

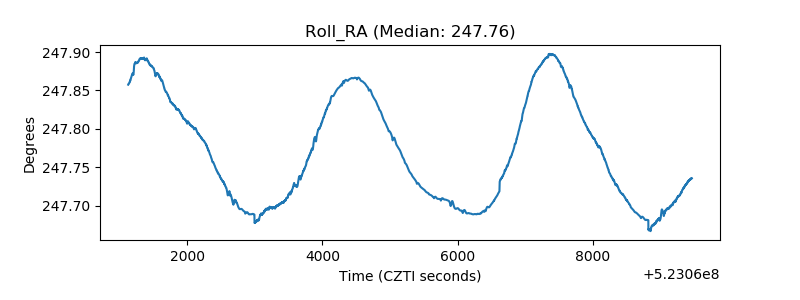

| _Roll_RA |  |

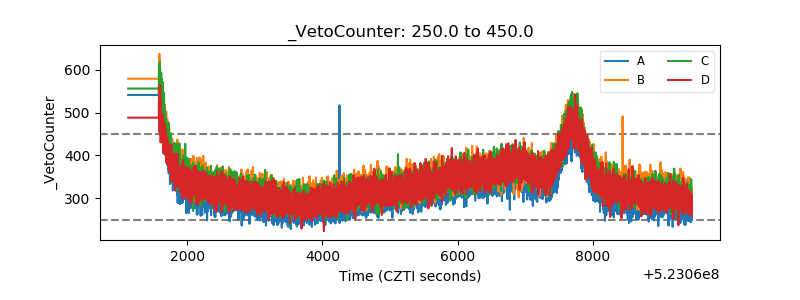

| Veto Counter |  |
