| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58634cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58634cztM0_level2_quad_clean.evt |
| Size (bytes) | 704,448,000 | 118,676,160 |
| Size | 671.8 MB | 113.2 MB |
| Events in quadrant A | 4,650,384 | 808,770 |
| Events in quadrant B | 4,396,419 | 866,448 |
| Events in quadrant C | 10,638,740 | 596,442 |
| Events in quadrant D | 5,731,651 | 731,119 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19693 | 0 |
| B | 0 | 19046 | 0 |
| C | 0 | 37514 | 0 |
| D | 0 | 23119 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8500 | 86 | 1.011765% |
| B | 8501 | 141 | 1.658628% |
| C | 8501 | 2353 | 27.679097% |
| D | 8501 | 241 | 2.834961% |

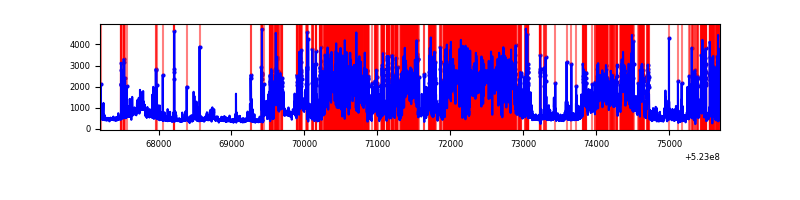

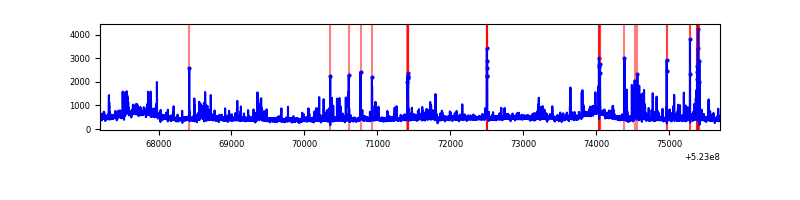

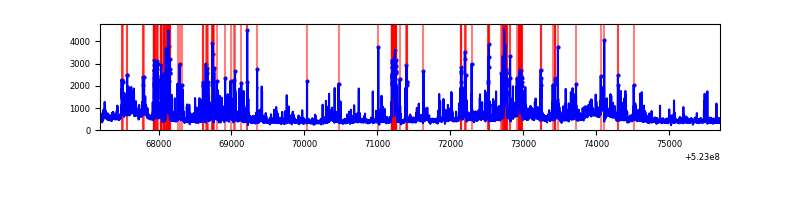

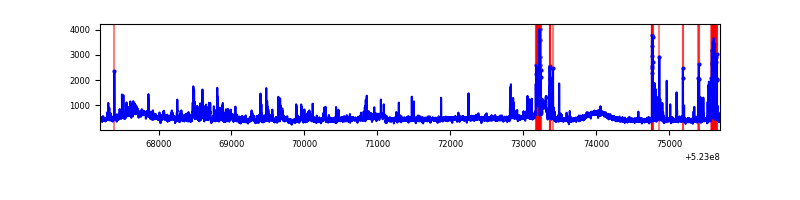

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8500 | 8500 | 67 | 67 | 0.79% | 0.79% |  |
| B | 8501 | 8501 | 36 | 36 | 0.42% | 0.42% |  |
| C | 8501 | 8501 | 1998 | 1998 | 23.50% | 23.50% |  |
| D | 8501 | 8501 | 208 | 208 | 2.45% | 2.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 435699 | 1873.03 | 941 | 914 | 232.1 |
| A | 12 | 114 | 268196 | 1151.43 | 941 | 914 | 232.1 |
| A | 10 | 17 | 213130 | 914.21 | 941 | 914 | 232.1 |
| B | 8 | 128 | 214555 | 1066.43 | 935 | 899 | 200.3 |
| B | 6 | 255 | 170798 | 848.03 | 935 | 899 | 200.3 |
| B | 4 | 171 | 128295 | 635.88 | 935 | 899 | 200.3 |
| C | 15 | 164 | 5393133 | 24927.19 | 792 | 786 | 216.3 |
| C | 15 | 217 | 1279718 | 5912.12 | 792 | 786 | 216.3 |
| C | 13 | 3 | 455132 | 2100.3 | 792 | 786 | 216.3 |
| D | 11 | 129 | 1021330 | 3953.53 | 911 | 867 | 258.1 |
| D | 8 | 240 | 534283 | 2066.59 | 911 | 867 | 258.1 |
| D | 2 | 249 | 302423 | 1168.3 | 911 | 867 | 258.1 |

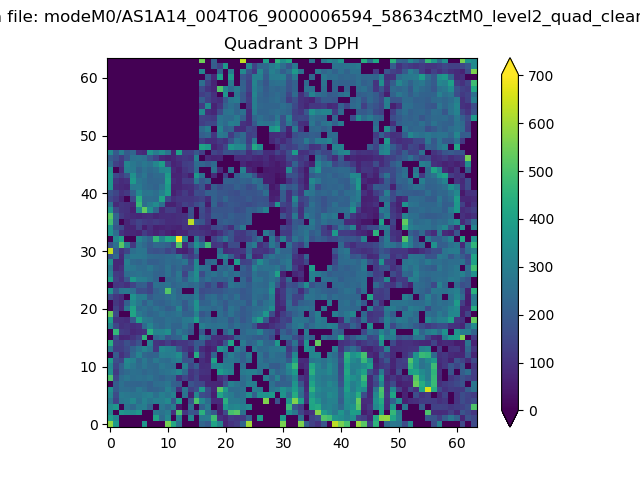

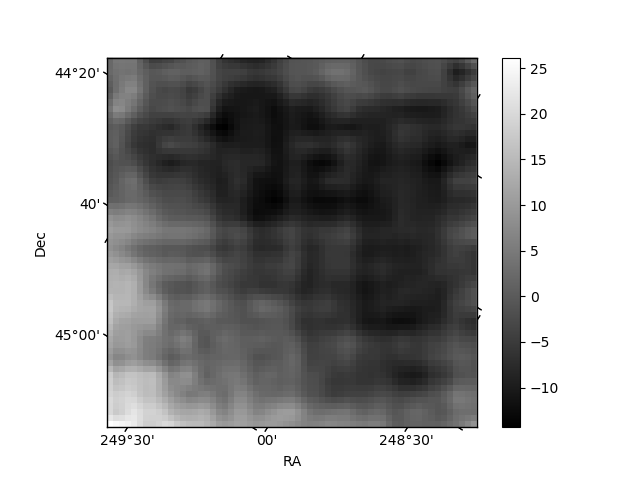

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

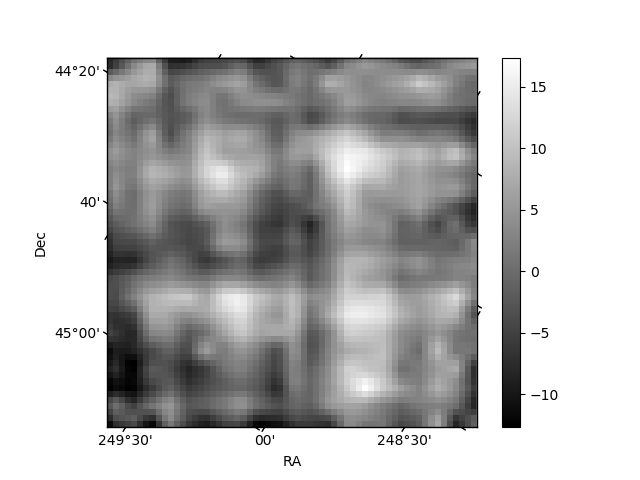

| Plot type | Count rate plots | Images |
|---|---|---|

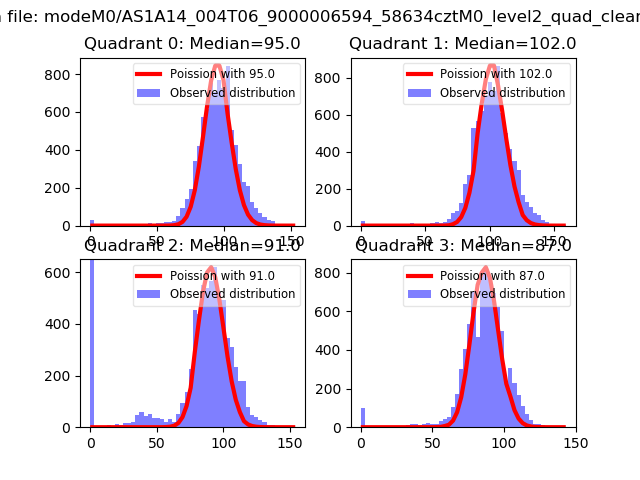

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

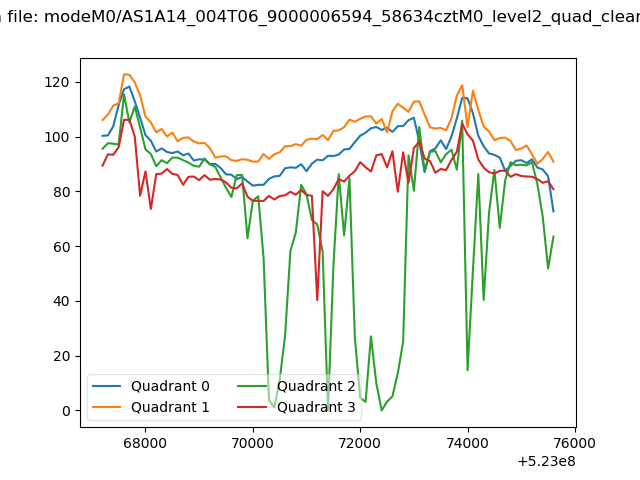

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

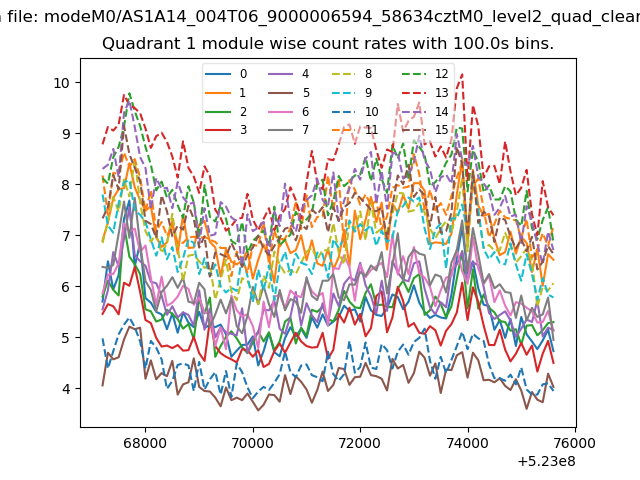

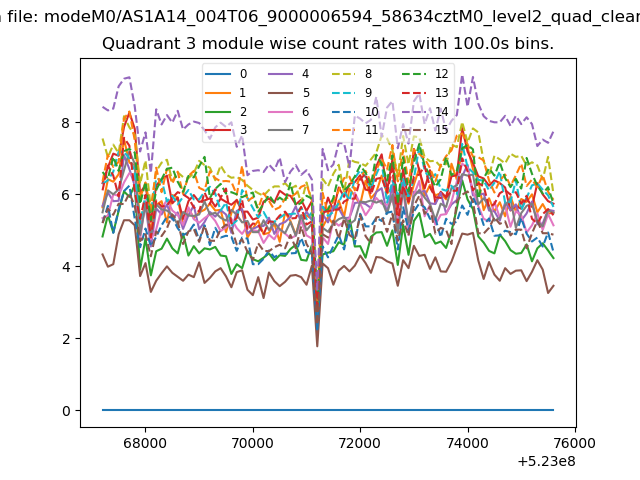

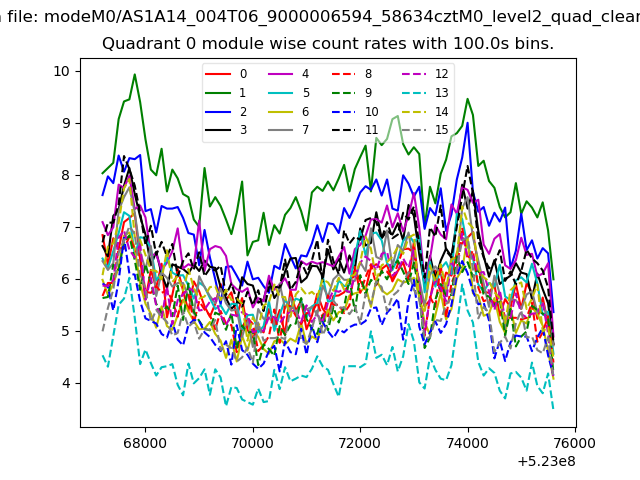

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

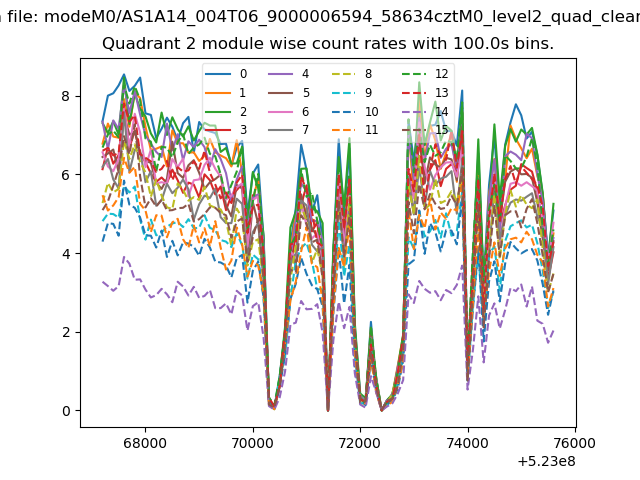

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

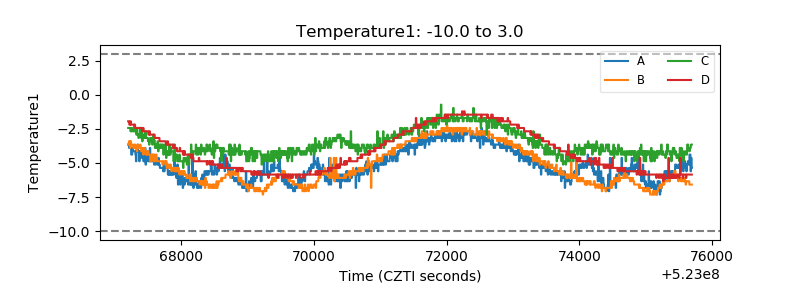

| Temperature 1 |  |
| Veto HV Monitor |  |

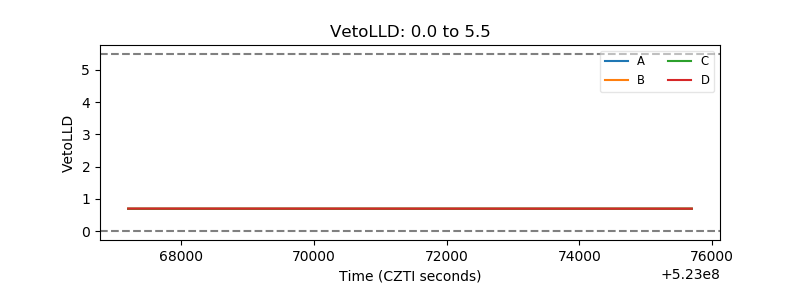

| Veto LLD |  |

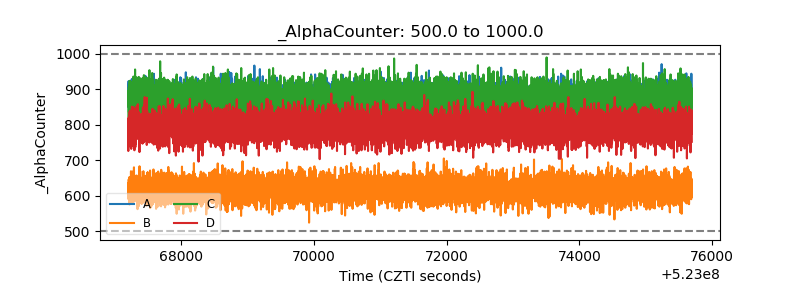

| Alpha Counter |  |

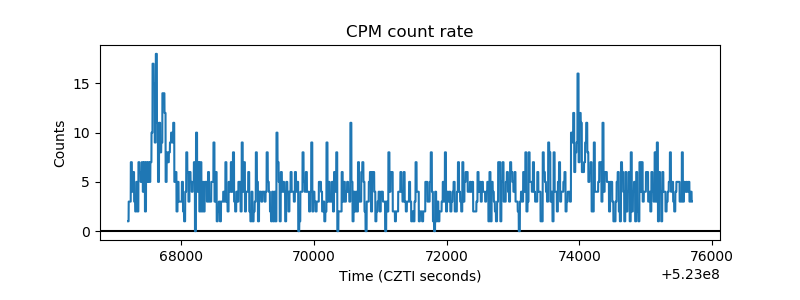

| _CPM_Rate |  |

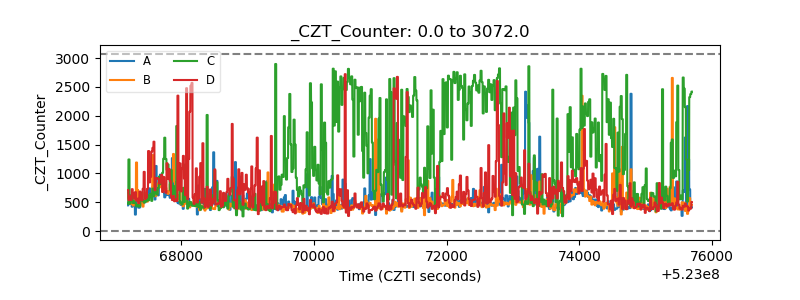

| CZT Counter |  |

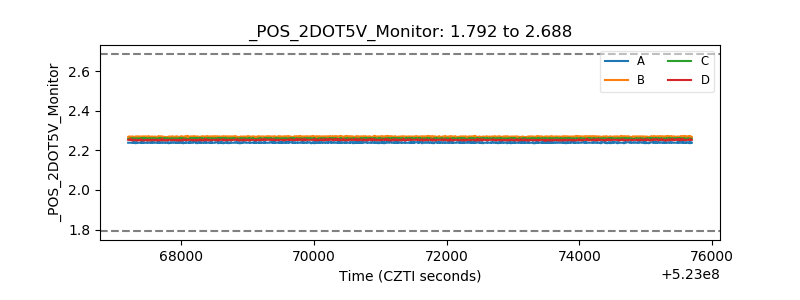

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

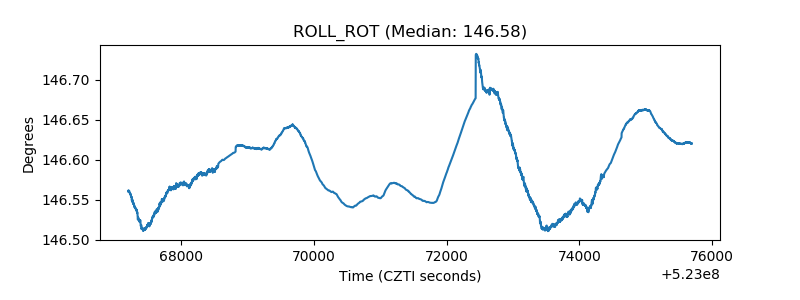

| _ROLL_ROT |  |

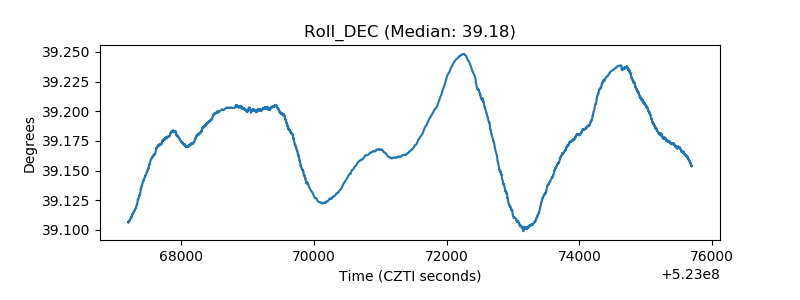

| _Roll_DEC |  |

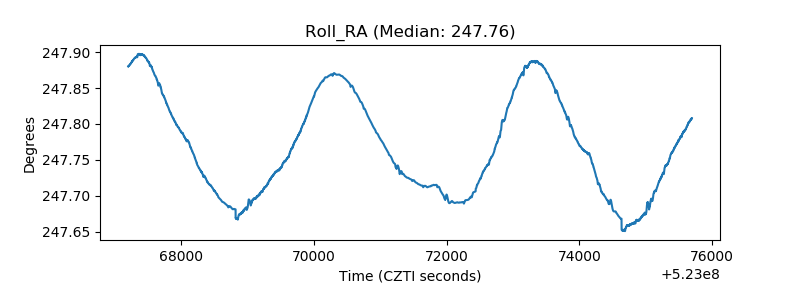

| _Roll_RA |  |

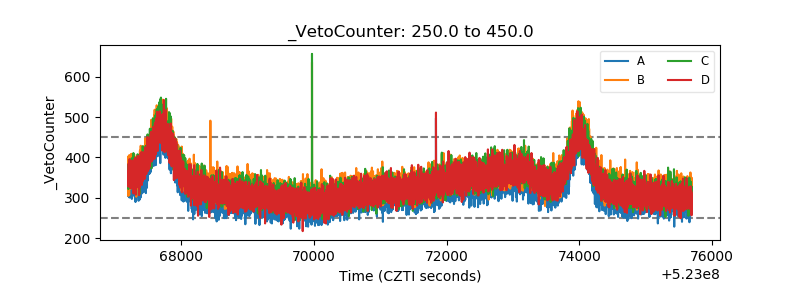

| Veto Counter |  |
