| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58641cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58641cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,852,480 | 100,339,200 |
| Size | 541.5 MB | 95.7 MB |
| Events in quadrant A | 5,655,155 | 655,370 |
| Events in quadrant B | 4,182,642 | 726,038 |
| Events in quadrant C | 4,096,789 | 636,458 |
| Events in quadrant D | 6,557,911 | 546,322 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21305 | 2 |
| B | 0 | 16928 | 5 |
| C | 0 | 16883 | 2 |
| D | 0 | 24189 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6800 | 486 | 7.147059% |
| B | 6800 | 201 | 2.955882% |
| C | 6800 | 320 | 4.705882% |
| D | 6800 | 1015 | 14.926471% |

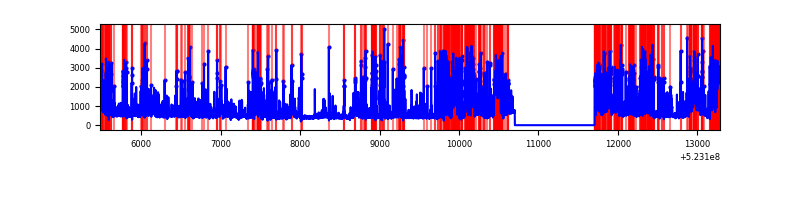

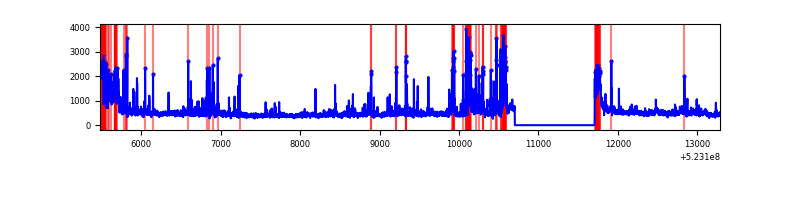

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7805 | 6800 | 319 | 319 | 4.09% | 4.69% |  |
| B | 7805 | 6800 | 68 | 68 | 0.87% | 1.00% |  |
| C | 7805 | 6800 | 180 | 180 | 2.31% | 2.65% |  |
| D | 7804 | 6799 | 772 | 772 | 9.89% | 11.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 2393929 | 12602.46 | 767 | 746 | 189.9 |
| A | 10 | 17 | 91021 | 475.39 | 767 | 746 | 189.9 |
| A | 13 | 248 | 86873 | 453.54 | 767 | 746 | 189.9 |
| B | 2 | 249 | 283752 | 1734.29 | 762 | 733 | 163.2 |
| B | 8 | 234 | 213251 | 1302.27 | 762 | 733 | 163.2 |
| B | 8 | 128 | 179569 | 1095.87 | 762 | 733 | 163.2 |
| C | 15 | 217 | 466196 | 2278.89 | 744 | 738 | 204.2 |
| C | 15 | 164 | 398941 | 1949.61 | 744 | 738 | 204.2 |
| C | 12 | 252 | 121902 | 593.22 | 744 | 738 | 204.2 |
| D | 2 | 249 | 2086299 | 10379.58 | 713 | 683 | 200.9 |
| D | 8 | 240 | 888438 | 4418.13 | 713 | 683 | 200.9 |
| D | 7 | 222 | 331175 | 1644.77 | 713 | 683 | 200.9 |

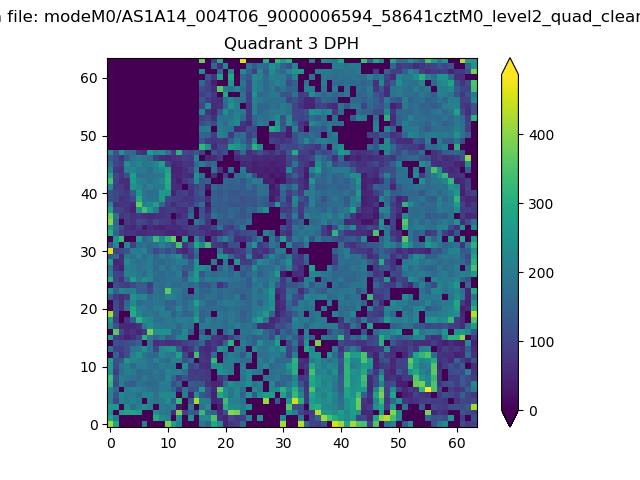

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

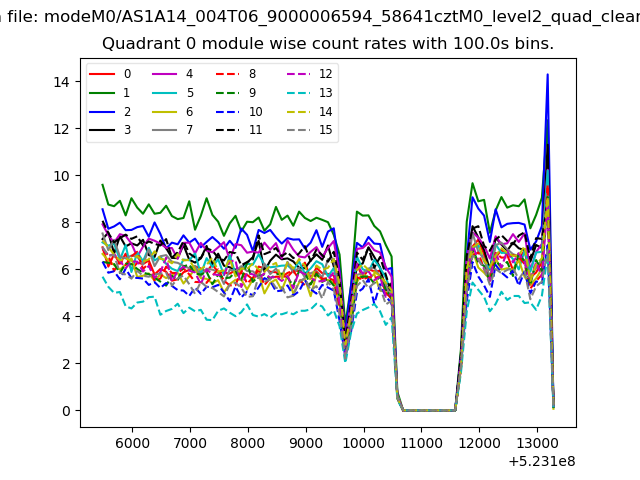

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

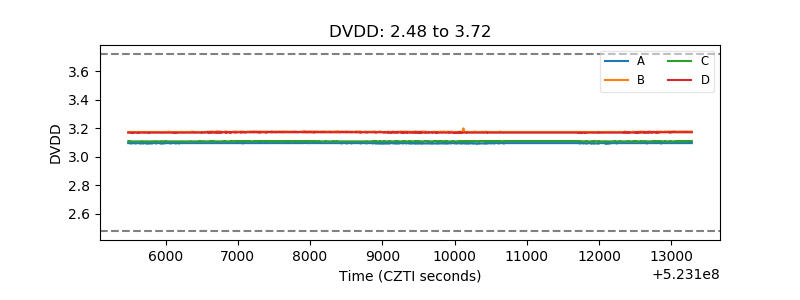

| D_VDD |  |

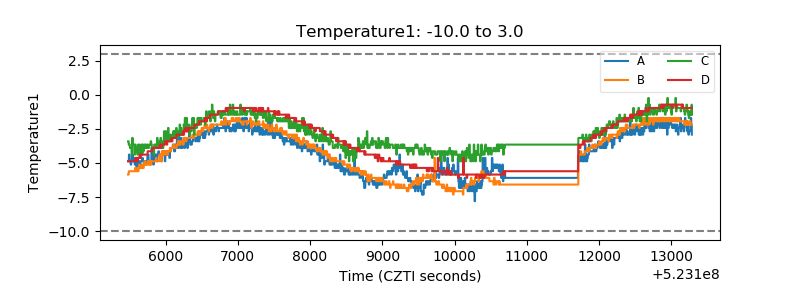

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

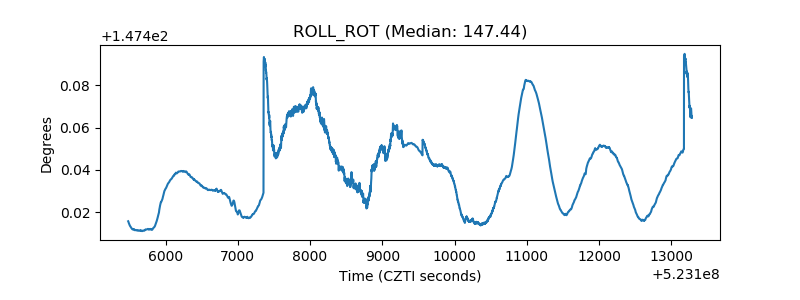

| _ROLL_ROT |  |
| _Roll_DEC |  |

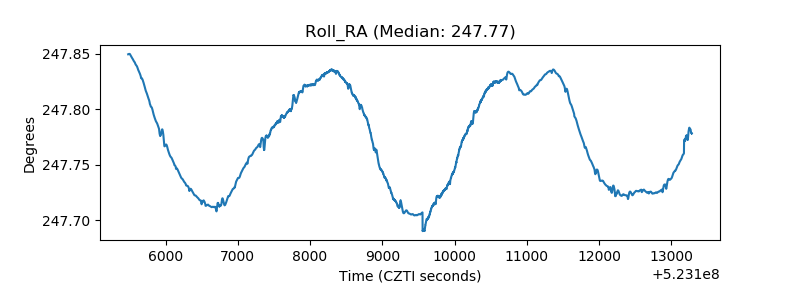

| _Roll_RA |  |
| Veto Counter |  |
