| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58644cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58644cztM0_level2_quad_clean.evt |
| Size (bytes) | 147,902,400 | 28,981,440 |
| Size | 141.1 MB | 27.6 MB |
| Events in quadrant A | 1,142,619 | 193,609 |
| Events in quadrant B | 1,154,761 | 198,727 |
| Events in quadrant C | 1,080,581 | 192,349 |
| Events in quadrant D | 1,935,571 | 145,681 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9362 | 4422 |
| B | 0 | 9953 | 5174 |
| C | 0 | 10015 | 5431 |
| D | 0 | 14938 | 7819 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 48 |
| B | 0 | 82 | 42 |
| C | 0 | 81 | 43 |
| D | 0 | 82 | 38 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 7 |
| B | 0 | 7 | 7 |
| C | 0 | 5 | 5 |
| D | 0 | 5 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2108 | 73 | 3.462998% |
| B | 2017 | 46 | 2.280615% |
| C | 2049 | 6 | 0.292826% |
| D | 1951 | 319 | 16.350589% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

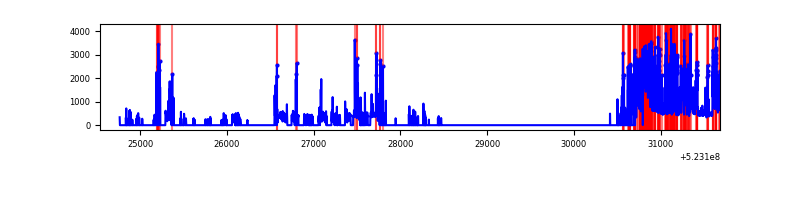

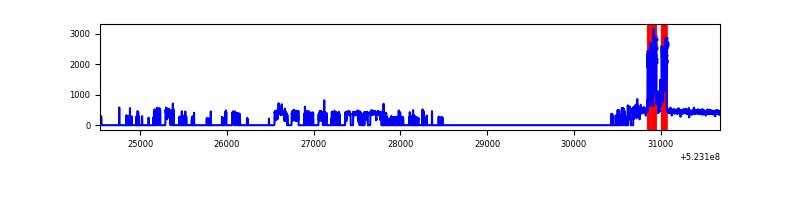

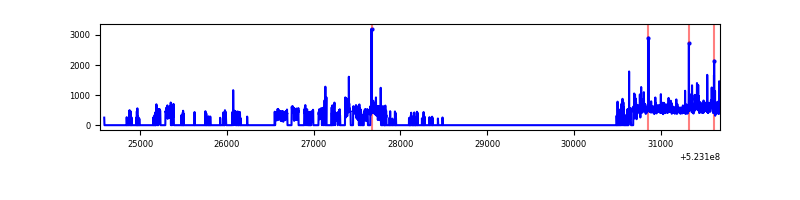

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7144 | 2427 | 66 | 66 | 0.92% | 2.72% |  |
| B | 6849 | 2340 | 37 | 37 | 0.54% | 1.58% |  |
| C | 7095 | 2306 | 4 | 4 | 0.06% | 0.17% |  |
| D | 6917 | 2220 | 262 | 262 | 3.79% | 11.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 239751 | 4102.7 | 225 | 219 | 58.4 |
| A | 3 | 14 | 17231 | 291.38 | 225 | 219 | 58.4 |
| A | 4 | 249 | 9202 | 153.86 | 225 | 219 | 58.4 |
| B | 2 | 249 | 149996 | 3189.27 | 213 | 206 | 47.0 |
| B | 5 | 185 | 72409 | 1537.32 | 213 | 206 | 47.0 |
| B | 8 | 234 | 31436 | 664.94 | 213 | 206 | 47.0 |
| C | 15 | 217 | 93333 | 1515.41 | 218 | 215 | 61.4 |
| C | 12 | 252 | 49583 | 803.42 | 218 | 215 | 61.4 |
| C | 12 | 249 | 31626 | 511.18 | 218 | 215 | 61.4 |
| D | 2 | 249 | 651190 | 11695.82 | 191 | 183 | 55.7 |
| D | 11 | 129 | 291230 | 5228.87 | 191 | 183 | 55.7 |
| D | 8 | 240 | 125792 | 2256.66 | 191 | 183 | 55.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

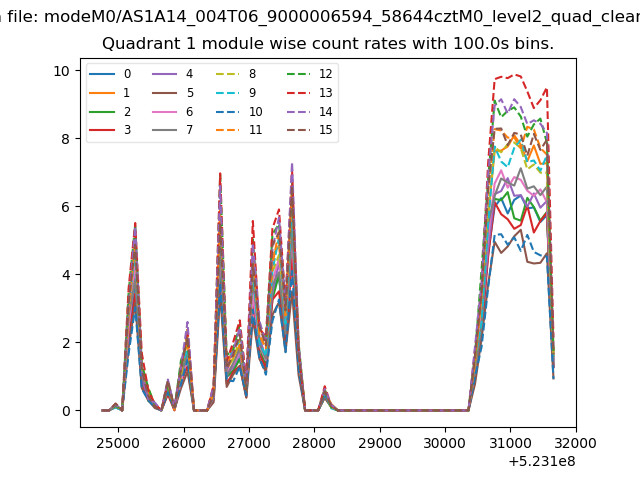

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

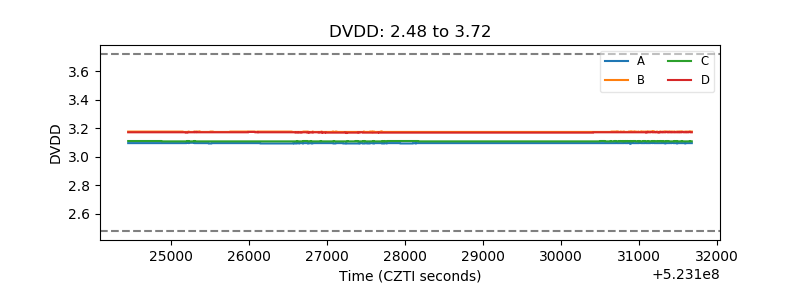

| D_VDD |  |

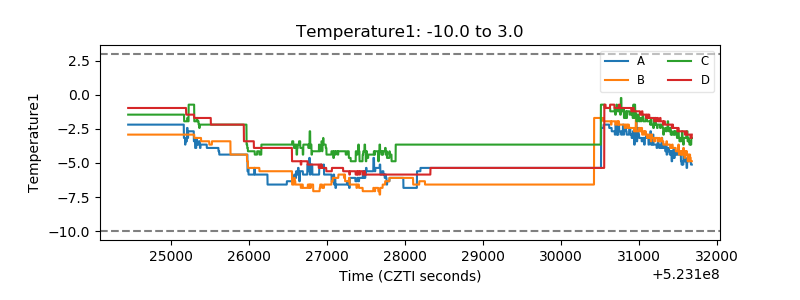

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

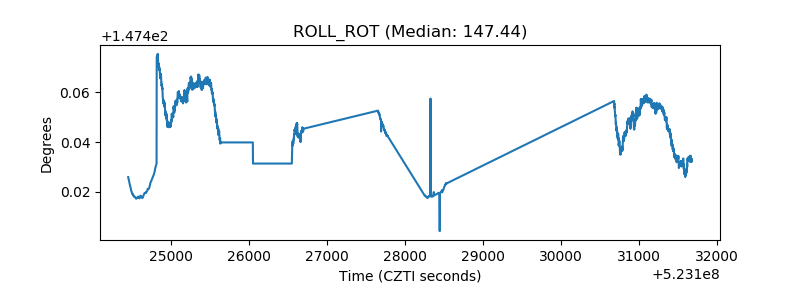

| _ROLL_ROT |  |
| _Roll_DEC |  |

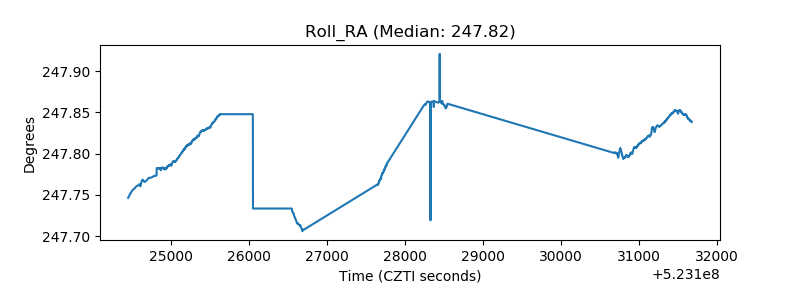

| _Roll_RA |  |
| Veto Counter |  |
