| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58646cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58646cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,969,280 | 88,090,560 |
| Size | 474.9 MB | 84.0 MB |
| Events in quadrant A | 3,856,550 | 590,297 |
| Events in quadrant B | 3,178,872 | 635,581 |
| Events in quadrant C | 3,174,078 | 579,448 |
| Events in quadrant D | 7,741,557 | 427,809 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16303 | 592 |
| B | 0 | 14378 | 490 |
| C | 0 | 14680 | 678 |
| D | 0 | 28803 | 1579 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 8 |
| B | 0 | 137 | 5 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 10 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 1 |
| B | 0 | 16 | 1 |
| C | 0 | 16 | 1 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6217 | 99 | 1.592408% |
| B | 6244 | 110 | 1.761691% |
| C | 6223 | 84 | 1.349831% |
| D | 6117 | 1508 | 24.652607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

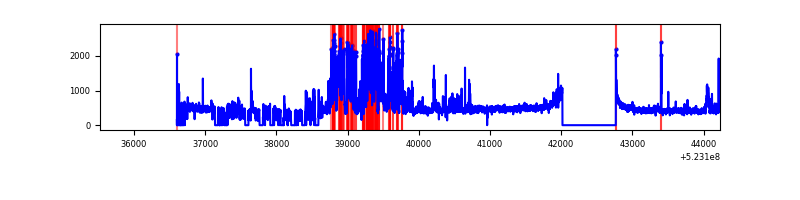

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7628 | 6384 | 141 | 141 | 1.85% | 2.21% |  |
| B | 8707 | 6384 | 50 | 50 | 0.57% | 0.78% |  |
| C | 7627 | 6377 | 60 | 60 | 0.79% | 0.94% |  |
| D | 7627 | 6313 | 1300 | 1300 | 17.04% | 20.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 1043120 | 6274.82 | 677 | 661 | 166.1 |
| A | 10 | 17 | 62716 | 373.52 | 677 | 661 | 166.1 |
| A | 3 | 14 | 54678 | 325.14 | 677 | 661 | 166.1 |
| B | 4 | 158 | 131191 | 905.52 | 671 | 646 | 144.2 |
| B | 6 | 255 | 97871 | 674.4 | 671 | 646 | 144.2 |
| B | 5 | 185 | 89051 | 613.22 | 671 | 646 | 144.2 |
| C | 12 | 252 | 133165 | 721.45 | 665 | 658 | 183.7 |
| C | 14 | 254 | 124975 | 676.85 | 665 | 658 | 183.7 |
| C | 15 | 204 | 123557 | 669.13 | 665 | 658 | 183.7 |
| D | 2 | 249 | 2686379 | 16082.11 | 588 | 562 | 167.0 |
| D | 11 | 129 | 2500448 | 14968.79 | 588 | 562 | 167.0 |
| D | 7 | 222 | 71265 | 423.35 | 588 | 562 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

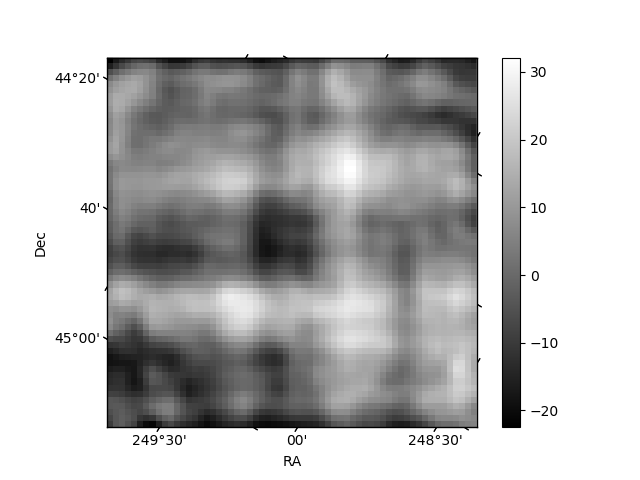

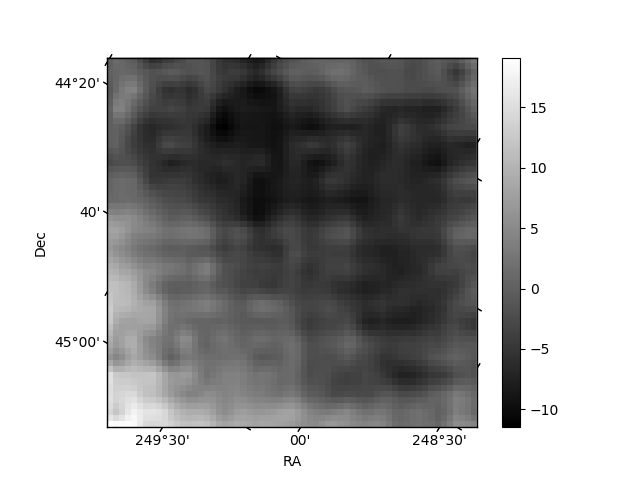

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

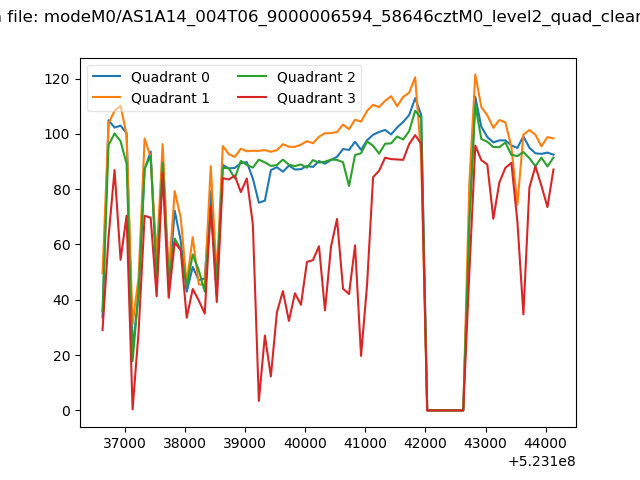

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

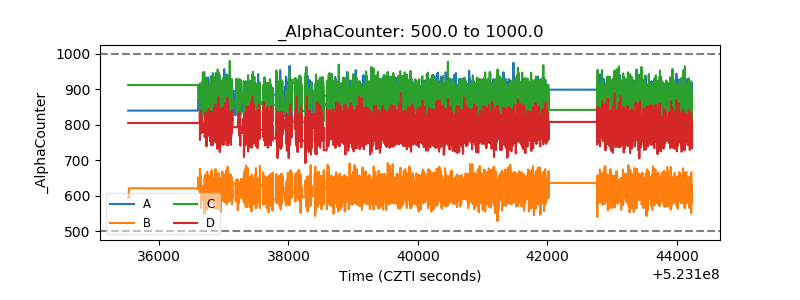

| Alpha Counter |  |
| _CPM_Rate |  |

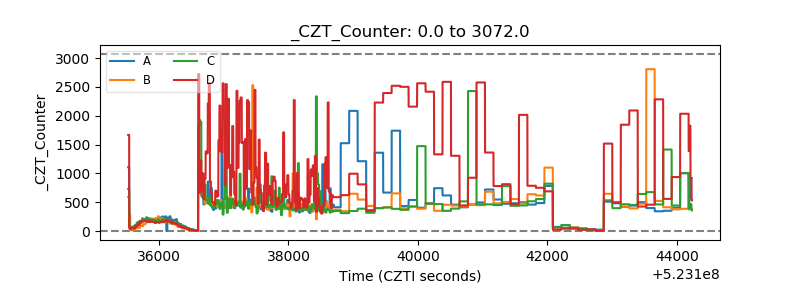

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
