| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58653cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58653cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,800,320 | 97,479,360 |
| Size | 572.0 MB | 93.0 MB |
| Events in quadrant A | 4,656,688 | 646,409 |
| Events in quadrant B | 4,185,021 | 693,086 |
| Events in quadrant C | 3,576,583 | 638,723 |
| Events in quadrant D | 9,236,765 | 482,160 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18692 | 2 |
| B | 0 | 17338 | 2 |
| C | 0 | 15706 | 2 |
| D | 0 | 32315 | 19 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7054 | 389 | 5.514602% |
| B | 7054 | 443 | 6.280125% |
| C | 7054 | 211 | 2.991211% |
| D | 7051 | 1879 | 26.648702% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7889 | 7054 | 267 | 267 | 3.38% | 3.79% |  |
| B | 7889 | 7054 | 138 | 138 | 1.75% | 1.96% |  |
| C | 7889 | 7054 | 56 | 56 | 0.71% | 0.79% |  |
| D | 7889 | 7053 | 1621 | 1621 | 20.55% | 22.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1129584 | 5873.52 | 785 | 762 | 192.2 |
| A | 10 | 251 | 407501 | 2116.36 | 785 | 762 | 192.2 |
| A | 3 | 245 | 44278 | 226.42 | 785 | 762 | 192.2 |
| B | 5 | 185 | 866702 | 5227.12 | 769 | 739 | 165.7 |
| B | 12 | 0 | 127966 | 767.96 | 769 | 739 | 165.7 |
| B | 8 | 234 | 36200 | 214.05 | 769 | 739 | 165.7 |
| C | 13 | 3 | 237589 | 1139.24 | 762 | 754 | 207.9 |
| C | 12 | 252 | 225724 | 1082.17 | 762 | 754 | 207.9 |
| C | 15 | 217 | 58139 | 276.04 | 762 | 754 | 207.9 |
| D | 11 | 129 | 4155826 | 21269.08 | 682 | 651 | 195.4 |
| D | 8 | 240 | 1355286 | 6933.97 | 682 | 651 | 195.4 |
| D | 2 | 249 | 345975 | 1767.61 | 682 | 651 | 195.4 |

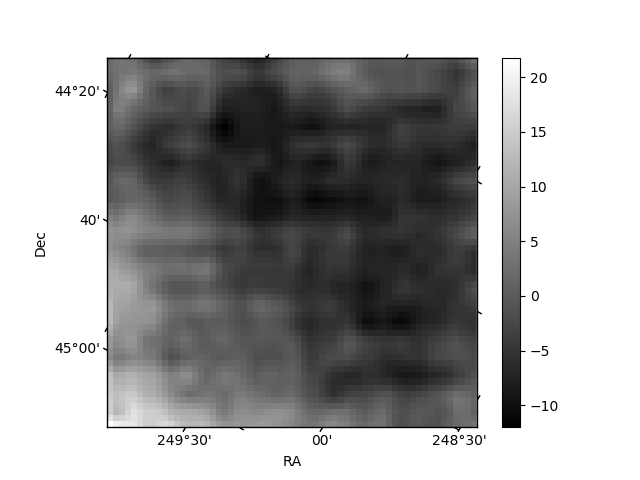

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

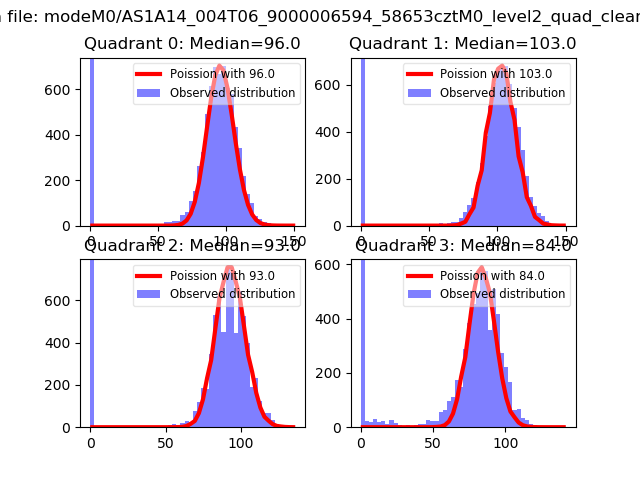

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

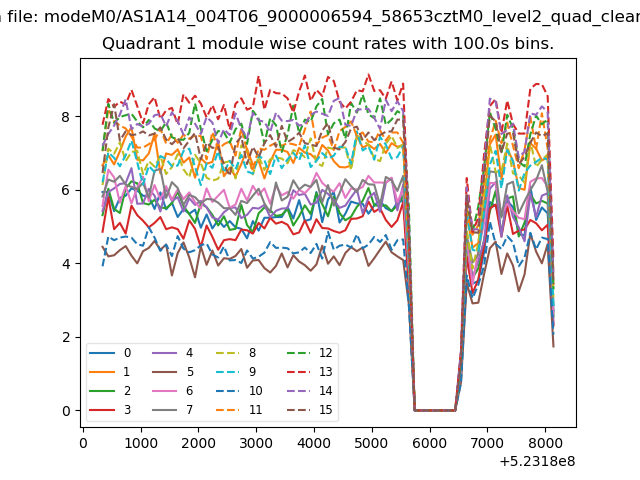

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
