| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58655cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58655cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,480,000 | 99,688,320 |
| Size | 486.8 MB | 95.1 MB |
| Events in quadrant A | 3,415,199 | 669,738 |
| Events in quadrant B | 4,171,242 | 688,919 |
| Events in quadrant C | 3,923,532 | 630,986 |
| Events in quadrant D | 6,852,751 | 550,547 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14951 | 2 |
| B | 0 | 17051 | 2 |
| C | 0 | 16383 | 2 |
| D | 0 | 25126 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6866 | 157 | 2.286630% |
| B | 6866 | 427 | 6.219050% |
| C | 6866 | 289 | 4.209147% |
| D | 6866 | 936 | 13.632391% |

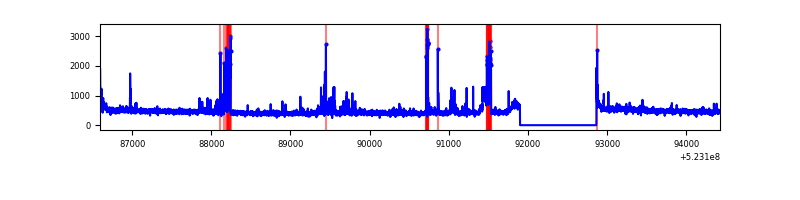

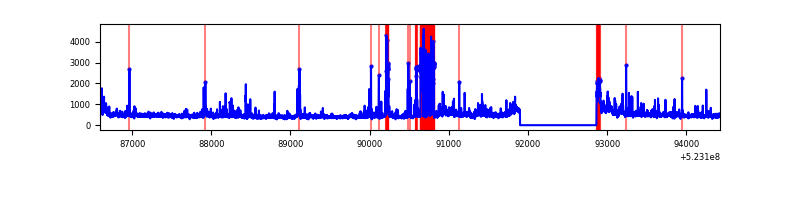

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 6866 | 50 | 50 | 0.64% | 0.73% |  |
| B | 7831 | 6866 | 150 | 150 | 1.92% | 2.18% |  |
| C | 7831 | 6866 | 148 | 148 | 1.89% | 2.16% |  |
| D | 7831 | 6866 | 798 | 798 | 10.19% | 11.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 156698 | 809.36 | 781 | 761 | 192.7 |
| A | 10 | 251 | 110151 | 567.77 | 781 | 761 | 192.7 |
| A | 4 | 249 | 79279 | 407.53 | 781 | 761 | 192.7 |
| B | 5 | 185 | 808549 | 4970.01 | 754 | 726 | 162.5 |
| B | 0 | 186 | 79891 | 487.05 | 754 | 726 | 162.5 |
| B | 2 | 249 | 61289 | 372.6 | 754 | 726 | 162.5 |
| C | 12 | 249 | 366848 | 1794.3 | 747 | 741 | 204.0 |
| C | 13 | 3 | 246586 | 1204.89 | 747 | 741 | 204.0 |
| C | 15 | 217 | 240263 | 1173.9 | 747 | 741 | 204.0 |
| D | 11 | 129 | 2044601 | 10128.24 | 717 | 686 | 201.8 |
| D | 7 | 222 | 541314 | 2678.98 | 717 | 686 | 201.8 |
| D | 8 | 240 | 457286 | 2262.6 | 717 | 686 | 201.8 |

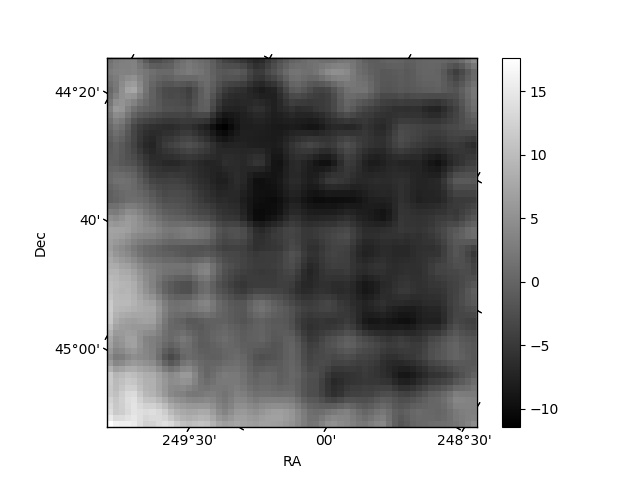

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

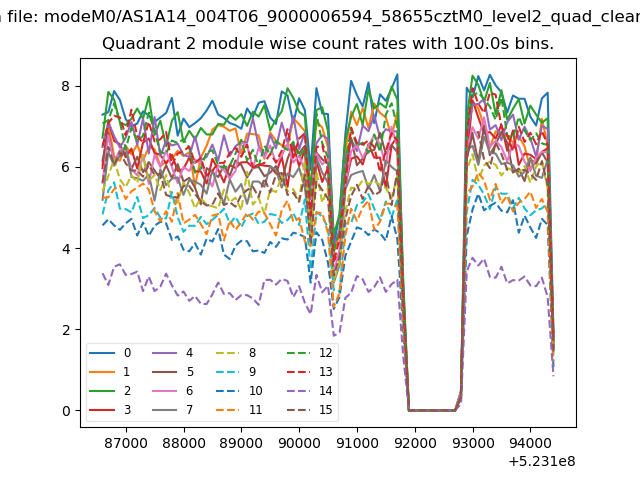

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

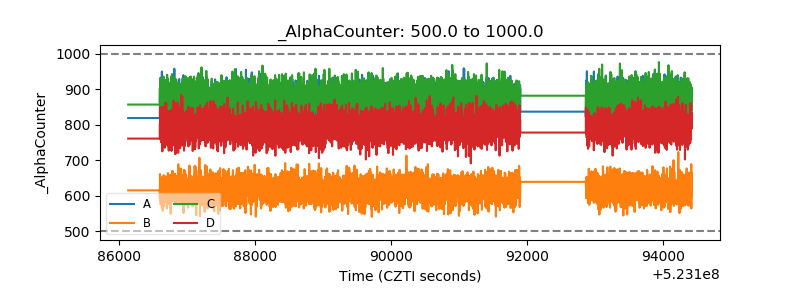

| Alpha Counter |  |
| _CPM_Rate |  |

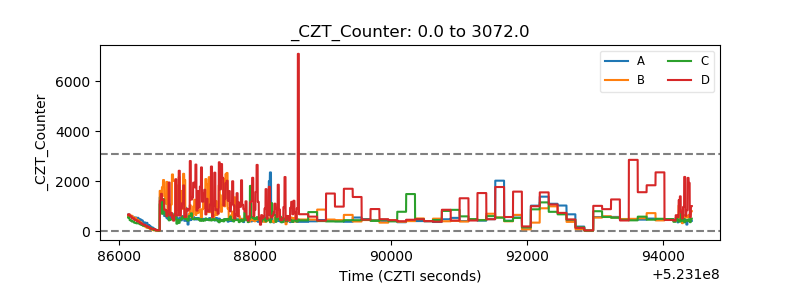

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

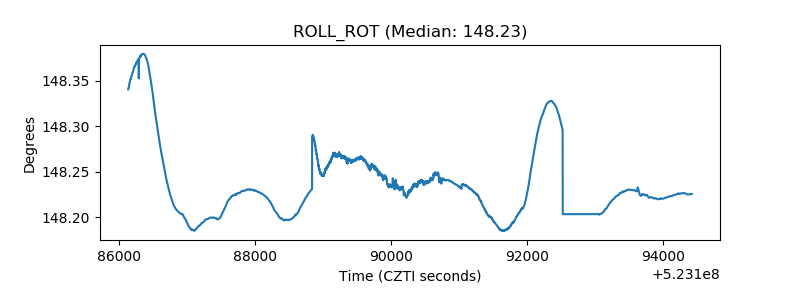

| _ROLL_ROT |  |
| _Roll_DEC |  |

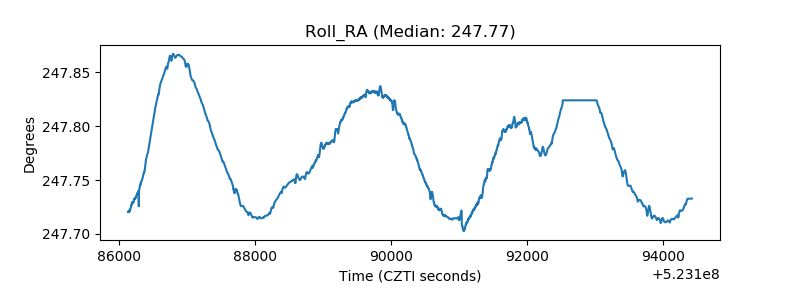

| _Roll_RA |  |
| Veto Counter |  |
