| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58660cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58660cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,292,480 | 87,459,840 |
| Size | 517.2 MB | 83.4 MB |
| Events in quadrant A | 3,330,873 | 602,096 |
| Events in quadrant B | 2,888,775 | 651,641 |
| Events in quadrant C | 4,000,350 | 582,821 |
| Events in quadrant D | 9,373,234 | 379,680 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14953 | 524 |
| B | 0 | 13384 | 305 |
| C | 0 | 16399 | 314 |
| D | 0 | 33825 | 1756 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 2 |
| B | 0 | 128 | 2 |
| C | 0 | 128 | 2 |
| D | 0 | 128 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6195 | 70 | 1.129944% |
| B | 6224 | 35 | 0.562339% |
| C | 6229 | 159 | 2.552577% |
| D | 6092 | 2108 | 34.602758% |

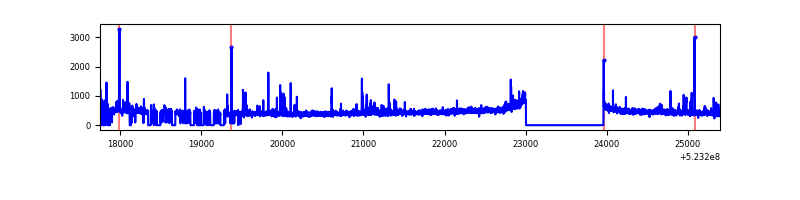

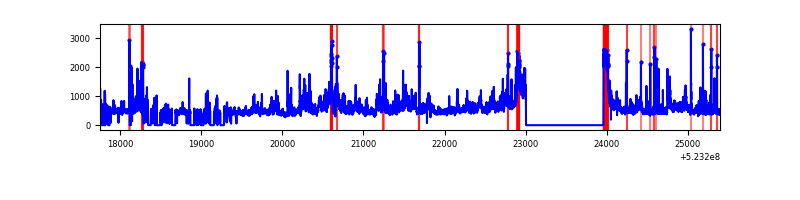

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7638 | 6305 | 46 | 46 | 0.60% | 0.73% |  |
| B | 7635 | 6315 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7643 | 6334 | 107 | 107 | 1.40% | 1.69% |  |
| D | 7639 | 6170 | 2084 | 2084 | 27.28% | 33.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 518535 | 3084.97 | 676 | 660 | 167.9 |
| A | 3 | 14 | 91356 | 540.27 | 676 | 660 | 167.9 |
| A | 4 | 249 | 48478 | 284.85 | 676 | 660 | 167.9 |
| B | 0 | 186 | 52331 | 360.26 | 673 | 648 | 143.5 |
| B | 0 | 171 | 40675 | 279.01 | 673 | 648 | 143.5 |
| B | 8 | 234 | 34826 | 238.24 | 673 | 648 | 143.5 |
| C | 15 | 217 | 878239 | 4795.91 | 663 | 657 | 183.0 |
| C | 15 | 164 | 134382 | 730.8 | 663 | 657 | 183.0 |
| C | 12 | 252 | 133970 | 728.54 | 663 | 657 | 183.0 |
| D | 11 | 129 | 4091317 | 25983.5 | 547 | 522 | 157.4 |
| D | 8 | 240 | 1967856 | 12495.91 | 547 | 522 | 157.4 |
| D | 8 | 160 | 932130 | 5917.29 | 547 | 522 | 157.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

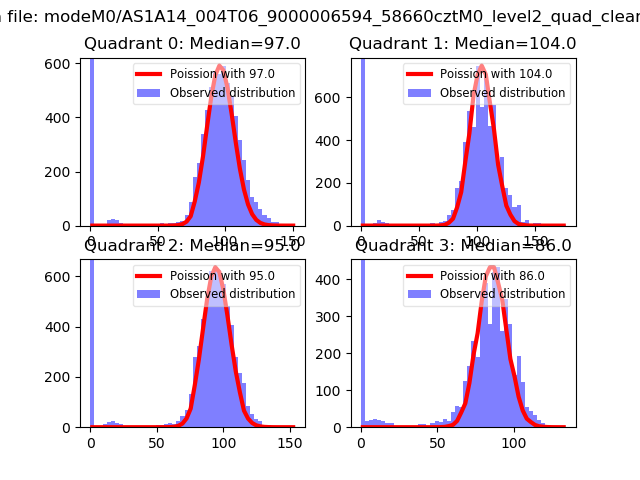

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

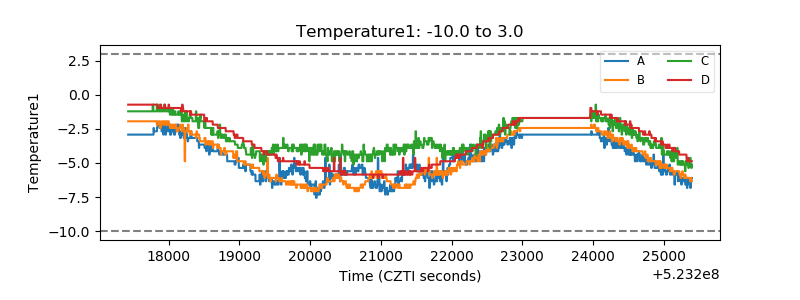

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

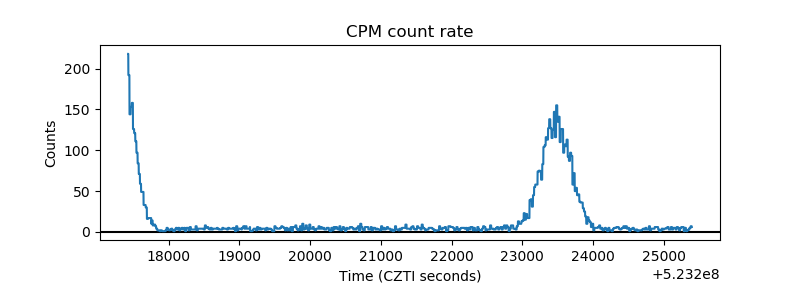

| _CPM_Rate |  |

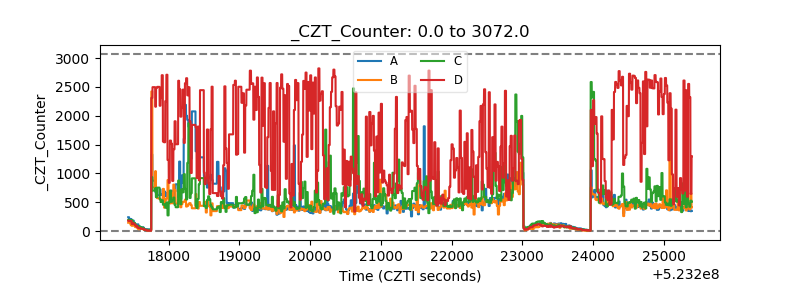

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

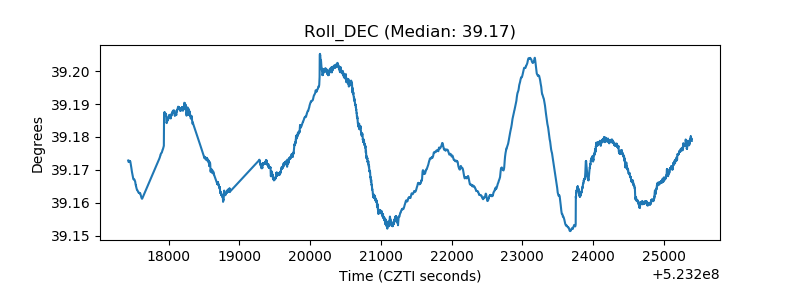

| _Roll_DEC |  |

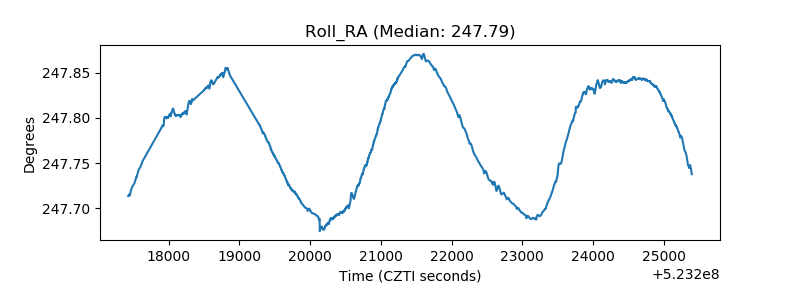

| _Roll_RA |  |
| Veto Counter |  |
