| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58661cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58661cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,011,200 | 92,024,640 |
| Size | 639.9 MB | 87.8 MB |
| Events in quadrant A | 4,257,118 | 637,526 |
| Events in quadrant B | 3,826,088 | 694,090 |
| Events in quadrant C | 4,632,019 | 623,208 |
| Events in quadrant D | 11,584,947 | 348,538 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17639 | 132 |
| B | 0 | 16470 | 115 |
| C | 0 | 18927 | 117 |
| D | 0 | 39764 | 594 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 2 |
| B | 0 | 140 | 2 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 1 |
| B | 0 | 12 | 2 |
| C | 0 | 12 | 1 |
| D | 0 | 12 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6946 | 388 | 5.585949% |
| B | 6946 | 274 | 3.944716% |
| C | 6947 | 396 | 5.700302% |
| D | 6909 | 3163 | 45.780866% |

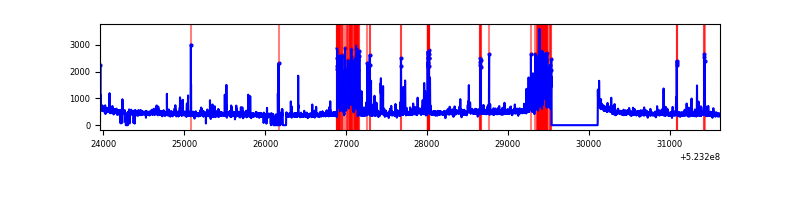

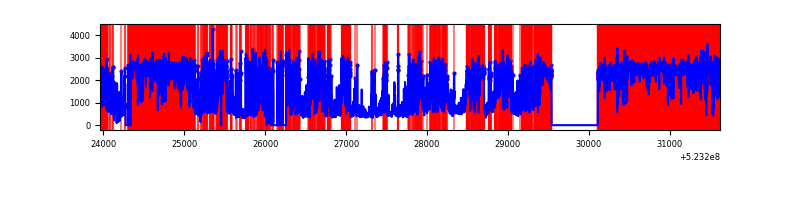

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6977 | 331 | 331 | 4.32% | 4.74% |  |
| B | 7661 | 6982 | 147 | 147 | 1.92% | 2.11% |  |
| C | 7661 | 6979 | 317 | 317 | 4.14% | 4.54% |  |
| D | 7660 | 6936 | 3110 | 3110 | 40.60% | 44.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 737138 | 4045.2 | 735 | 716 | 182.0 |
| A | 4 | 249 | 267506 | 1465.49 | 735 | 716 | 182.0 |
| A | 10 | 17 | 219181 | 1200.04 | 735 | 716 | 182.0 |
| B | 5 | 185 | 645597 | 4129.62 | 733 | 708 | 156.2 |
| B | 10 | 247 | 61828 | 391.39 | 733 | 708 | 156.2 |
| B | 0 | 157 | 36557 | 229.56 | 733 | 708 | 156.2 |
| C | 15 | 147 | 594363 | 2957.51 | 725 | 717 | 200.7 |
| C | 12 | 254 | 461009 | 2293.15 | 725 | 717 | 200.7 |
| C | 15 | 217 | 246911 | 1226.52 | 725 | 717 | 200.7 |
| D | 11 | 129 | 7063891 | 44634.38 | 551 | 525 | 158.2 |
| D | 8 | 160 | 849197 | 5362.88 | 551 | 525 | 158.2 |
| D | 8 | 240 | 786416 | 4966.15 | 551 | 525 | 158.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

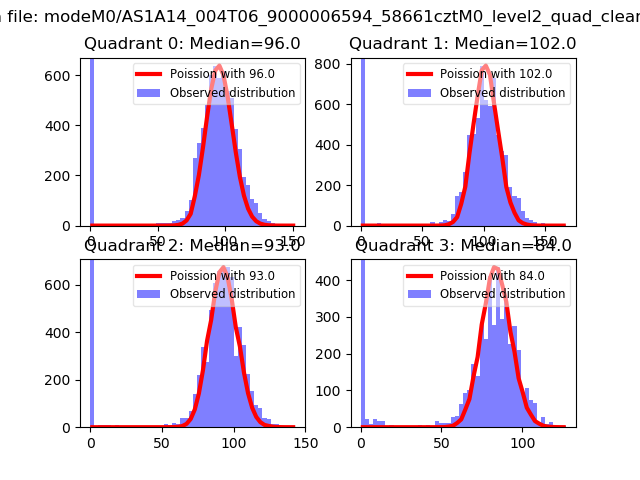

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

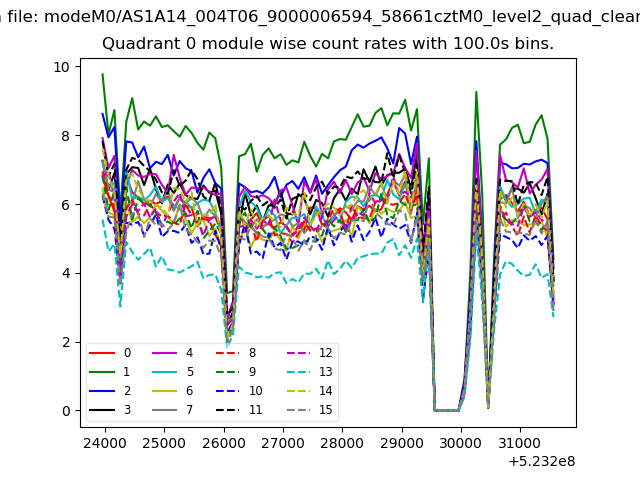

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

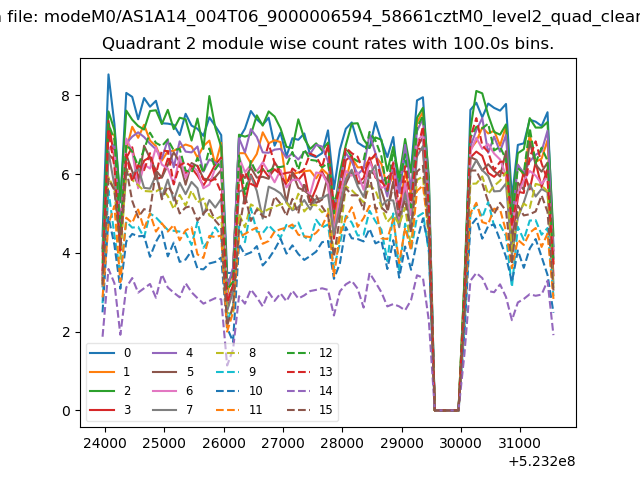

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

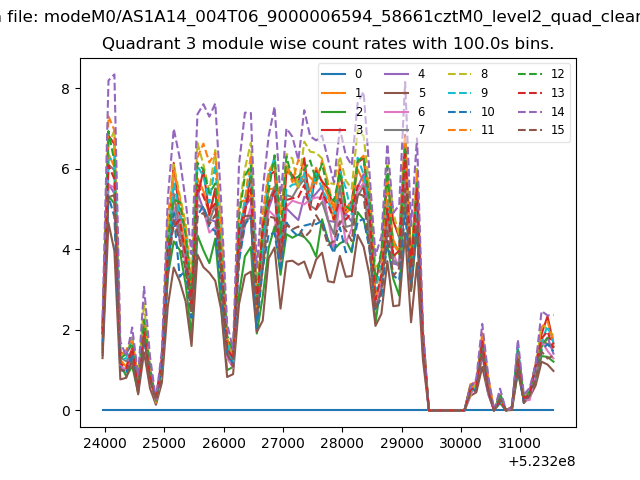

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

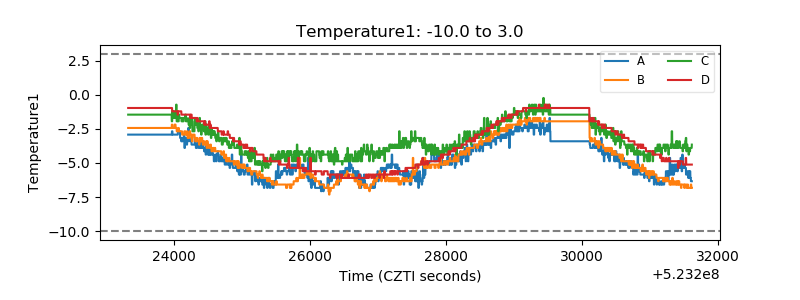

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

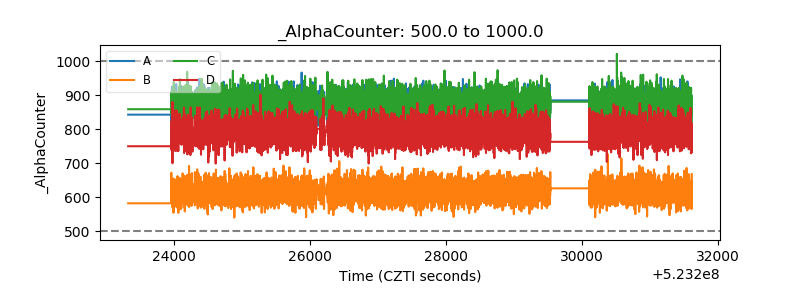

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
