| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58663cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58663cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,815,790,400 | 461,338,560 |
| Size | 2.6 GB | 440.0 MB |
| Events in quadrant A | 18,064,514 | 3,174,885 |
| Events in quadrant B | 17,579,169 | 3,404,607 |
| Events in quadrant C | 20,538,973 | 3,048,118 |
| Events in quadrant D | 45,492,969 | 2,067,843 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78217 | 870 |
| B | 0 | 76765 | 857 |
| C | 0 | 85761 | 1575 |
| D | 0 | 160634 | 2640 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 674 | 8 |
| B | 0 | 674 | 8 |
| C | 0 | 673 | 7 |
| D | 0 | 673 | 11 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 33130 | 750 | 2.263809% |
| B | 33142 | 720 | 2.172470% |
| C | 33077 | 1291 | 3.903014% |
| D | 32964 | 10957 | 33.239291% |

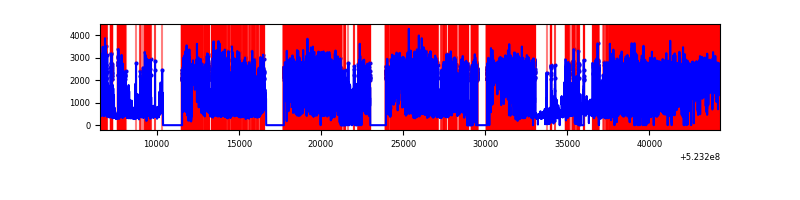

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

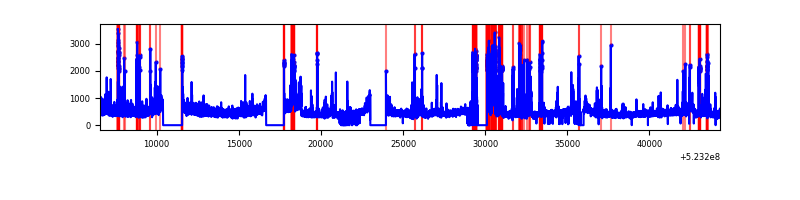

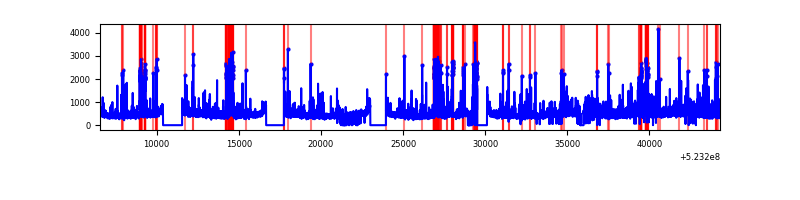

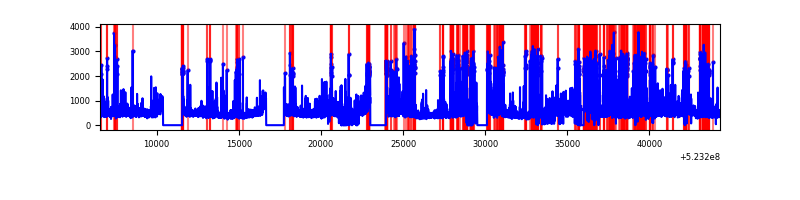

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 37734 | 33339 | 538 | 538 | 1.43% | 1.61% |  |
| B | 37734 | 33342 | 305 | 305 | 0.81% | 0.91% |  |
| C | 37735 | 33289 | 940 | 940 | 2.49% | 2.82% |  |
| D | 37734 | 33173 | 10452 | 10452 | 27.70% | 31.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1643220 | 1860.83 | 3598 | 3513 | 881.2 |
| A | 10 | 251 | 886715 | 1002.31 | 3598 | 3513 | 881.2 |
| A | 3 | 14 | 799889 | 903.77 | 3598 | 3513 | 881.2 |
| B | 5 | 185 | 1607454 | 2135.0 | 3562 | 3427 | 751.3 |
| B | 0 | 171 | 435640 | 575.29 | 3562 | 3427 | 751.3 |
| B | 0 | 186 | 287960 | 378.72 | 3562 | 3427 | 751.3 |
| C | 15 | 217 | 1467988 | 1528.88 | 3505 | 3475 | 957.9 |
| C | 12 | 254 | 1372016 | 1428.69 | 3505 | 3475 | 957.9 |
| C | 15 | 147 | 1361629 | 1417.85 | 3505 | 3475 | 957.9 |
| D | 11 | 129 | 19137445 | 23172.43 | 2920 | 2792 | 825.8 |
| D | 8 | 240 | 9189732 | 11125.56 | 2920 | 2792 | 825.8 |
| D | 2 | 249 | 2556750 | 3092.89 | 2920 | 2792 | 825.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

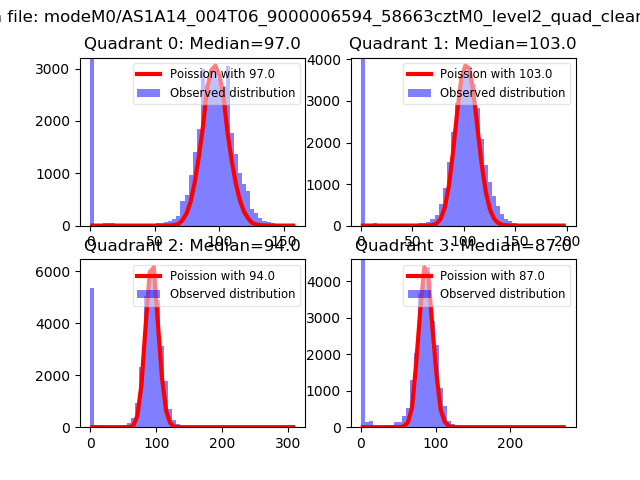

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

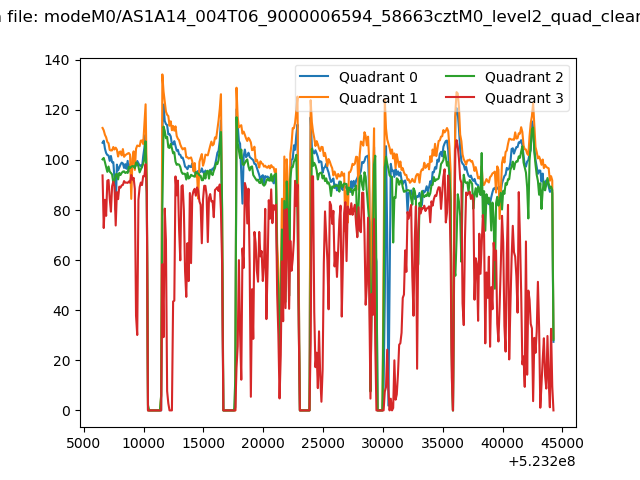

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

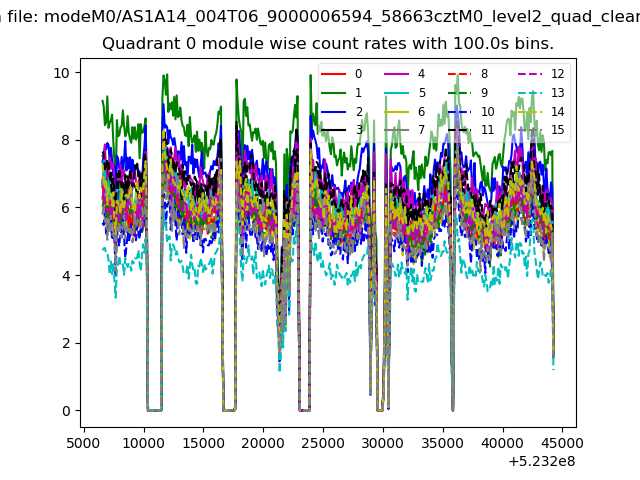

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

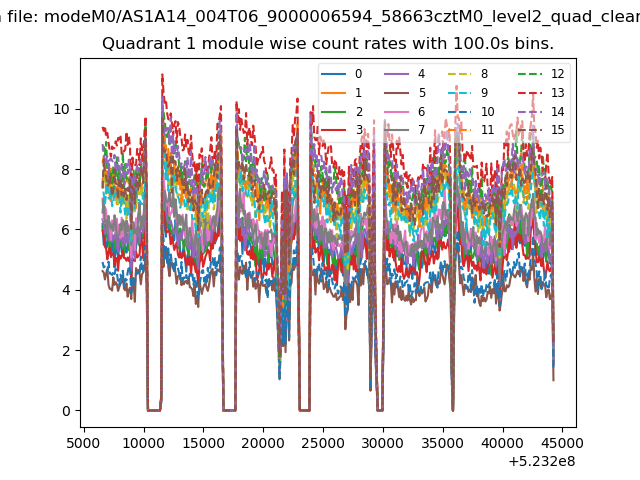

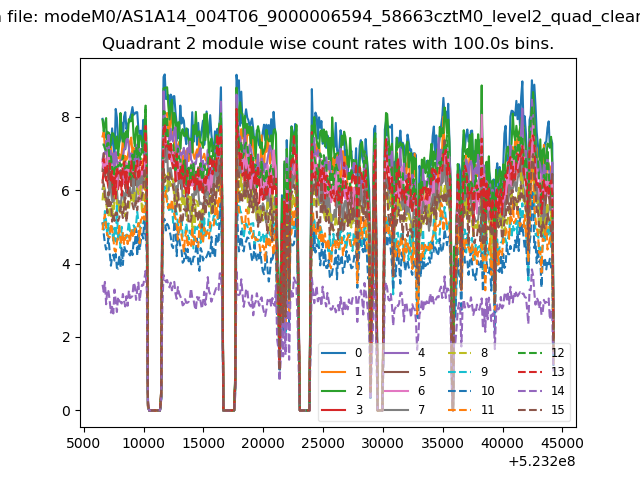

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

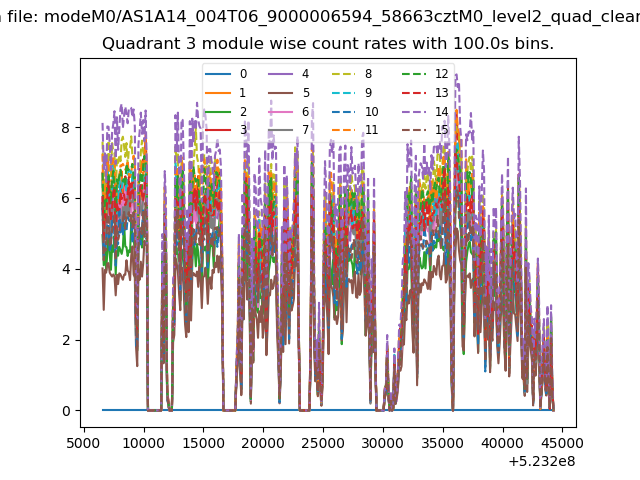

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

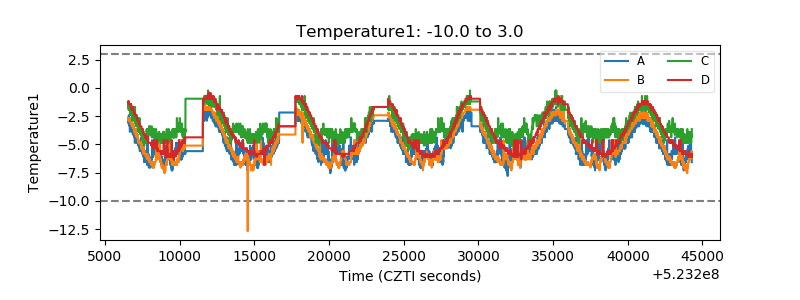

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

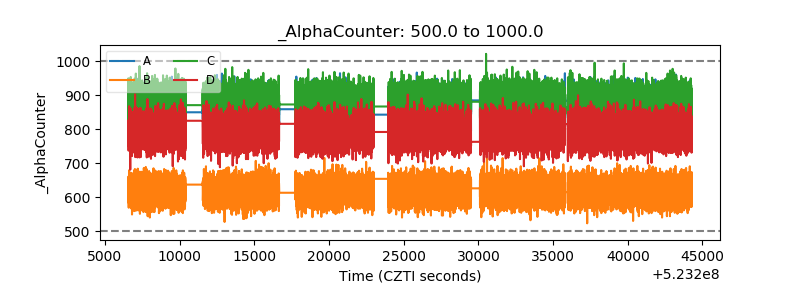

| Alpha Counter |  |

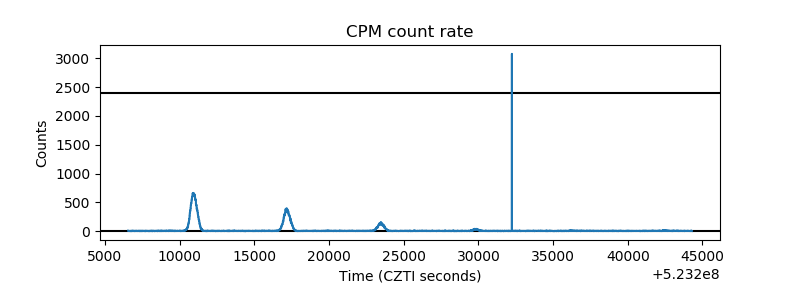

| _CPM_Rate |  |

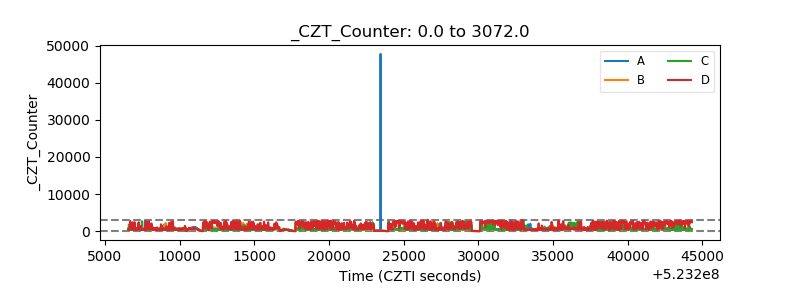

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

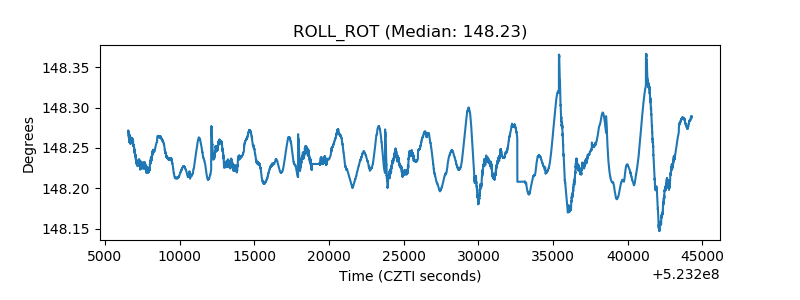

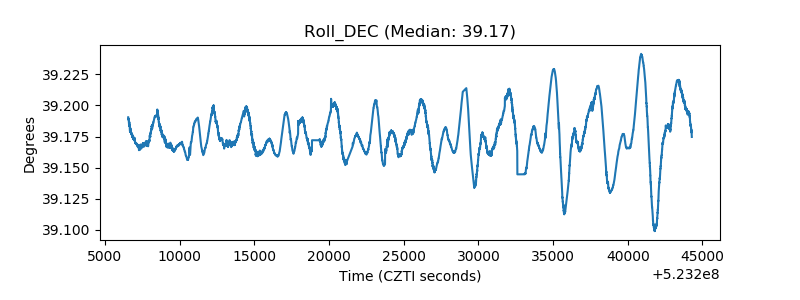

| _ROLL_ROT |  |
| _Roll_DEC |  |

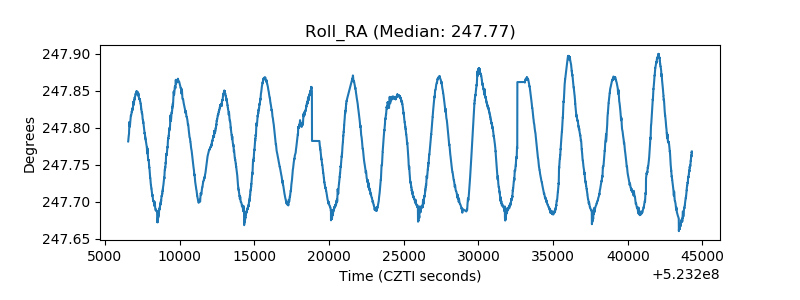

| _Roll_RA |  |

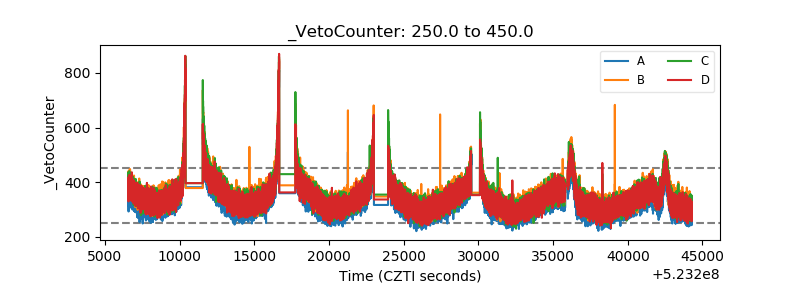

| Veto Counter |  |
