| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58668cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58668cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,380,564,800 | 390,320,640 |
| Size | 2.2 GB | 372.2 MB |
| Events in quadrant A | 18,818,187 | 2,577,537 |
| Events in quadrant B | 15,437,537 | 2,850,670 |
| Events in quadrant C | 19,124,049 | 2,444,744 |
| Events in quadrant D | 32,532,072 | 1,979,295 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 76069 | 181 |
| B | 0 | 66030 | 178 |
| C | 0 | 77461 | 226 |
| D | 0 | 116479 | 153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 584 | 4 |
| B | 0 | 584 | 2 |
| C | 0 | 584 | 0 |
| D | 0 | 584 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 28581 | 1876 | 6.563801% |
| B | 28583 | 1011 | 3.537067% |
| C | 28572 | 2364 | 8.273835% |
| D | 28592 | 6493 | 22.709149% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

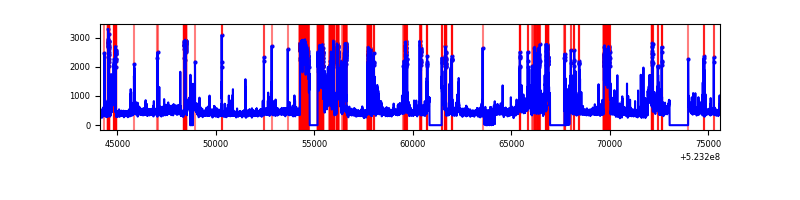

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 31502 | 28632 | 1451 | 1451 | 4.61% | 5.07% |  |
| B | 31502 | 28630 | 353 | 353 | 1.12% | 1.23% |  |
| C | 31502 | 28626 | 1761 | 1761 | 5.59% | 6.15% |  |
| D | 31503 | 28645 | 6182 | 6182 | 19.62% | 21.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 6132768 | 8050.38 | 3095 | 3016 | 761.4 |
| A | 10 | 251 | 345611 | 449.94 | 3095 | 3016 | 761.4 |
| A | 12 | 114 | 183826 | 237.46 | 3095 | 3016 | 761.4 |
| B | 5 | 185 | 1216620 | 1828.59 | 3102 | 2977 | 663.7 |
| B | 0 | 171 | 545855 | 817.95 | 3102 | 2977 | 663.7 |
| B | 5 | 172 | 344812 | 515.04 | 3102 | 2977 | 663.7 |
| C | 15 | 147 | 2519634 | 3112.6 | 2963 | 2939 | 808.5 |
| C | 15 | 217 | 1817474 | 2244.18 | 2963 | 2939 | 808.5 |
| C | 12 | 250 | 672574 | 828.19 | 2963 | 2939 | 808.5 |
| D | 2 | 249 | 14124850 | 18262.14 | 2738 | 2621 | 773.3 |
| D | 8 | 240 | 3319177 | 4288.8 | 2738 | 2621 | 773.3 |
| D | 11 | 129 | 2057488 | 2657.25 | 2738 | 2621 | 773.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

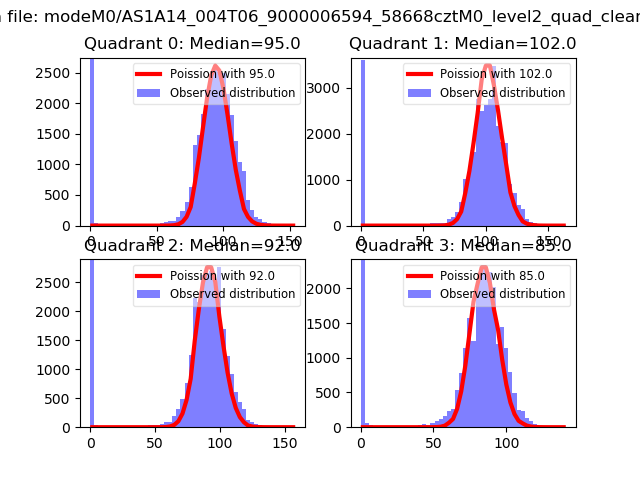

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

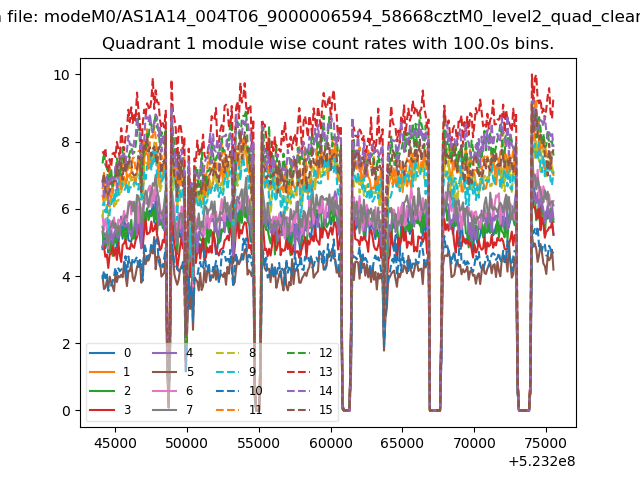

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

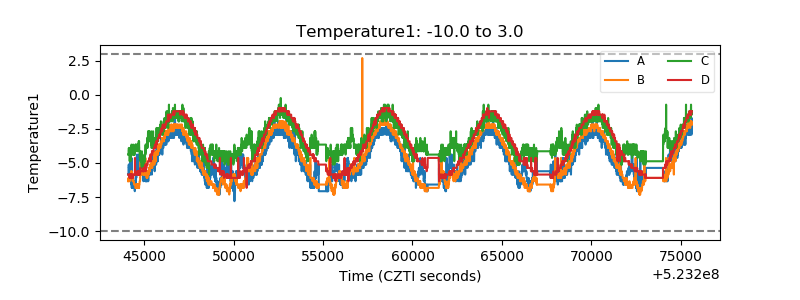

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

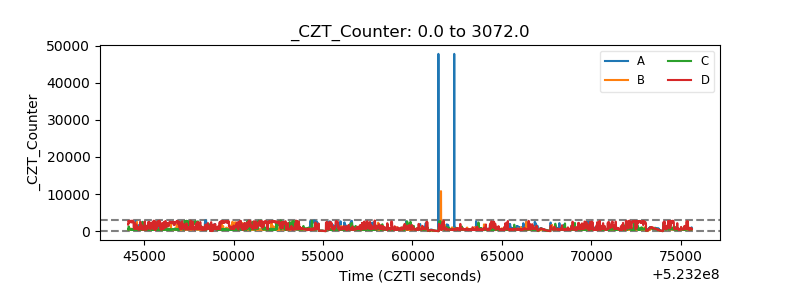

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

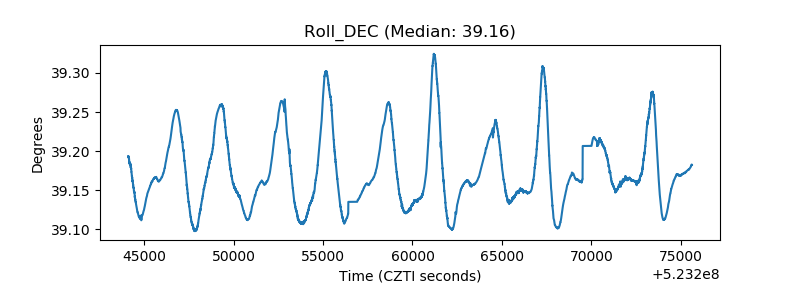

| _Roll_DEC |  |

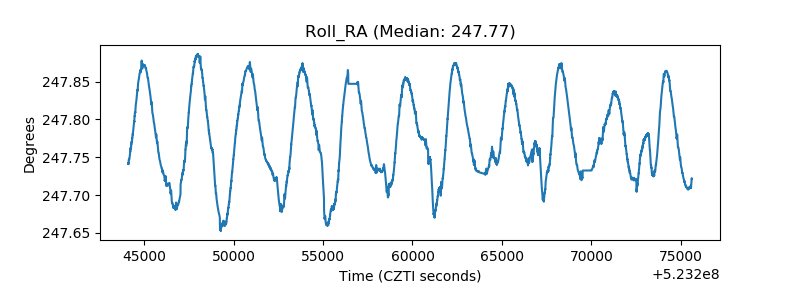

| _Roll_RA |  |
| Veto Counter |  |
