| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58670cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58670cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,228,800 | 91,422,720 |
| Size | 573.4 MB | 87.2 MB |
| Events in quadrant A | 3,327,129 | 650,759 |
| Events in quadrant B | 3,828,481 | 684,088 |
| Events in quadrant C | 3,558,240 | 621,059 |
| Events in quadrant D | 11,033,820 | 356,595 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14511 | 1 |
| B | 0 | 15949 | 1 |
| C | 0 | 15154 | 1 |
| D | 0 | 37255 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6534 | 122 | 1.867156% |
| B | 6535 | 251 | 3.840857% |
| C | 6535 | 149 | 2.280031% |
| D | 6535 | 2918 | 44.651875% |

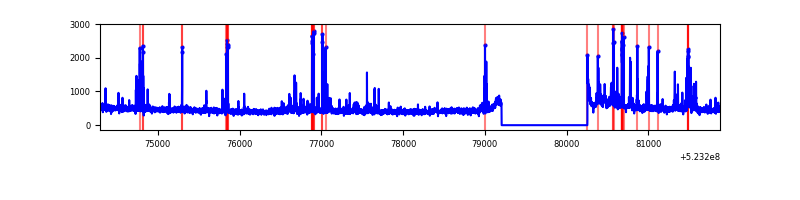

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

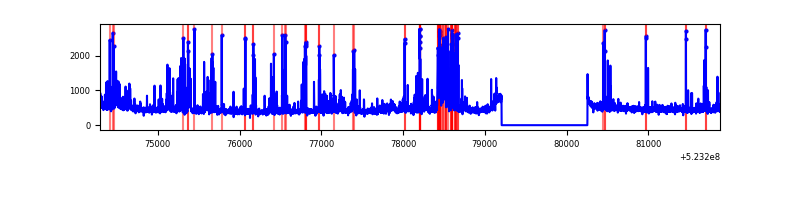

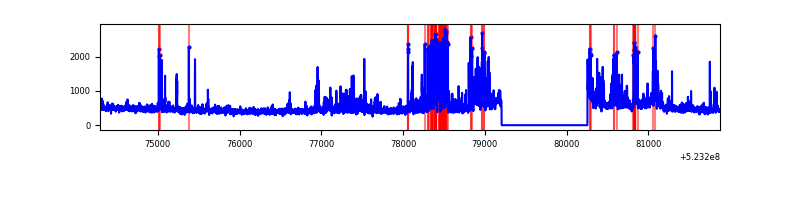

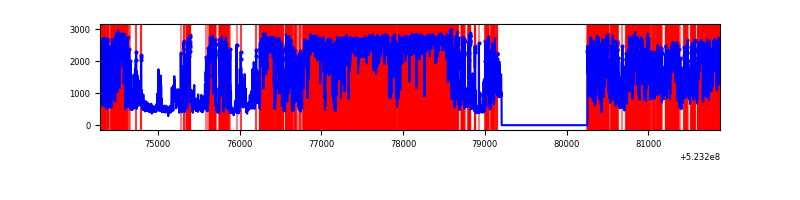

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7584 | 6534 | 45 | 45 | 0.59% | 0.69% |  |
| B | 7584 | 6534 | 97 | 97 | 1.28% | 1.48% |  |
| C | 7585 | 6535 | 84 | 84 | 1.11% | 1.29% |  |
| D | 7585 | 6535 | 2934 | 2934 | 38.68% | 44.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 123425 | 671.3 | 738 | 719 | 182.8 |
| A | 12 | 114 | 89452 | 485.44 | 738 | 719 | 182.8 |
| A | 4 | 249 | 88551 | 480.51 | 738 | 719 | 182.8 |
| B | 5 | 185 | 657295 | 4265.44 | 717 | 689 | 153.9 |
| B | 0 | 171 | 114530 | 739.53 | 717 | 689 | 153.9 |
| B | 8 | 234 | 107687 | 695.08 | 717 | 689 | 153.9 |
| C | 12 | 249 | 290667 | 1485.88 | 711 | 703 | 195.1 |
| C | 14 | 254 | 138090 | 704.02 | 711 | 703 | 195.1 |
| C | 15 | 147 | 130199 | 663.59 | 711 | 703 | 195.1 |
| D | 2 | 249 | 6673344 | 40579.88 | 577 | 552 | 164.4 |
| D | 8 | 240 | 994014 | 6041.63 | 577 | 552 | 164.4 |
| D | 8 | 160 | 965656 | 5869.18 | 577 | 552 | 164.4 |

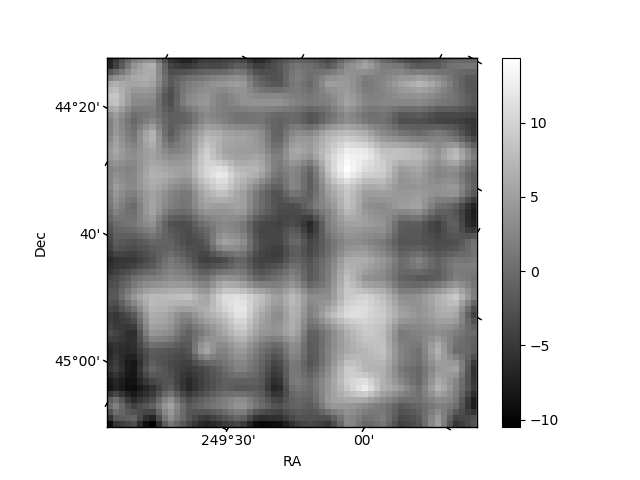

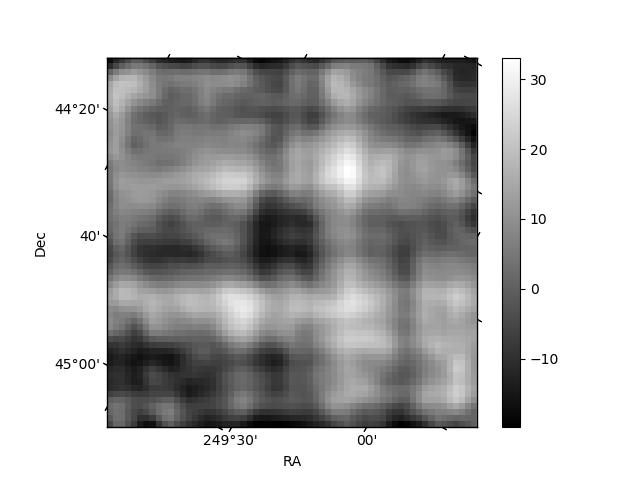

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

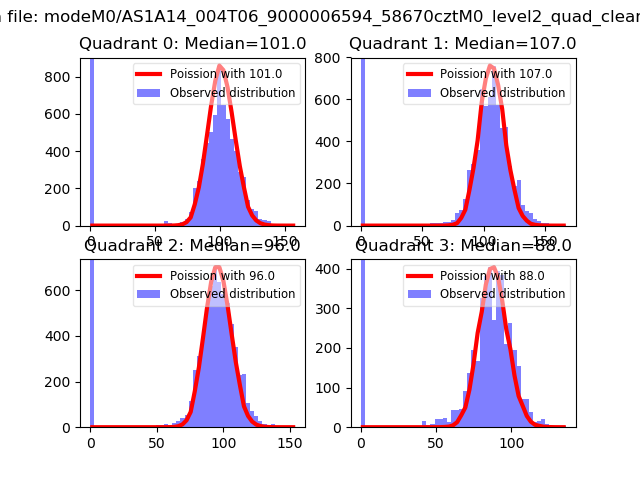

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

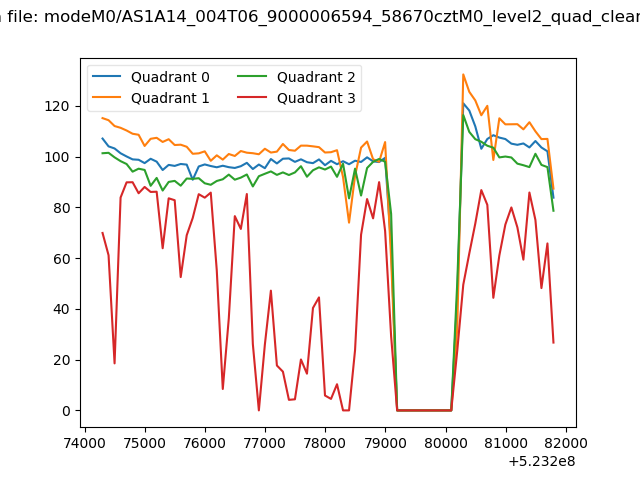

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

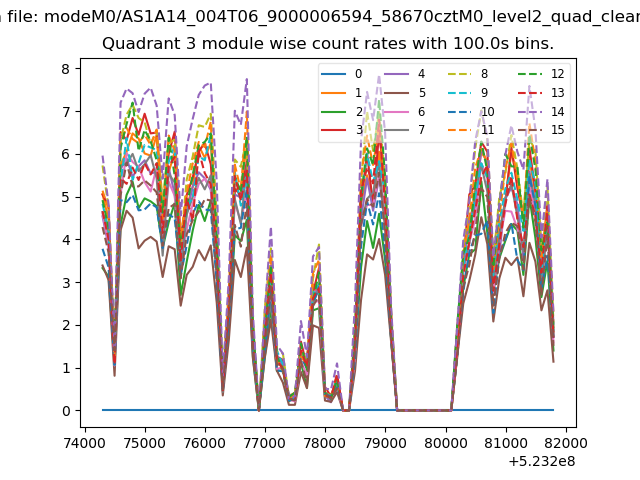

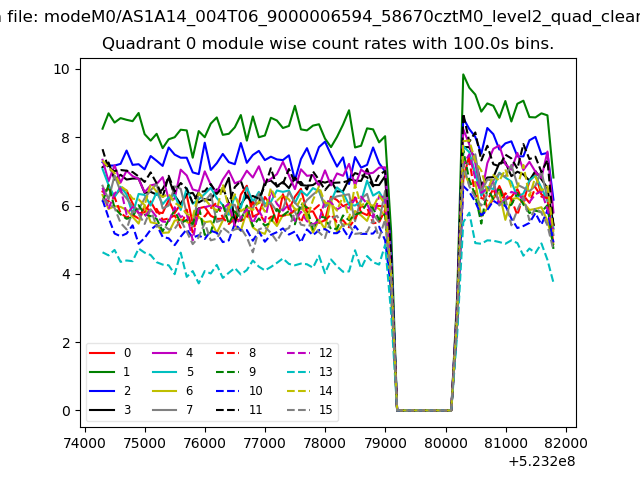

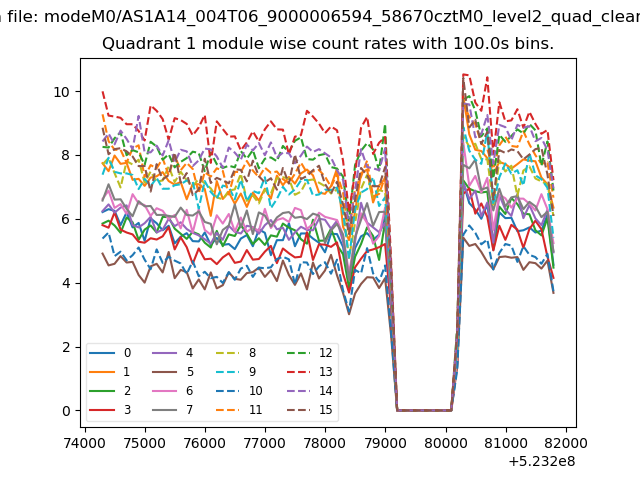

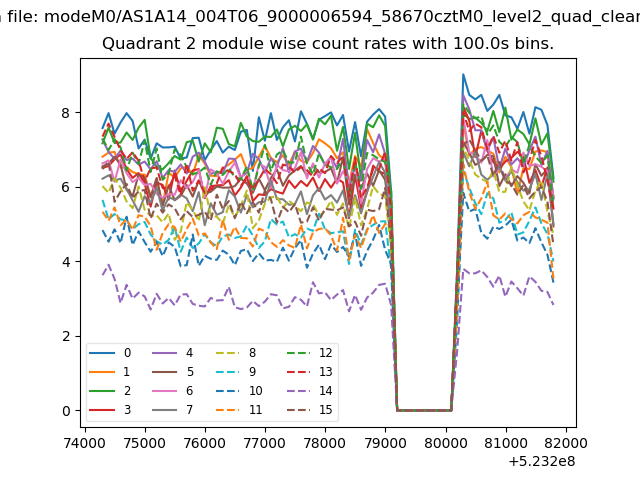

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

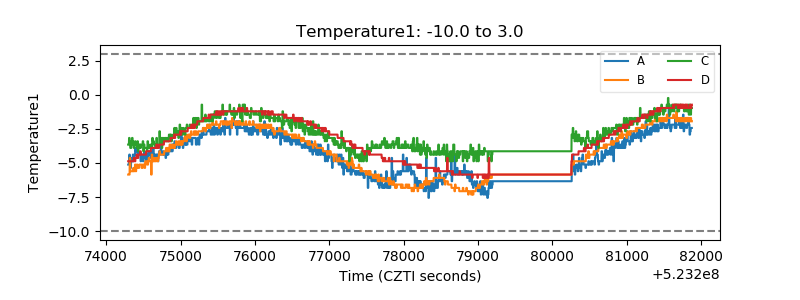

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

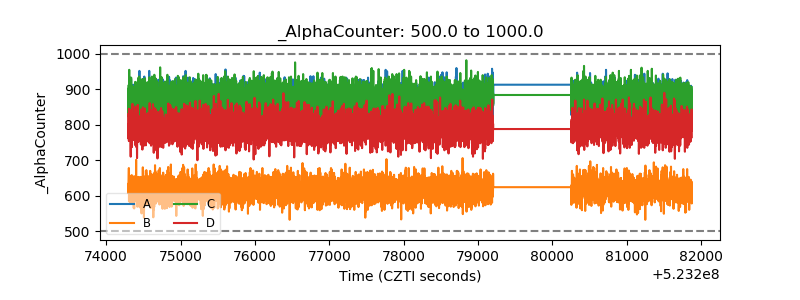

| Alpha Counter |  |

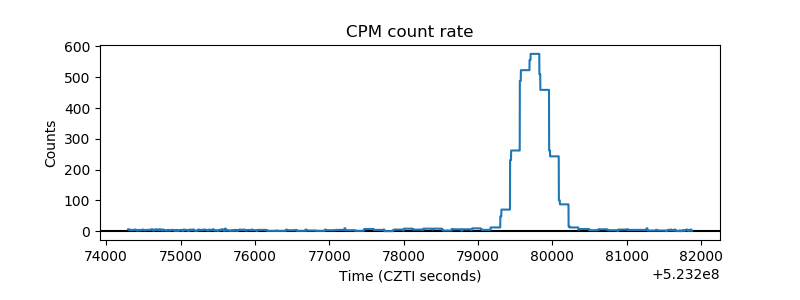

| _CPM_Rate |  |

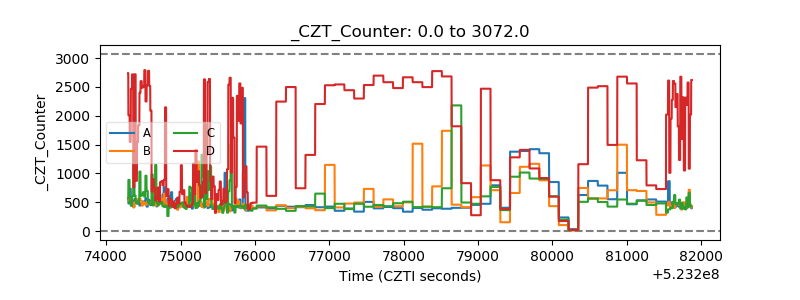

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

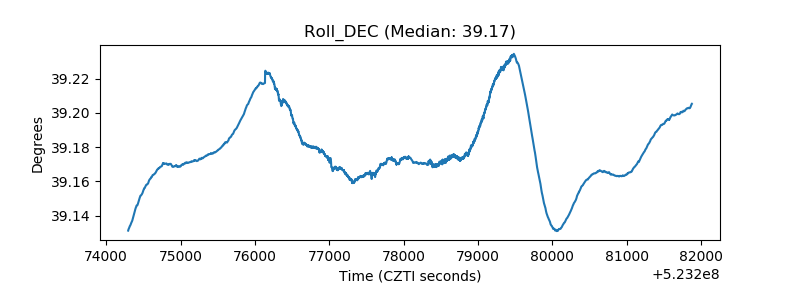

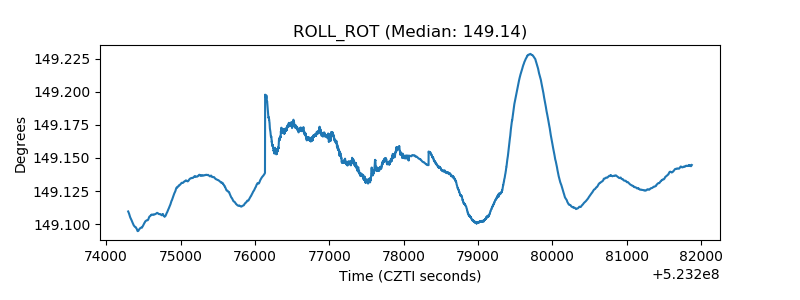

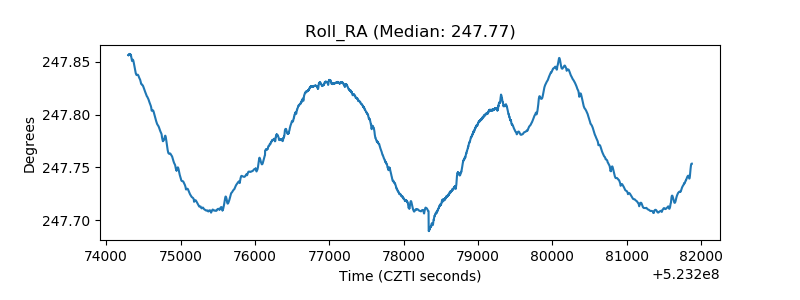

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

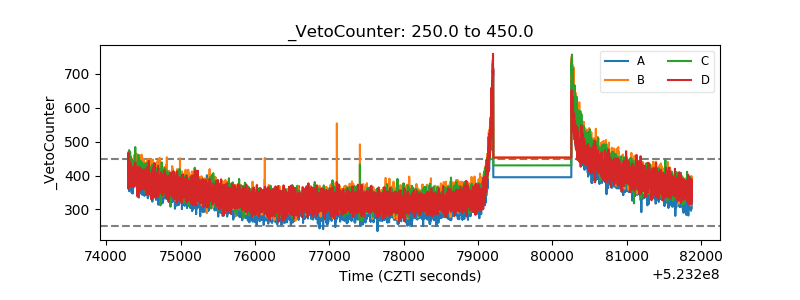

| Veto Counter |  |
