| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58673cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58673cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,560,000 | 92,393,280 |
| Size | 436.4 MB | 88.1 MB |
| Events in quadrant A | 3,354,151 | 612,368 |
| Events in quadrant B | 3,130,064 | 661,878 |
| Events in quadrant C | 2,945,263 | 604,543 |
| Events in quadrant D | 7,036,200 | 494,941 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14383 | 6 |
| B | 0 | 13460 | 1 |
| C | 0 | 13017 | 3 |
| D | 0 | 25168 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6069 | 197 | 3.246004% |
| B | 6070 | 73 | 1.202636% |
| C | 6069 | 63 | 1.038062% |
| D | 6068 | 890 | 14.667106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

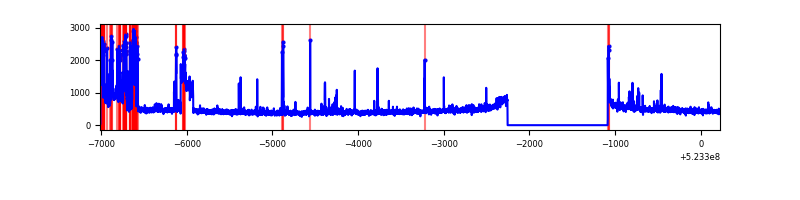

| A | 7240 | 6071 | 128 | 128 | 1.77% | 2.11% |  |
| B | 7240 | 6071 | 15 | 15 | 0.21% | 0.25% |  |
| C | 7240 | 6071 | 24 | 24 | 0.33% | 0.40% |  |

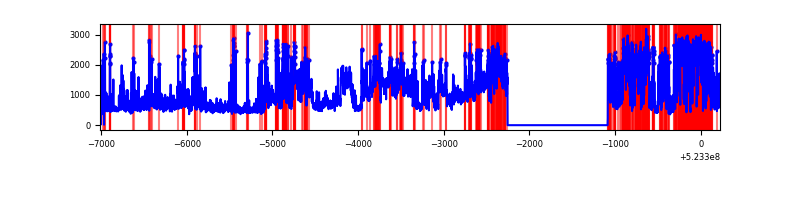

| D | 7240 | 6071 | 775 | 775 | 10.70% | 12.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 341031 | 2027.59 | 678 | 663 | 167.9 |
| A | 10 | 17 | 218900 | 1300.05 | 678 | 663 | 167.9 |
| A | 10 | 251 | 67449 | 397.85 | 678 | 663 | 167.9 |
| B | 8 | 234 | 128816 | 893.01 | 671 | 645 | 143.5 |
| B | 0 | 186 | 79154 | 547.0 | 671 | 645 | 143.5 |
| B | 0 | 171 | 68689 | 474.09 | 671 | 645 | 143.5 |
| C | 12 | 254 | 89342 | 477.53 | 672 | 664 | 185.7 |
| C | 1 | 12 | 68453 | 365.05 | 672 | 664 | 185.7 |
| C | 14 | 254 | 39932 | 211.46 | 672 | 664 | 185.7 |
| D | 2 | 62 | 1925419 | 10785.29 | 622 | 593 | 178.5 |
| D | 2 | 249 | 1852574 | 10377.13 | 622 | 593 | 178.5 |
| D | 8 | 240 | 543255 | 3040.67 | 622 | 593 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

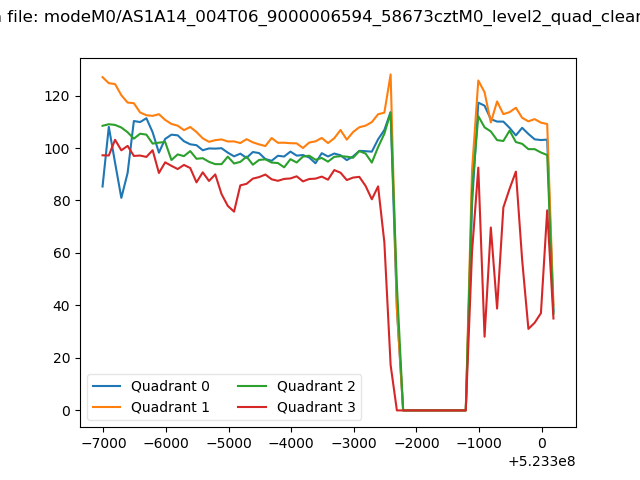

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

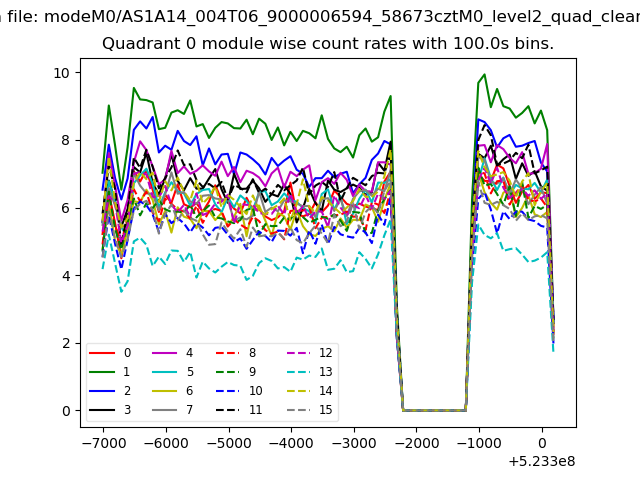

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

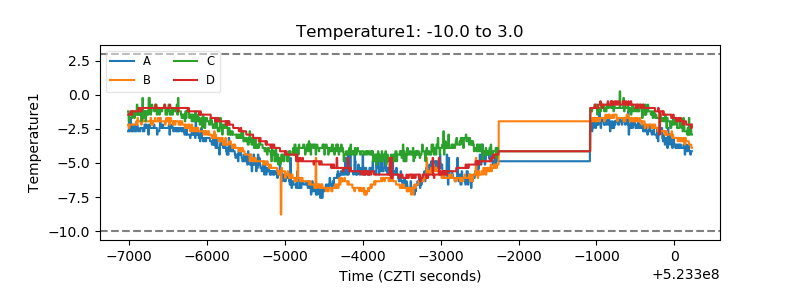

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

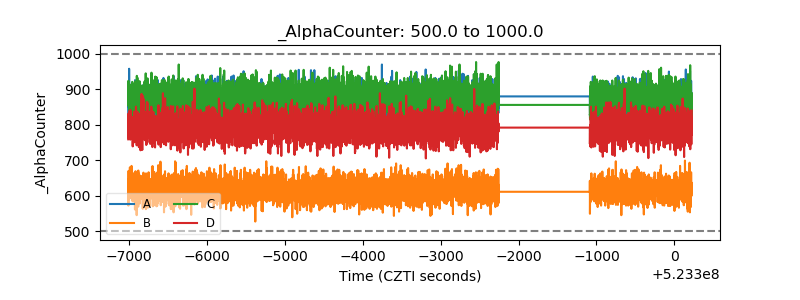

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

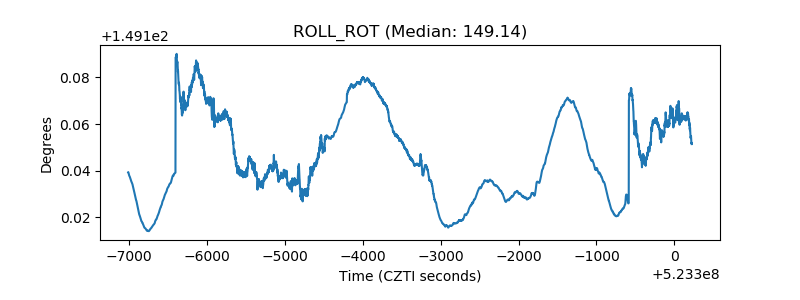

| _ROLL_ROT |  |

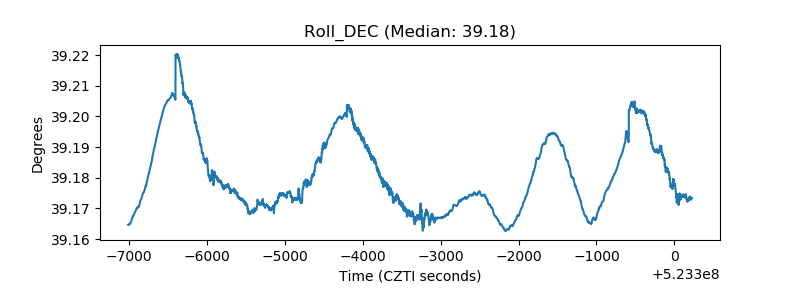

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
