| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58676cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58676cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,714,560 | 108,267,840 |
| Size | 442.2 MB | 103.3 MB |
| Events in quadrant A | 4,468,062 | 675,210 |
| Events in quadrant B | 4,741,002 | 726,962 |
| Events in quadrant C | 3,499,669 | 701,674 |
| Events in quadrant D | 3,872,090 | 651,895 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18780 | 13 |
| B | 0 | 19505 | 28 |
| C | 0 | 16038 | 14 |
| D | 0 | 17032 | 10 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7509 | 468 | 6.232521% |
| B | 7509 | 529 | 7.044879% |
| C | 7510 | 39 | 0.519308% |
| D | 7510 | 126 | 1.677763% |

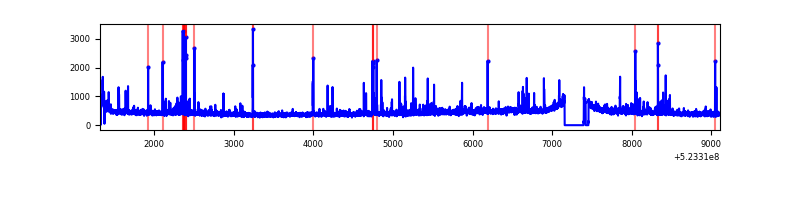

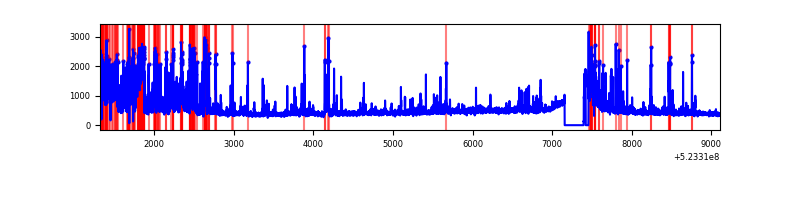

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7788 | 7515 | 388 | 388 | 4.98% | 5.16% |  |
| B | 7788 | 7515 | 224 | 224 | 2.88% | 2.98% |  |
| C | 7788 | 7515 | 25 | 25 | 0.32% | 0.33% |  |
| D | 7787 | 7513 | 86 | 86 | 1.10% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1043626 | 5340.1 | 786 | 765 | 195.3 |
| A | 10 | 251 | 240889 | 1229.58 | 786 | 765 | 195.3 |
| A | 0 | 24 | 59489 | 300.7 | 786 | 765 | 195.3 |
| B | 5 | 172 | 1158867 | 6857.1 | 785 | 756 | 168.9 |
| B | 6 | 255 | 115454 | 679.12 | 785 | 756 | 168.9 |
| B | 0 | 186 | 92006 | 540.29 | 785 | 756 | 168.9 |
| C | 14 | 254 | 85710 | 381.72 | 809 | 803 | 222.4 |
| C | 12 | 249 | 84312 | 375.44 | 809 | 803 | 222.4 |
| C | 3 | 30 | 65372 | 290.29 | 809 | 803 | 222.4 |
| D | 1 | 27 | 438558 | 1925.93 | 800 | 763 | 227.3 |
| D | 8 | 240 | 70350 | 306.12 | 800 | 763 | 227.3 |
| D | 12 | 128 | 60734 | 263.82 | 800 | 763 | 227.3 |

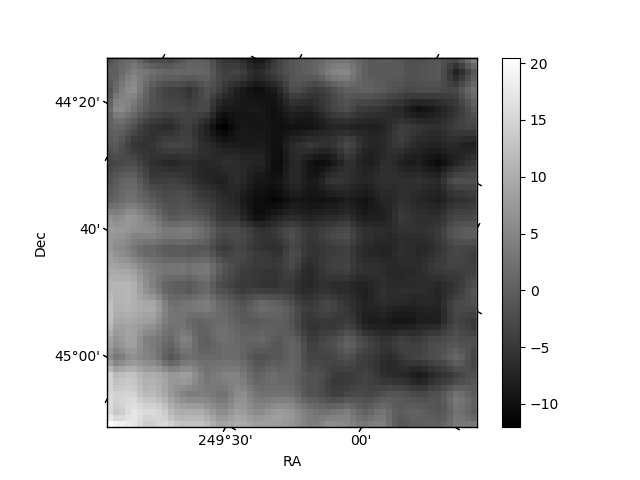

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

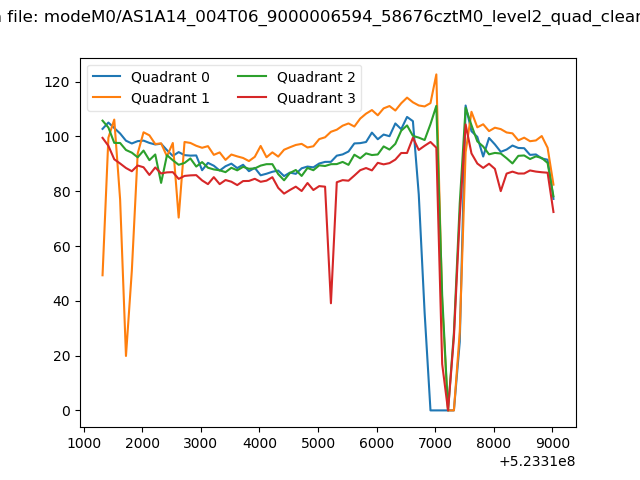

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

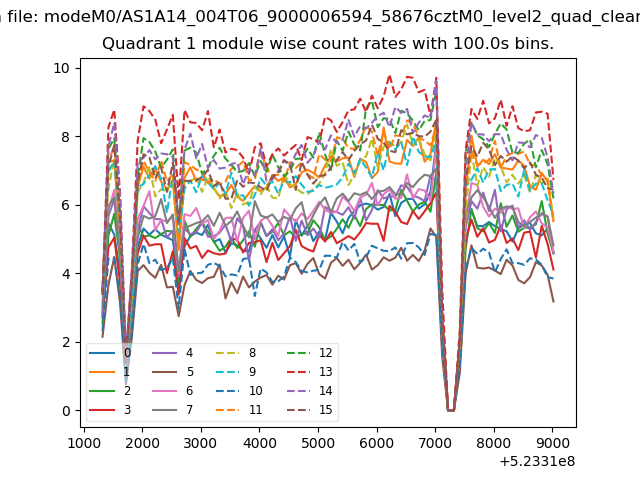

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

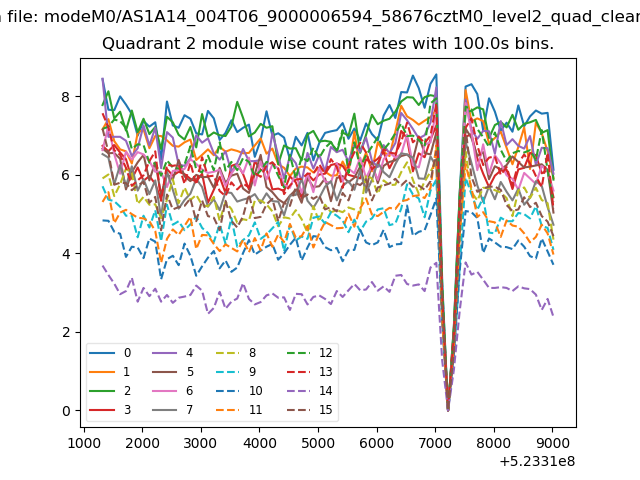

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

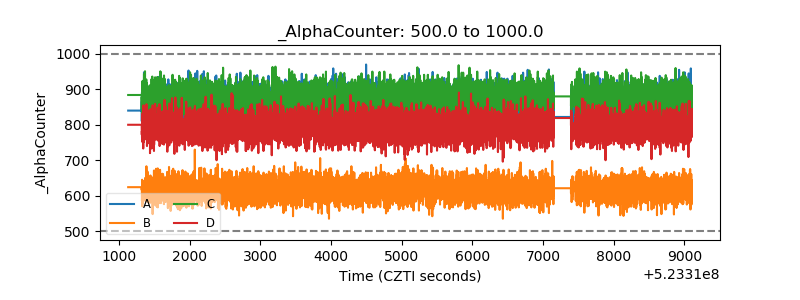

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

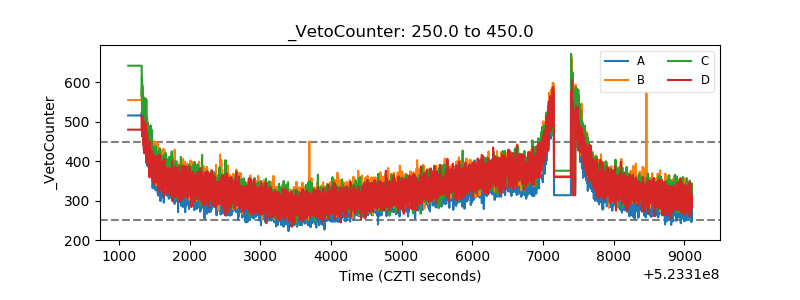

| Veto Counter |  |
