| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58677cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58677cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,484,400,960 | 347,840,640 |
| Size | 1.4 GB | 331.7 MB |
| Events in quadrant A | 12,670,308 | 2,258,129 |
| Events in quadrant B | 16,125,629 | 2,317,829 |
| Events in quadrant C | 11,500,518 | 2,239,730 |
| Events in quadrant D | 12,803,247 | 2,074,332 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55497 | 132 |
| B | 0 | 65015 | 176 |
| C | 0 | 51929 | 120 |
| D | 0 | 56185 | 573 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 488 | 2 |
| B | 0 | 488 | 2 |
| C | 0 | 488 | 2 |
| D | 0 | 488 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23865 | 706 | 2.958307% |
| B | 23859 | 1920 | 8.047278% |
| C | 23868 | 207 | 0.867270% |
| D | 23837 | 566 | 2.374460% |

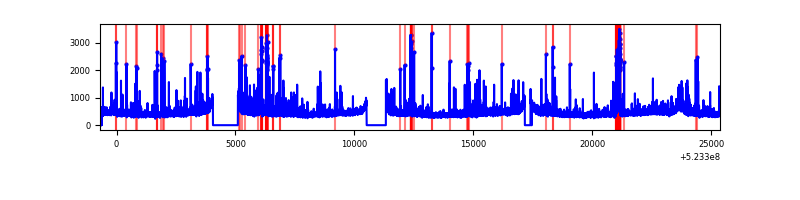

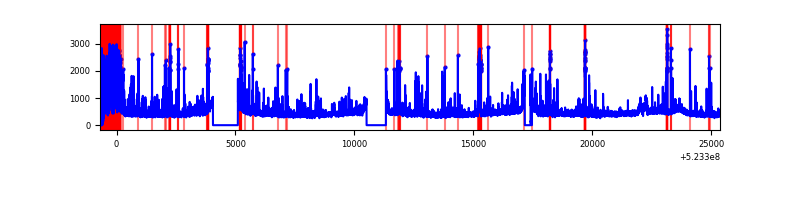

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26054 | 23886 | 534 | 534 | 2.05% | 2.24% |  |
| B | 26038 | 23883 | 1170 | 1170 | 4.49% | 4.90% |  |
| C | 26041 | 23885 | 160 | 160 | 0.61% | 0.67% |  |
| D | 26032 | 23852 | 495 | 495 | 1.90% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 1616929 | 2563.21 | 2559 | 2491 | 629.8 |
| A | 10 | 251 | 481937 | 761.21 | 2559 | 2491 | 629.8 |
| A | 0 | 24 | 168049 | 262.85 | 2559 | 2491 | 629.8 |
| B | 5 | 172 | 4836107 | 9168.94 | 2494 | 2400 | 527.2 |
| B | 8 | 234 | 429954 | 811.02 | 2494 | 2400 | 527.2 |
| B | 0 | 186 | 231210 | 434.02 | 2494 | 2400 | 527.2 |
| C | 14 | 254 | 420726 | 597.89 | 2554 | 2528 | 699.5 |
| C | 12 | 249 | 376225 | 534.27 | 2554 | 2528 | 699.5 |
| C | 12 | 252 | 179036 | 252.35 | 2554 | 2528 | 699.5 |
| D | 2 | 249 | 1059174 | 1476.76 | 2515 | 2398 | 715.6 |
| D | 1 | 27 | 619927 | 862.95 | 2515 | 2398 | 715.6 |
| D | 7 | 222 | 278789 | 386.23 | 2515 | 2398 | 715.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

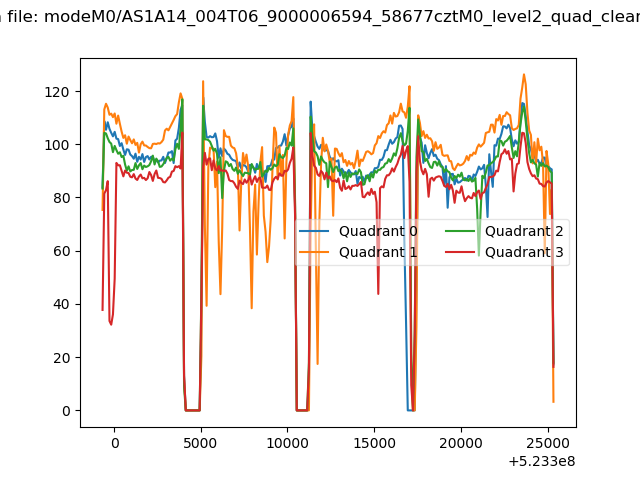

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

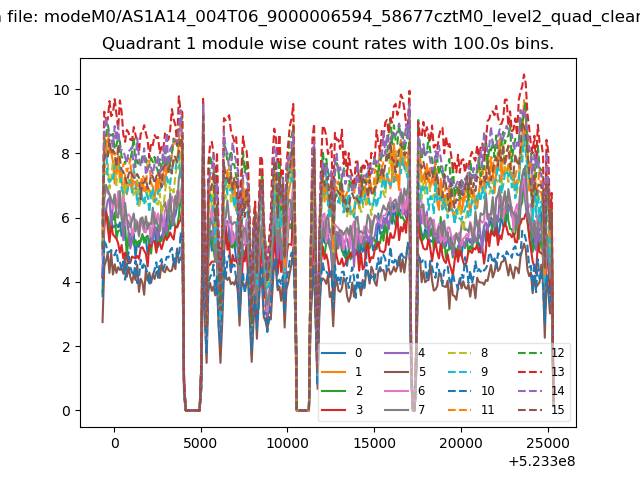

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

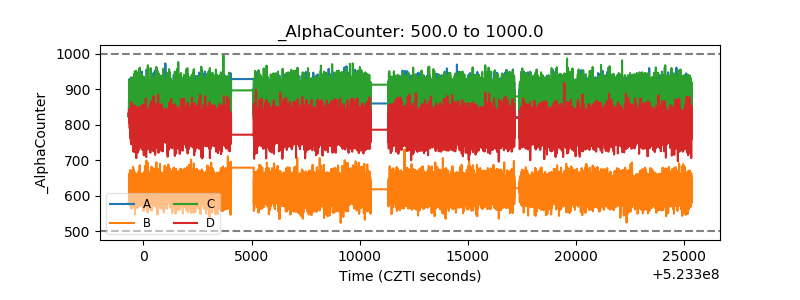

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
