| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58678cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58678cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,715,520 | 131,486,400 |
| Size | 565.3 MB | 125.4 MB |
| Events in quadrant A | 4,217,475 | 882,322 |
| Events in quadrant B | 7,854,009 | 806,340 |
| Events in quadrant C | 4,645,525 | 852,977 |
| Events in quadrant D | 4,513,306 | 805,128 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19234 | 1 |
| B | 0 | 29521 | 1 |
| C | 0 | 20403 | 1 |
| D | 0 | 20145 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9140 | 30 | 0.328228% |
| B | 9140 | 1438 | 15.733042% |
| C | 9140 | 108 | 1.181619% |
| D | 9140 | 65 | 0.711160% |

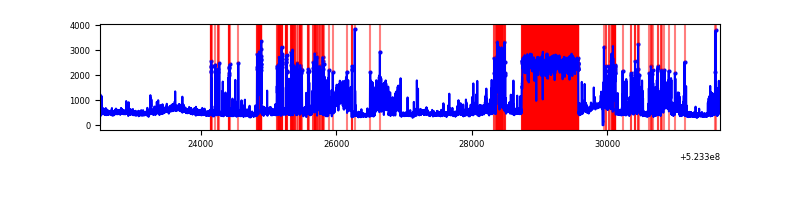

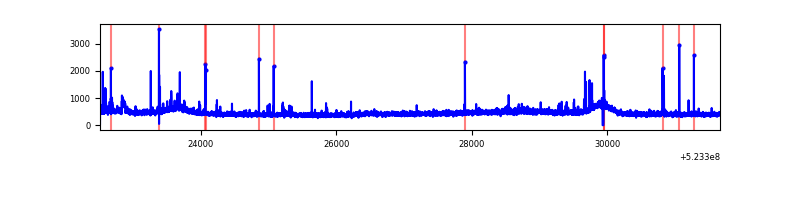

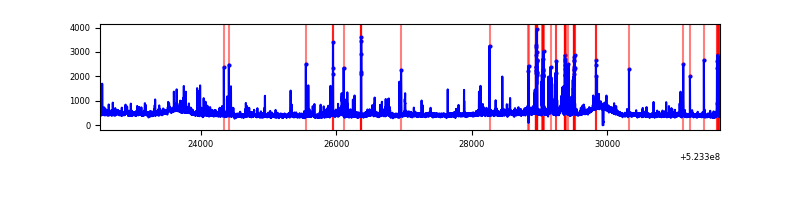

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9155 | 9141 | 12 | 12 | 0.13% | 0.13% |  |
| B | 9155 | 9141 | 1058 | 1058 | 11.56% | 11.57% |  |
| C | 9155 | 9141 | 78 | 78 | 0.85% | 0.85% |  |
| D | 9155 | 9141 | 58 | 58 | 0.63% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 85661 | 336.37 | 1019 | 991 | 251.7 |
| A | 3 | 14 | 81344 | 319.22 | 1019 | 991 | 251.7 |
| A | 10 | 17 | 53214 | 207.46 | 1019 | 991 | 251.7 |
| B | 5 | 172 | 1928917 | 9538.25 | 942 | 904 | 202.1 |
| B | 15 | 32 | 1815933 | 8979.29 | 942 | 904 | 202.1 |
| B | 0 | 186 | 81860 | 400.5 | 942 | 904 | 202.1 |
| C | 12 | 249 | 249232 | 904.97 | 1004 | 999 | 274.3 |
| C | 14 | 254 | 124718 | 451.03 | 1004 | 999 | 274.3 |
| C | 15 | 217 | 84701 | 305.15 | 1004 | 999 | 274.3 |
| D | 8 | 240 | 210416 | 746.14 | 997 | 954 | 280.7 |
| D | 7 | 222 | 101830 | 359.34 | 997 | 954 | 280.7 |
| D | 1 | 27 | 101260 | 357.31 | 997 | 954 | 280.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

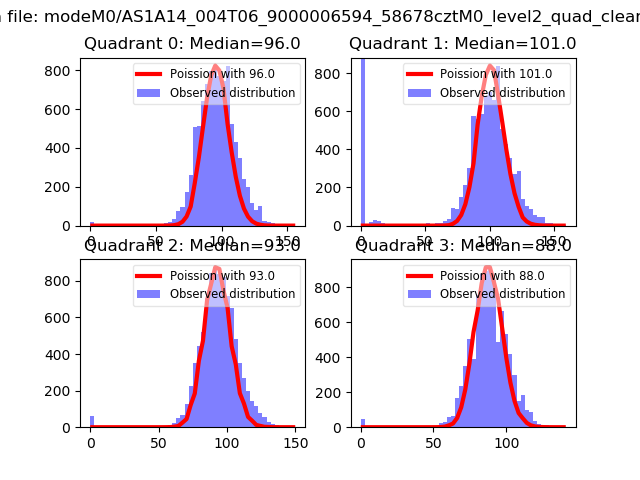

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

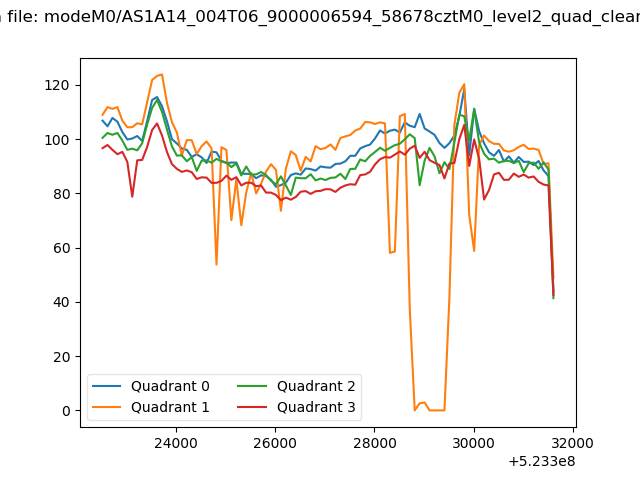

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

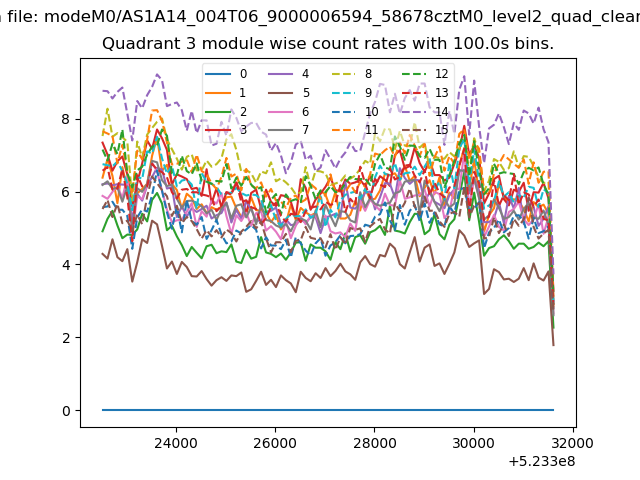

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

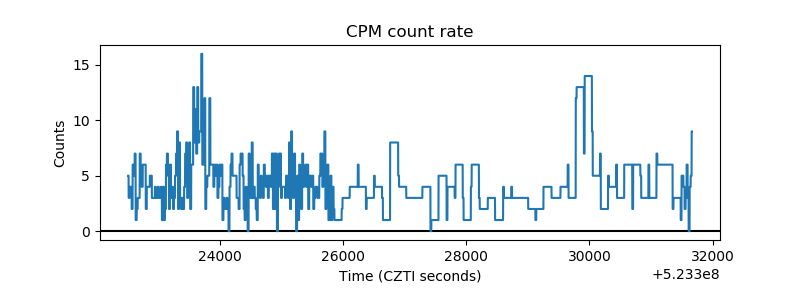

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

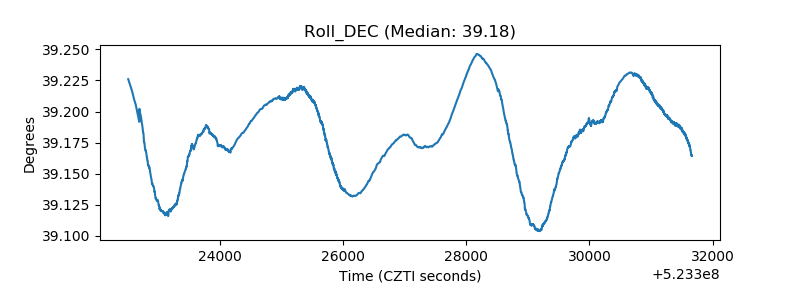

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
