| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58685cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58685cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,575,909,440 | 411,600,960 |
| Size | 2.4 GB | 392.5 MB |
| Events in quadrant A | 16,303,711 | 2,795,592 |
| Events in quadrant B | 30,138,795 | 2,632,386 |
| Events in quadrant C | 15,139,937 | 2,763,962 |
| Events in quadrant D | 31,462,514 | 2,216,545 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69952 | 6 |
| B | 0 | 109940 | 6 |
| C | 0 | 65451 | 6 |
| D | 0 | 114417 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 610 | 0 |
| B | 0 | 610 | 0 |
| C | 0 | 610 | 0 |
| D | 0 | 610 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29861 | 1397 | 4.678343% |
| B | 29862 | 5771 | 19.325564% |
| C | 29862 | 530 | 1.774831% |
| D | 29862 | 5313 | 17.791842% |

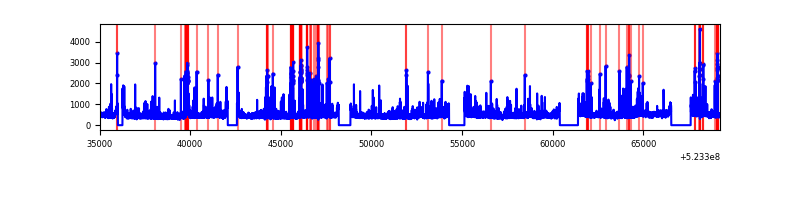

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 34201 | 29867 | 914 | 914 | 2.67% | 3.06% |  |
| B | 34201 | 29867 | 3478 | 3478 | 10.17% | 11.64% |  |
| C | 34201 | 29867 | 157 | 157 | 0.46% | 0.53% |  |
| D | 34201 | 29867 | 4385 | 4385 | 12.82% | 14.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 2748507 | 3424.18 | 3285 | 3203 | 801.7 |
| A | 10 | 251 | 362488 | 448.13 | 3285 | 3203 | 801.7 |
| A | 3 | 14 | 171127 | 209.45 | 3285 | 3203 | 801.7 |
| B | 5 | 172 | 16309777 | 24848.77 | 3071 | 2950 | 656.2 |
| B | 15 | 32 | 445357 | 674.15 | 3071 | 2950 | 656.2 |
| B | 8 | 234 | 350325 | 529.34 | 3071 | 2950 | 656.2 |
| C | 15 | 1 | 674141 | 763.53 | 3244 | 3215 | 878.7 |
| C | 14 | 254 | 480079 | 542.68 | 3244 | 3215 | 878.7 |
| C | 1 | 12 | 395310 | 446.21 | 3244 | 3215 | 878.7 |
| D | 2 | 249 | 8714768 | 10355.16 | 2987 | 2855 | 841.3 |
| D | 8 | 160 | 3974039 | 4720.23 | 2987 | 2855 | 841.3 |
| D | 14 | 49 | 2390946 | 2838.53 | 2987 | 2855 | 841.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

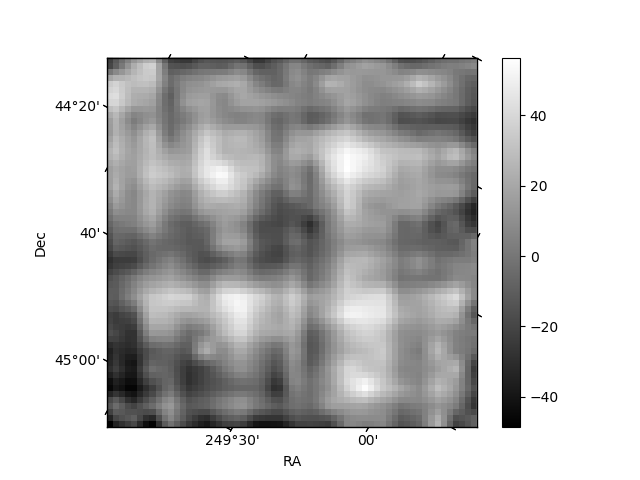

| Plot type | Count rate plots | Images |
|---|---|---|

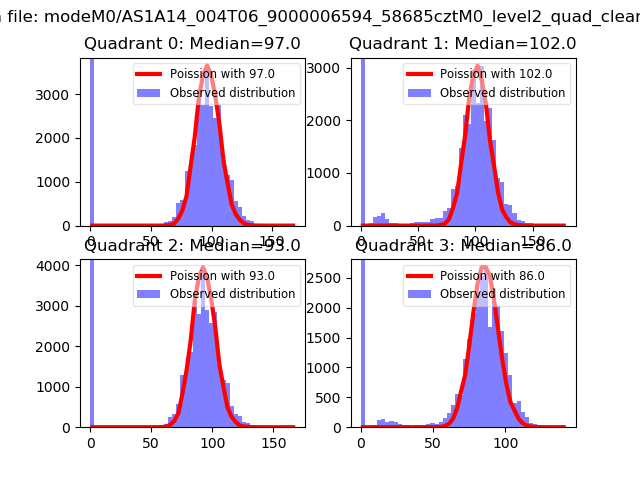

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

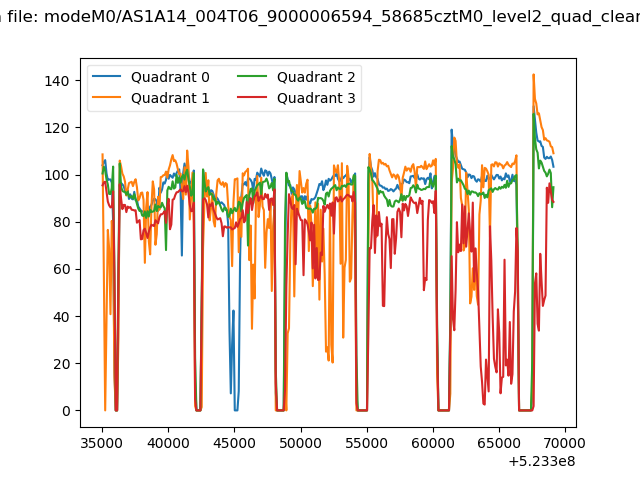

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

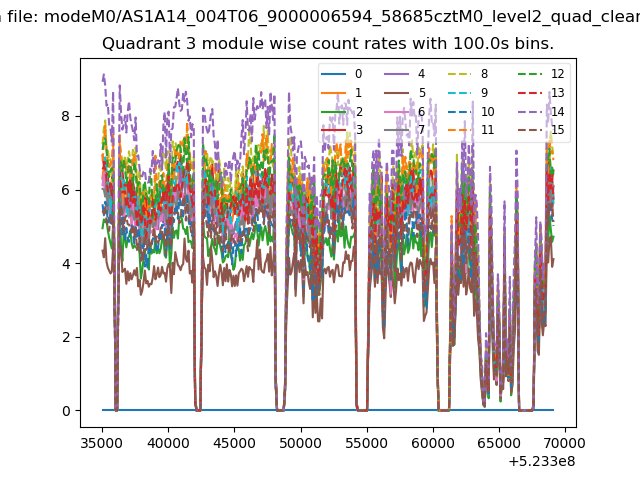

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

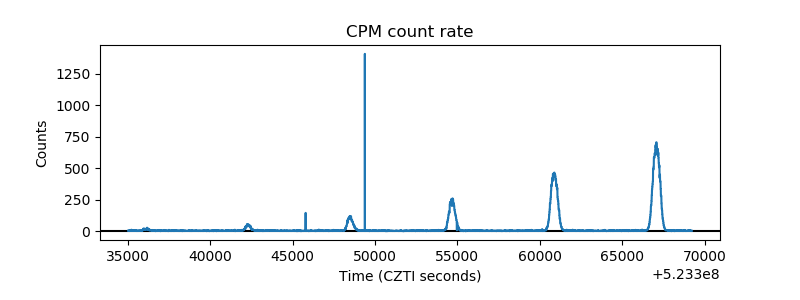

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

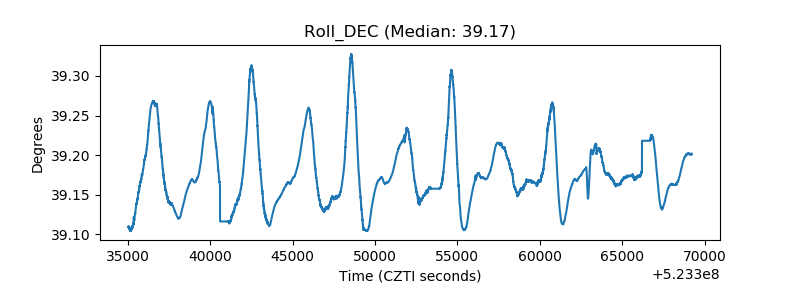

| _Roll_DEC |  |
| _Roll_RA |  |

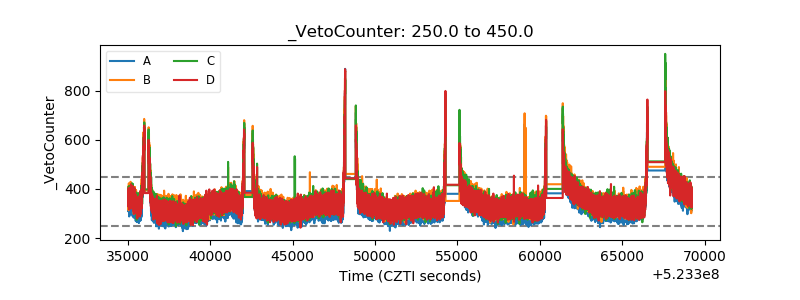

| Veto Counter |  |
