| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58686cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58686cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,497,553,280 | 406,457,280 |
| Size | 2.3 GB | 387.6 MB |
| Events in quadrant A | 15,647,421 | 2,775,814 |
| Events in quadrant B | 27,008,271 | 2,664,102 |
| Events in quadrant C | 15,015,471 | 2,726,689 |
| Events in quadrant D | 32,537,863 | 2,143,897 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 67282 | 32 |
| B | 0 | 100057 | 44 |
| C | 0 | 63946 | 40 |
| D | 0 | 117199 | 172 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 592 | 0 |
| B | 0 | 592 | 0 |
| C | 0 | 592 | 0 |
| D | 0 | 592 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53 | 0 |
| B | 0 | 53 | 0 |
| C | 0 | 53 | 0 |
| D | 0 | 53 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 29030 | 1303 | 4.488460% |
| B | 29027 | 4899 | 16.877390% |
| C | 29028 | 494 | 1.701805% |
| D | 29021 | 5810 | 20.019986% |

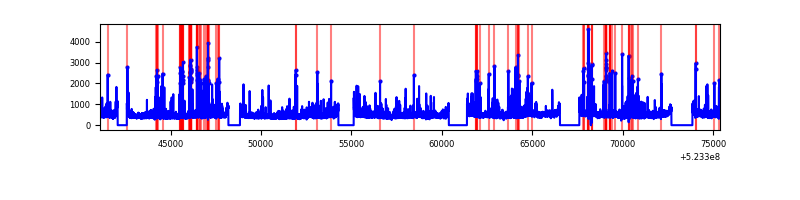

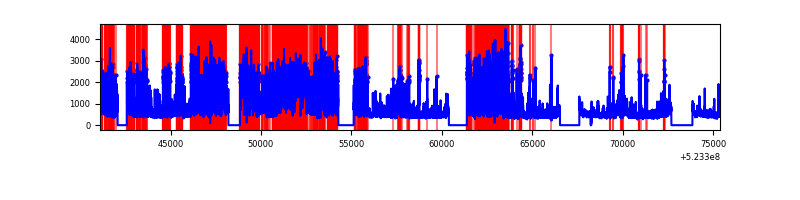

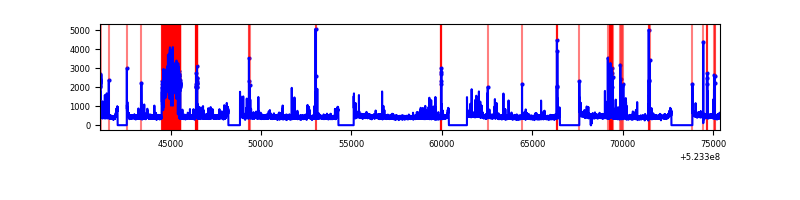

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 34293 | 29044 | 840 | 840 | 2.45% | 2.89% |  |
| B | 34294 | 29040 | 2942 | 2942 | 8.58% | 10.13% |  |
| C | 34294 | 29042 | 138 | 138 | 0.40% | 0.48% |  |
| D | 34294 | 29034 | 4783 | 4783 | 13.95% | 16.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 17 | 2253056 | 2855.92 | 3212 | 3133 | 787.8 |
| A | 10 | 251 | 510147 | 643.57 | 3212 | 3133 | 787.8 |
| A | 3 | 14 | 168746 | 210.22 | 3212 | 3133 | 787.8 |
| B | 5 | 172 | 13591670 | 21067.31 | 3022 | 2901 | 645.0 |
| B | 8 | 234 | 361488 | 555.93 | 3022 | 2901 | 645.0 |
| B | 15 | 32 | 276524 | 424.21 | 3022 | 2901 | 645.0 |
| C | 15 | 1 | 940718 | 1085.71 | 3167 | 3133 | 863.6 |
| C | 14 | 254 | 527074 | 606.72 | 3167 | 3133 | 863.6 |
| C | 12 | 249 | 286048 | 327.61 | 3167 | 3133 | 863.6 |
| D | 2 | 249 | 9915686 | 12215.41 | 2883 | 2758 | 811.5 |
| D | 8 | 160 | 4404731 | 5424.42 | 2883 | 2758 | 811.5 |
| D | 8 | 240 | 1771965 | 2180.14 | 2883 | 2758 | 811.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

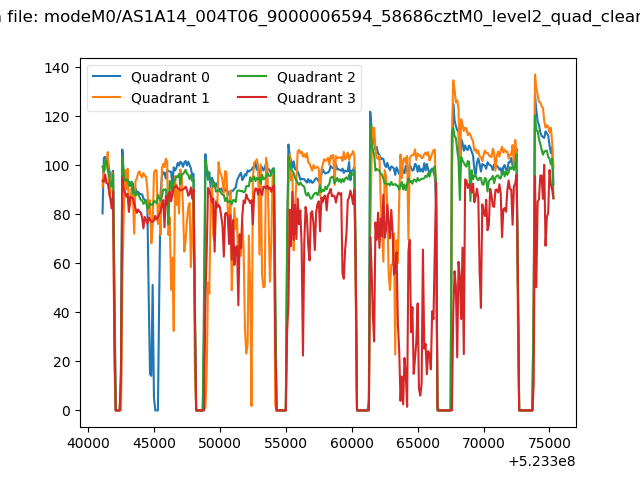

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

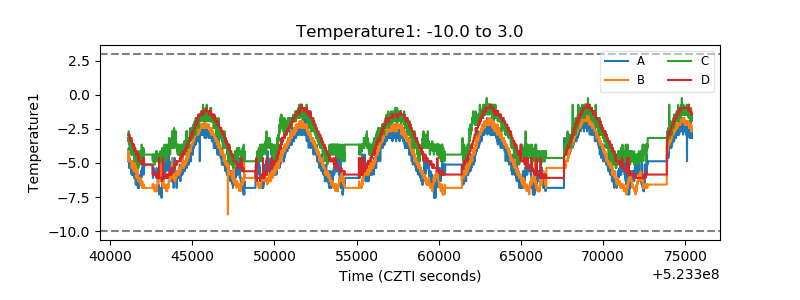

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

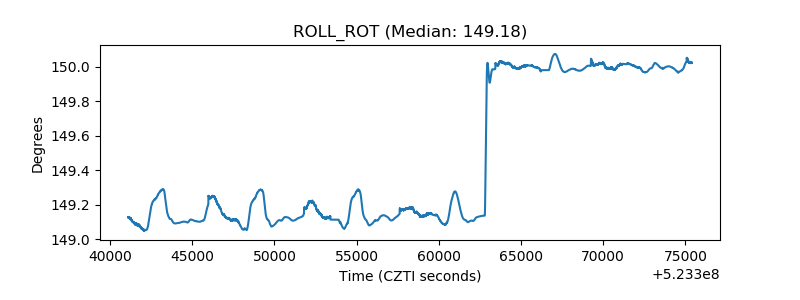

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
