| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58687cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58687cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,050,240 | 87,168,960 |
| Size | 410.1 MB | 83.1 MB |
| Events in quadrant A | 2,721,994 | 595,666 |
| Events in quadrant B | 3,417,461 | 618,108 |
| Events in quadrant C | 3,212,006 | 566,809 |
| Events in quadrant D | 6,115,286 | 452,730 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12218 | 19 |
| B | 0 | 14092 | 19 |
| C | 0 | 13725 | 18 |
| D | 0 | 22225 | 49 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5813 | 95 | 1.634268% |
| B | 5814 | 249 | 4.282766% |
| C | 5815 | 159 | 2.734308% |
| D | 5810 | 1082 | 18.623064% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7052 | 5880 | 18 | 18 | 0.26% | 0.31% |  |
| B | 7053 | 5884 | 147 | 147 | 2.08% | 2.50% |  |
| C | 7054 | 5883 | 86 | 86 | 1.22% | 1.46% |  |
| D | 7052 | 5880 | 814 | 814 | 11.54% | 13.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 104619 | 634.94 | 657 | 641 | 163.8 |
| A | 3 | 14 | 45608 | 274.59 | 657 | 641 | 163.8 |
| A | 13 | 248 | 13586 | 79.05 | 657 | 641 | 163.8 |
| B | 15 | 32 | 298324 | 2155.81 | 640 | 617 | 138.1 |
| B | 2 | 249 | 194980 | 1407.46 | 640 | 617 | 138.1 |
| B | 8 | 234 | 189859 | 1370.37 | 640 | 617 | 138.1 |
| C | 13 | 3 | 346228 | 1951.12 | 640 | 631 | 177.1 |
| C | 1 | 12 | 149898 | 842.71 | 640 | 631 | 177.1 |
| C | 14 | 254 | 83353 | 467.02 | 640 | 631 | 177.1 |
| D | 2 | 249 | 1461513 | 8776.45 | 583 | 556 | 166.5 |
| D | 8 | 160 | 1392720 | 8363.19 | 583 | 556 | 166.5 |
| D | 8 | 240 | 480280 | 2881.86 | 583 | 556 | 166.5 |

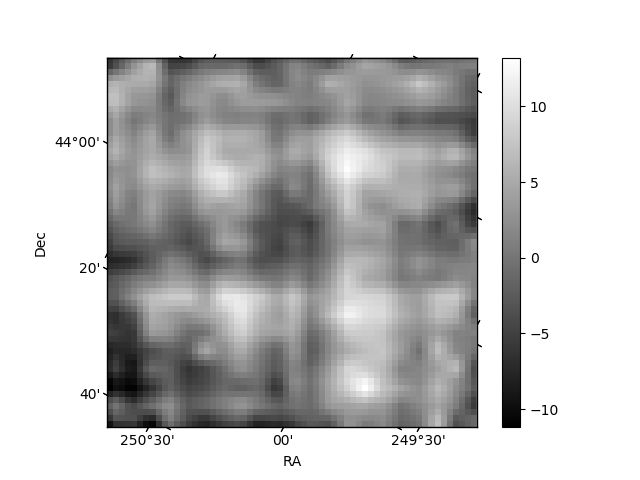

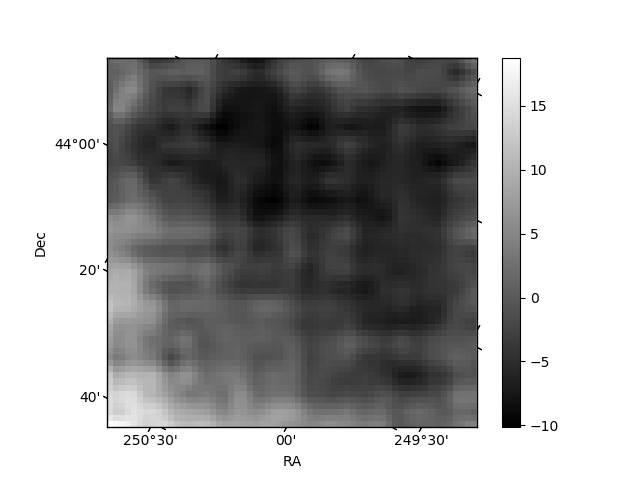

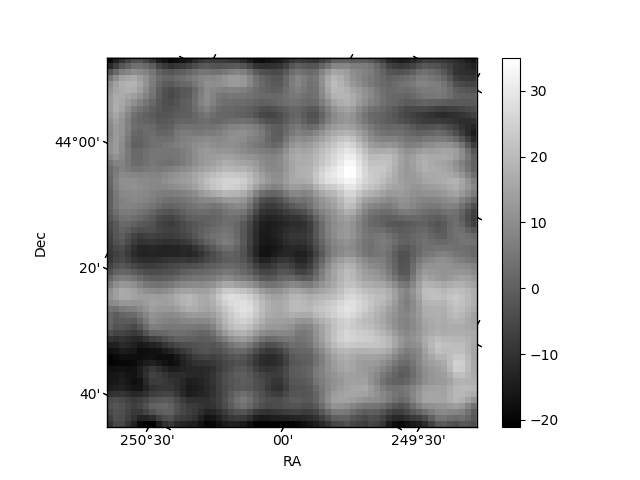

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

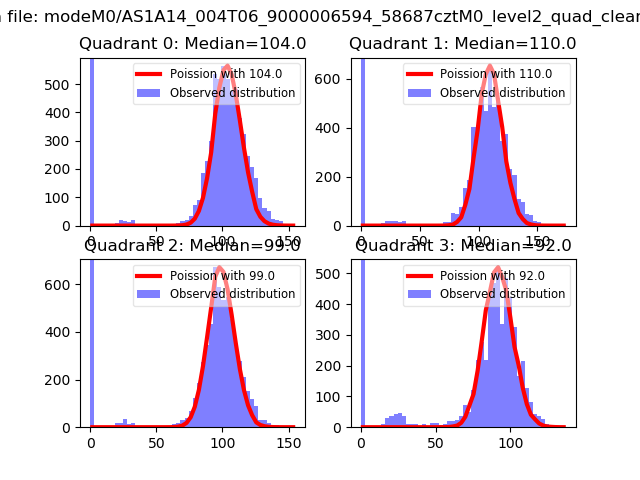

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

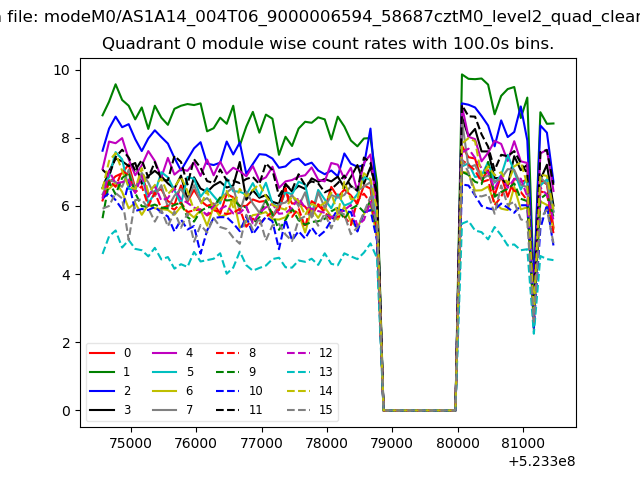

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

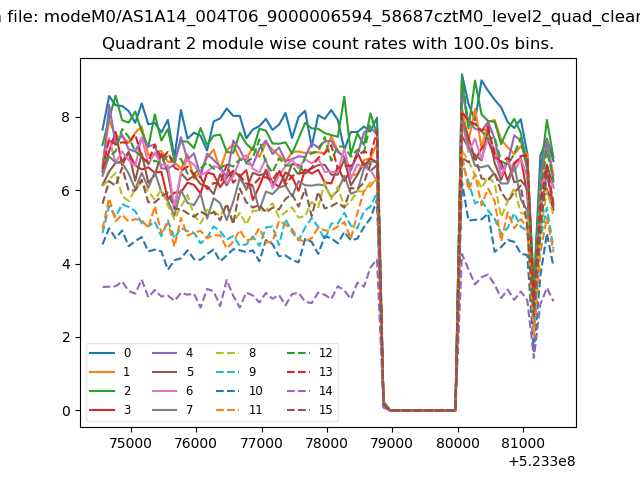

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

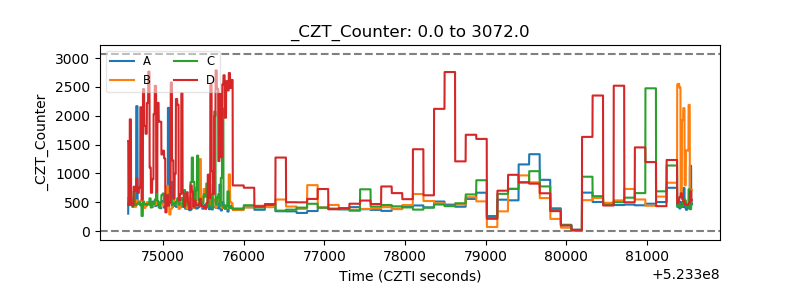

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

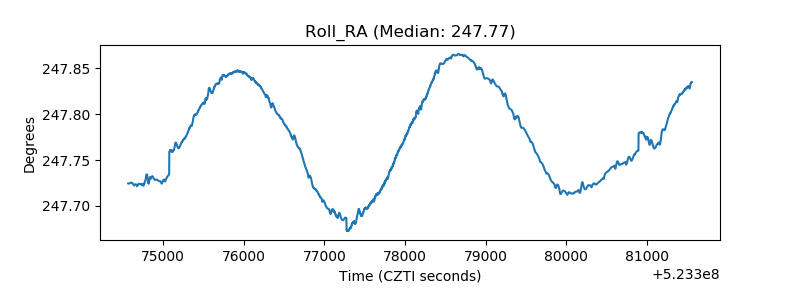

| _Roll_RA |  |
| Veto Counter |  |
