| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58688cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58688cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,464,640 | 81,993,600 |
| Size | 449.6 MB | 78.2 MB |
| Events in quadrant A | 2,741,405 | 576,144 |
| Events in quadrant B | 5,505,832 | 504,175 |
| Events in quadrant C | 3,961,778 | 523,438 |
| Events in quadrant D | 4,797,049 | 477,748 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12284 | 1 |
| B | 0 | 20325 | 7 |
| C | 0 | 15960 | 2 |
| D | 0 | 18153 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5733 | 57 | 0.994244% |
| B | 5732 | 1170 | 20.411724% |
| C | 5732 | 453 | 7.903001% |
| D | 5732 | 600 | 10.467551% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

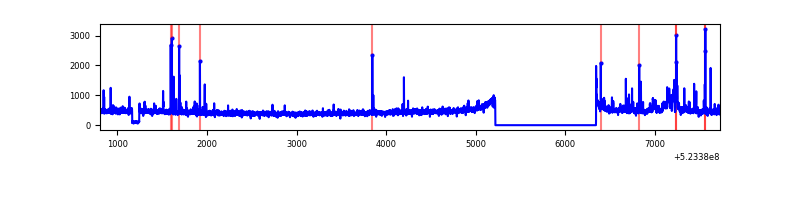

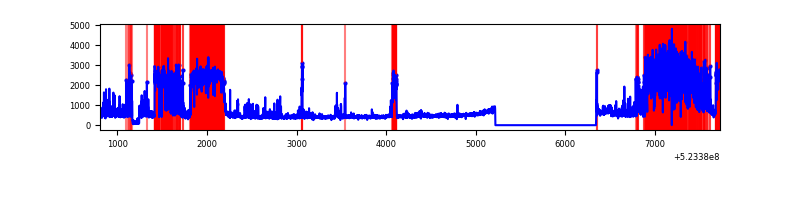

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6920 | 5796 | 11 | 11 | 0.16% | 0.19% |  |
| B | 6919 | 5795 | 987 | 987 | 14.27% | 17.03% |  |
| C | 6919 | 5795 | 311 | 311 | 4.49% | 5.37% |  |
| D | 6919 | 5795 | 453 | 453 | 6.55% | 7.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 108859 | 683.18 | 639 | 621 | 158.4 |
| A | 4 | 95 | 84231 | 527.73 | 639 | 621 | 158.4 |
| A | 3 | 14 | 59293 | 370.33 | 639 | 621 | 158.4 |
| B | 15 | 32 | 1686659 | 13386.3 | 582 | 560 | 126.0 |
| B | 2 | 249 | 1140135 | 9047.33 | 582 | 560 | 126.0 |
| B | 5 | 172 | 146321 | 1157.23 | 582 | 560 | 126.0 |
| C | 13 | 3 | 1362454 | 8141.11 | 607 | 601 | 167.3 |
| C | 14 | 254 | 114721 | 682.21 | 607 | 601 | 167.3 |
| C | 12 | 252 | 41502 | 244.5 | 607 | 601 | 167.3 |
| D | 2 | 249 | 919087 | 5412.22 | 596 | 571 | 169.7 |
| D | 8 | 240 | 793318 | 4671.15 | 596 | 571 | 169.7 |
| D | 7 | 222 | 152433 | 894.82 | 596 | 571 | 169.7 |

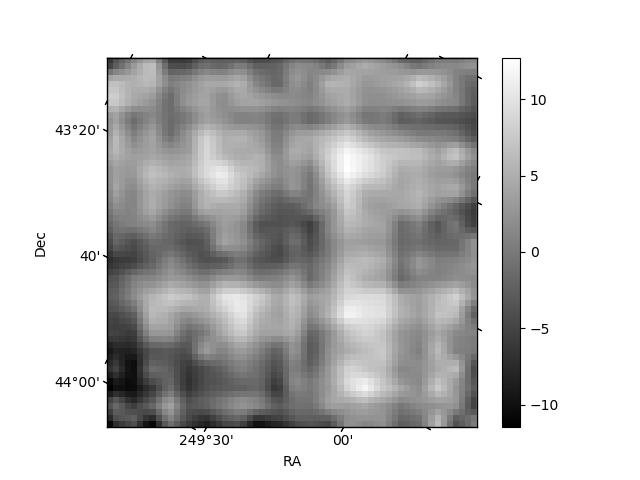

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

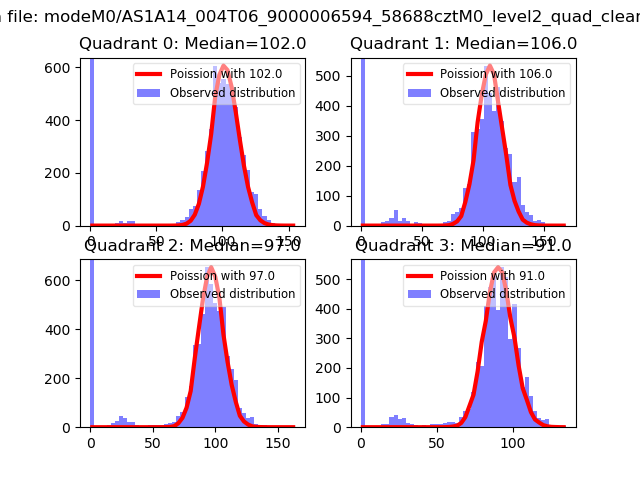

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

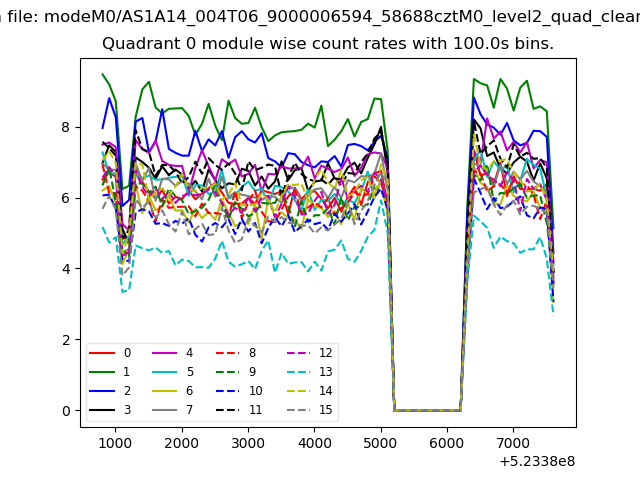

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

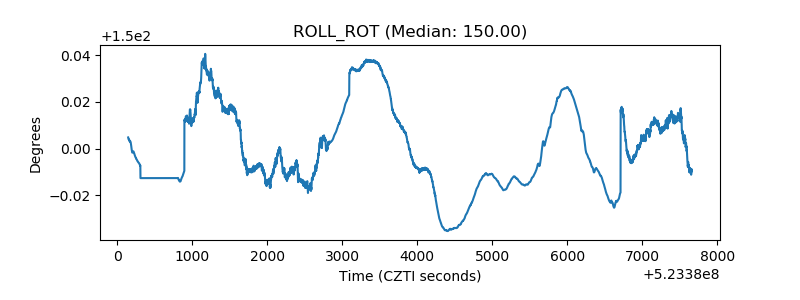

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

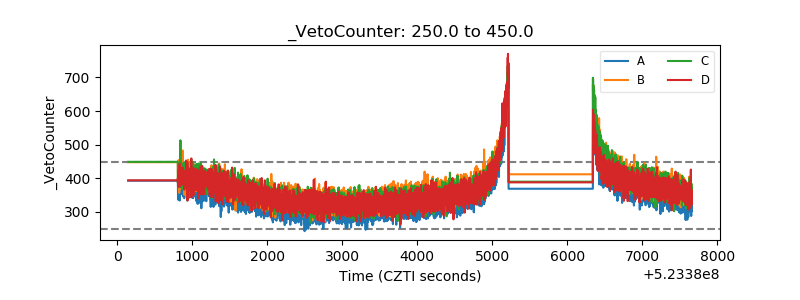

| Veto Counter |  |
