| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58690cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58690cztM0_level2_quad_clean.evt |
| Size (bytes) | 741,081,600 | 92,589,120 |
| Size | 706.8 MB | 88.3 MB |
| Events in quadrant A | 3,235,501 | 696,723 |
| Events in quadrant B | 6,857,015 | 638,523 |
| Events in quadrant C | 5,314,303 | 636,677 |
| Events in quadrant D | 11,473,860 | 335,953 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14929 | 24 |
| B | 0 | 25322 | 16 |
| C | 0 | 20860 | 6 |
| D | 0 | 39045 | 43 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7113 | 49 | 0.688880% |
| B | 7115 | 1179 | 16.570625% |
| C | 7117 | 530 | 7.446958% |
| D | 7112 | 3500 | 49.212598% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

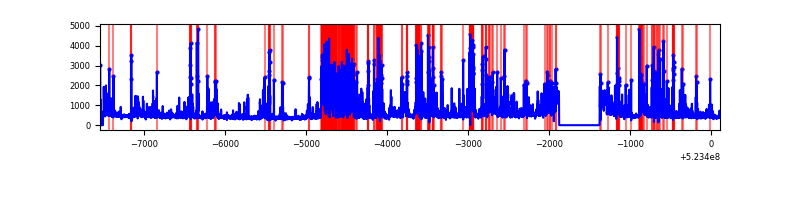

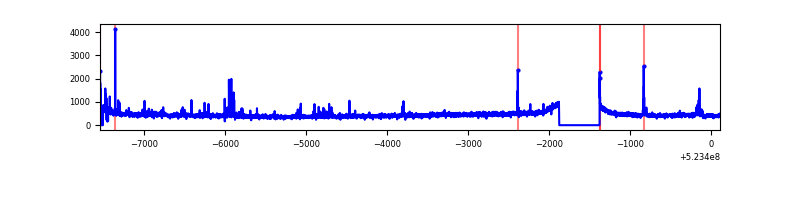

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7644 | 7120 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7644 | 7119 | 831 | 831 | 10.87% | 11.67% |  |
| C | 7644 | 7120 | 384 | 384 | 5.02% | 5.39% |  |
| D | 7644 | 7118 | 2682 | 2682 | 35.09% | 37.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 92276 | 470.9 | 785 | 765 | 194.3 |
| A | 3 | 14 | 50433 | 255.59 | 785 | 765 | 194.3 |
| A | 10 | 17 | 16626 | 81.62 | 785 | 765 | 194.3 |
| B | 2 | 249 | 3082119 | 19715.86 | 728 | 699 | 156.3 |
| B | 6 | 255 | 322323 | 2057.85 | 728 | 699 | 156.3 |
| B | 5 | 172 | 143818 | 915.72 | 728 | 699 | 156.3 |
| C | 2 | 12 | 1282742 | 6206.48 | 748 | 741 | 206.6 |
| C | 13 | 3 | 665361 | 3217.59 | 748 | 741 | 206.6 |
| C | 14 | 254 | 130334 | 627.39 | 748 | 741 | 206.6 |
| D | 11 | 129 | 7915105 | 52853.75 | 522 | 497 | 149.7 |
| D | 8 | 240 | 944151 | 6301.72 | 522 | 497 | 149.7 |
| D | 1 | 27 | 190674 | 1270.0 | 522 | 497 | 149.7 |

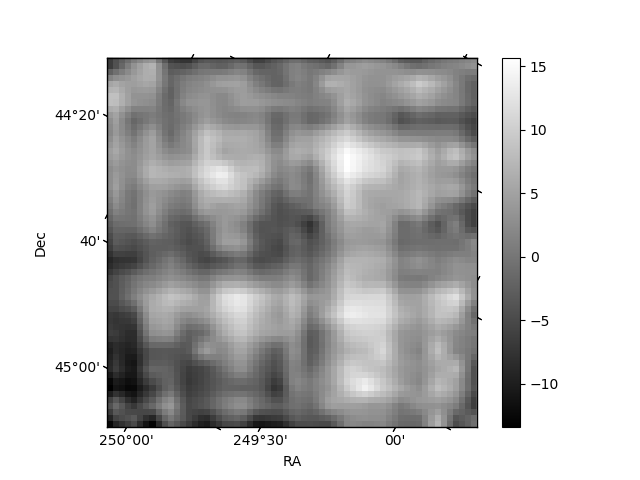

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

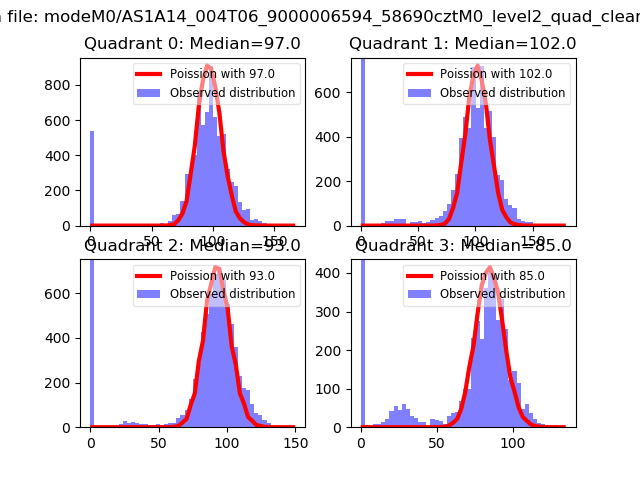

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

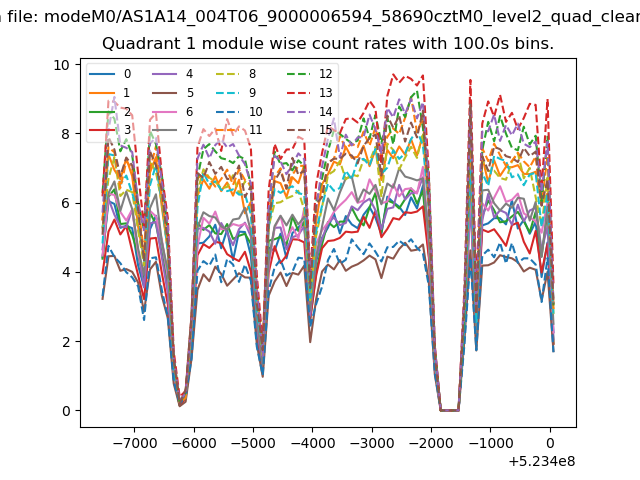

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

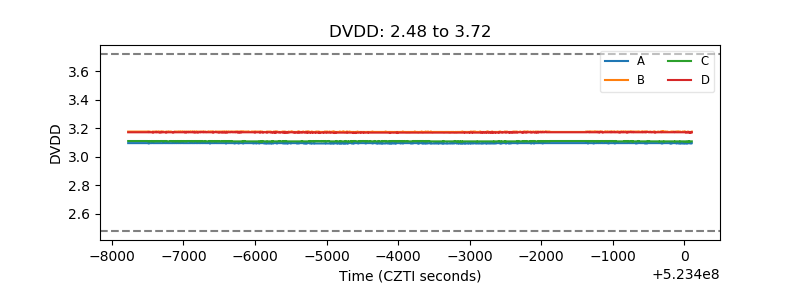

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

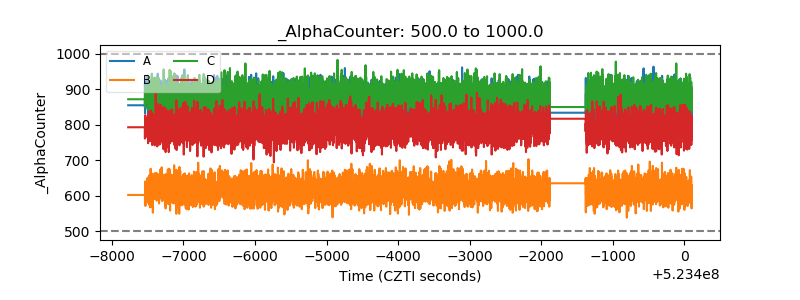

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

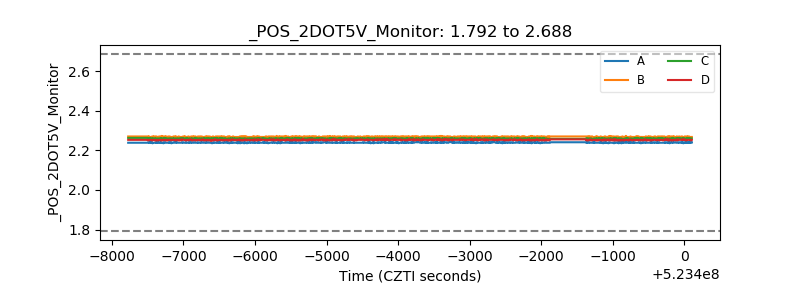

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
