| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58691cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58691cztM0_level2_quad_clean.evt |
| Size (bytes) | 691,079,040 | 105,552,000 |
| Size | 659.1 MB | 100.7 MB |
| Events in quadrant A | 3,441,526 | 750,683 |
| Events in quadrant B | 7,413,541 | 668,365 |
| Events in quadrant C | 4,294,757 | 716,917 |
| Events in quadrant D | 9,833,121 | 523,118 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16079 | 77 |
| B | 0 | 27497 | 86 |
| C | 0 | 18539 | 122 |
| D | 0 | 34775 | 169 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7716 | 14 | 0.181441% |
| B | 7716 | 1420 | 18.403318% |
| C | 7717 | 139 | 1.801218% |
| D | 7716 | 1995 | 25.855365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7716 | 7716 | 10 | 10 | 0.13% | 0.13% |  |
| B | 7716 | 7716 | 968 | 968 | 12.55% | 12.55% |  |
| C | 7717 | 7717 | 91 | 91 | 1.18% | 1.18% |  |
| D | 7716 | 7716 | 1581 | 1581 | 20.49% | 20.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 79545 | 379.35 | 843 | 822 | 207.5 |
| A | 3 | 14 | 47265 | 223.8 | 843 | 822 | 207.5 |
| A | 10 | 17 | 39496 | 186.36 | 843 | 822 | 207.5 |
| B | 2 | 249 | 2940815 | 17682.63 | 780 | 751 | 166.3 |
| B | 15 | 32 | 949096 | 5703.7 | 780 | 751 | 166.3 |
| B | 8 | 128 | 150147 | 898.52 | 780 | 751 | 166.3 |
| C | 13 | 3 | 527471 | 2321.51 | 828 | 819 | 226.9 |
| C | 12 | 252 | 114745 | 502.19 | 828 | 819 | 226.9 |
| C | 6 | 223 | 108965 | 476.71 | 828 | 819 | 226.9 |
| D | 11 | 129 | 5113394 | 24576.5 | 724 | 688 | 208.0 |
| D | 8 | 240 | 762280 | 3660.93 | 724 | 688 | 208.0 |
| D | 7 | 222 | 338756 | 1625.07 | 724 | 688 | 208.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

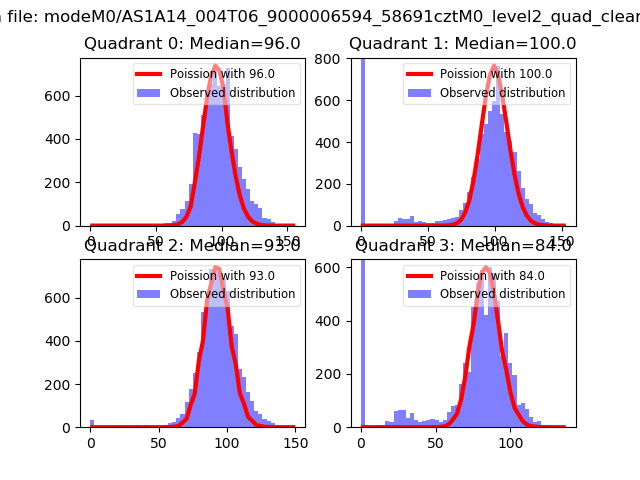

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

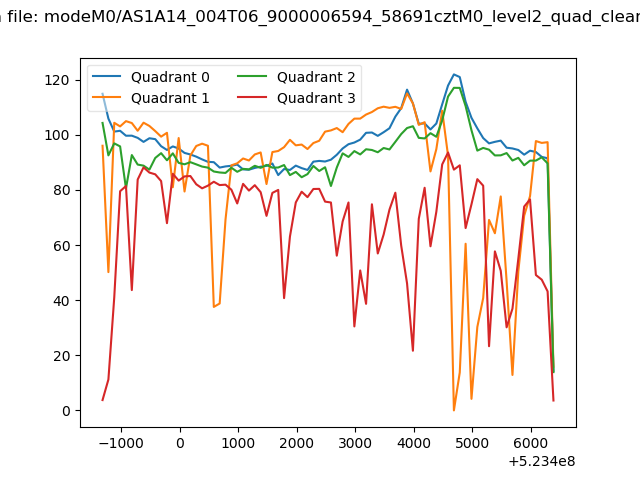

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

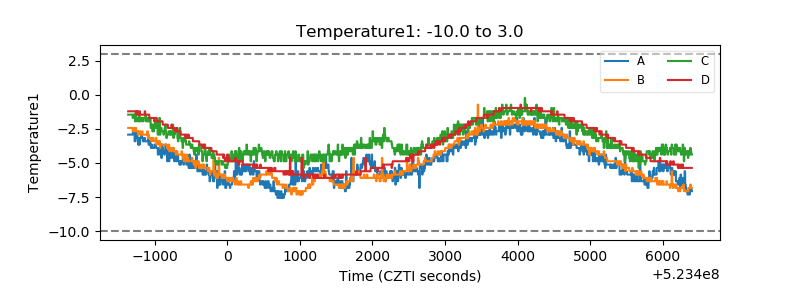

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

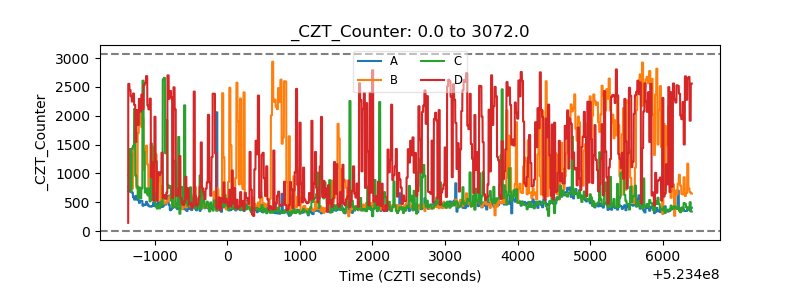

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

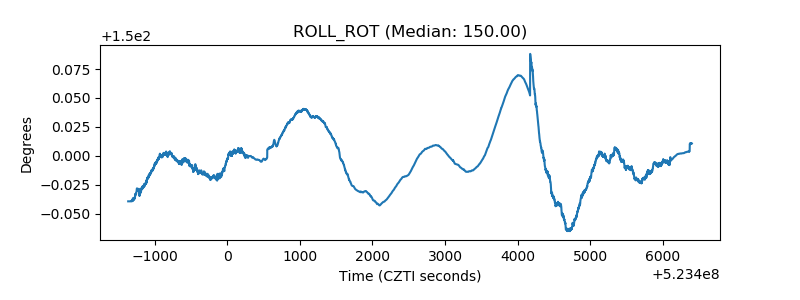

| _ROLL_ROT |  |
| _Roll_DEC |  |

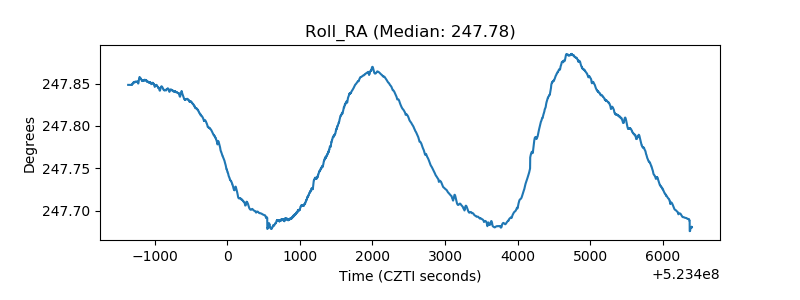

| _Roll_RA |  |
| Veto Counter |  |
