| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58700cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58700cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,133,760 | 95,688,000 |
| Size | 581.9 MB | 91.3 MB |
| Events in quadrant A | 3,270,467 | 678,945 |
| Events in quadrant B | 4,200,742 | 703,435 |
| Events in quadrant C | 3,993,861 | 643,930 |
| Events in quadrant D | 10,604,848 | 408,204 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14385 | 223 |
| B | 0 | 17197 | 296 |
| C | 0 | 16631 | 299 |
| D | 0 | 36524 | 451 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 2 |
| C | 0 | 136 | 2 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6642 | 110 | 1.656128% |
| B | 6636 | 376 | 5.666064% |
| C | 6633 | 174 | 2.623247% |
| D | 6625 | 2658 | 40.120755% |

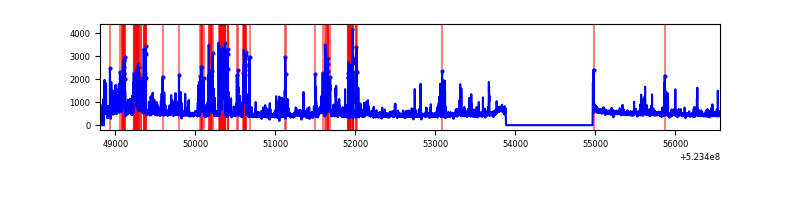

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7751 | 6656 | 11 | 11 | 0.14% | 0.17% |  |
| B | 7740 | 6651 | 178 | 178 | 2.30% | 2.68% |  |
| C | 7750 | 6650 | 98 | 98 | 1.26% | 1.47% |  |
| D | 7741 | 6641 | 2128 | 2128 | 27.49% | 32.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 122808 | 641.01 | 769 | 750 | 190.4 |
| A | 3 | 14 | 100873 | 525.81 | 769 | 750 | 190.4 |
| A | 10 | 251 | 53610 | 277.6 | 769 | 750 | 190.4 |
| B | 5 | 172 | 736631 | 4639.34 | 741 | 713 | 158.6 |
| B | 6 | 255 | 301347 | 1895.24 | 741 | 713 | 158.6 |
| B | 2 | 249 | 70453 | 439.65 | 741 | 713 | 158.6 |
| C | 12 | 252 | 258744 | 1284.53 | 736 | 729 | 200.9 |
| C | 6 | 223 | 248054 | 1231.31 | 736 | 729 | 200.9 |
| C | 13 | 3 | 193898 | 961.69 | 736 | 729 | 200.9 |
| D | 11 | 129 | 6588344 | 37407.58 | 618 | 590 | 176.1 |
| D | 2 | 62 | 698959 | 3965.58 | 618 | 590 | 176.1 |
| D | 8 | 240 | 432446 | 2452.23 | 618 | 590 | 176.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

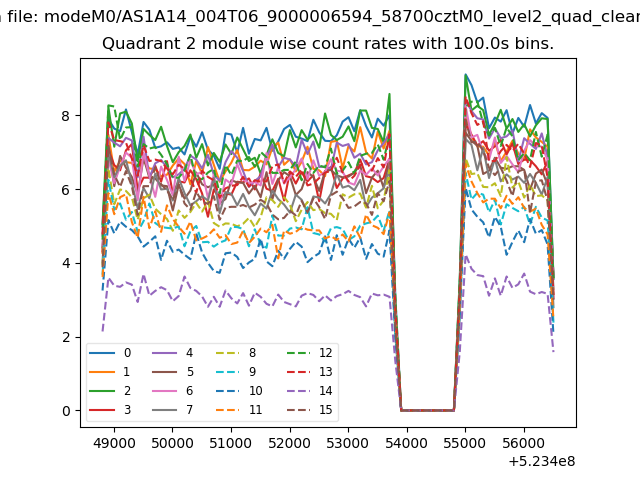

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

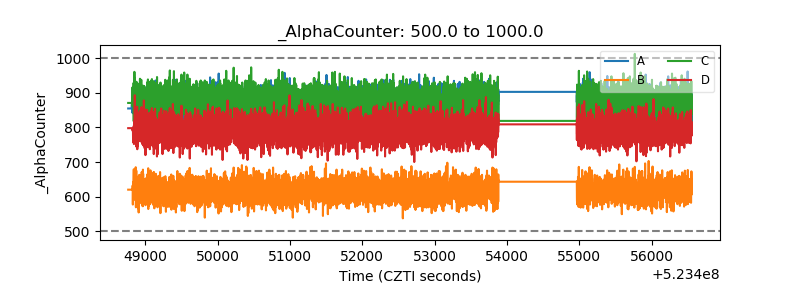

| Alpha Counter |  |

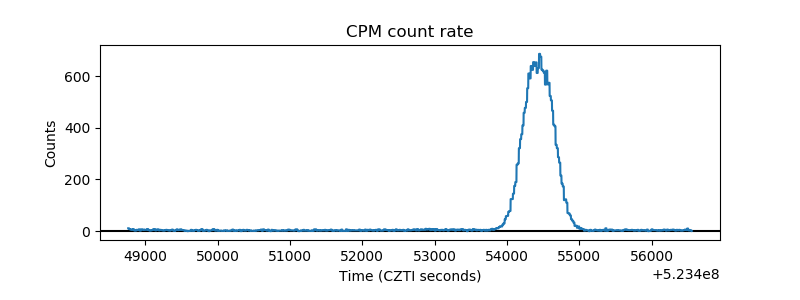

| _CPM_Rate |  |

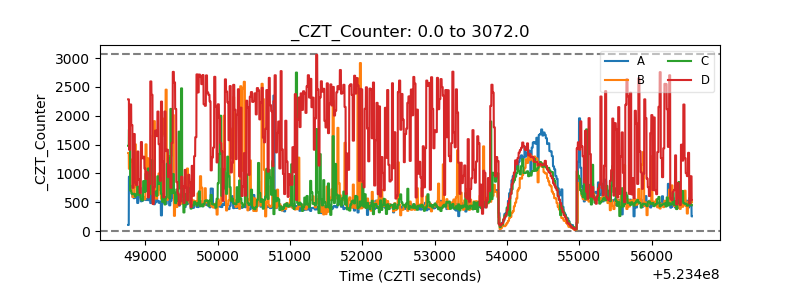

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

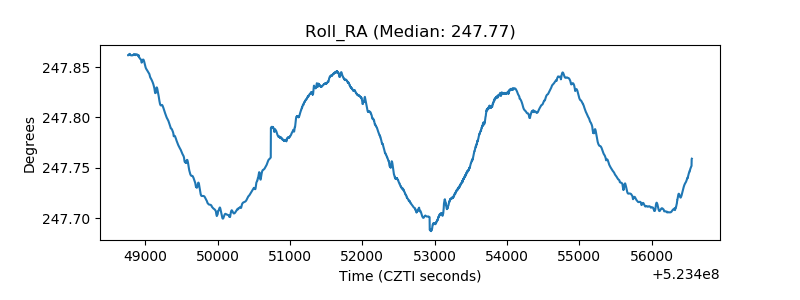

| _Roll_RA |  |

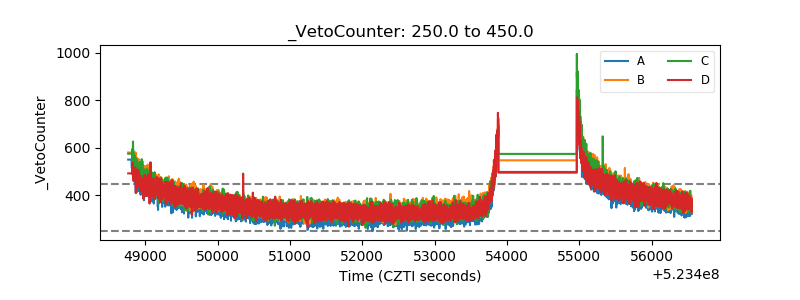

| Veto Counter |  |
