| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58702cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58702cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,373,892,480 | 228,375,360 |
| Size | 1.3 GB | 217.8 MB |
| Events in quadrant A | 8,212,764 | 1,607,740 |
| Events in quadrant B | 8,902,317 | 1,686,834 |
| Events in quadrant C | 8,592,569 | 1,537,794 |
| Events in quadrant D | 23,915,952 | 982,686 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35358 | 5 |
| B | 0 | 37336 | 3 |
| C | 0 | 36634 | 3 |
| D | 0 | 82105 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 326 | 0 |
| B | 0 | 326 | 0 |
| C | 0 | 326 | 0 |
| D | 0 | 326 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15940 | 317 | 1.988708% |
| B | 15942 | 585 | 3.669552% |
| C | 15942 | 378 | 2.371095% |
| D | 15941 | 5753 | 36.089329% |

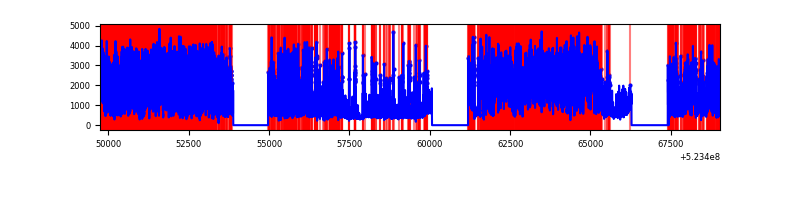

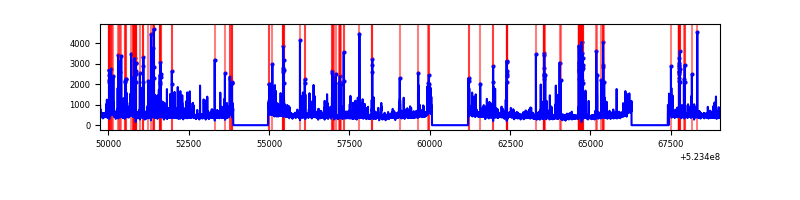

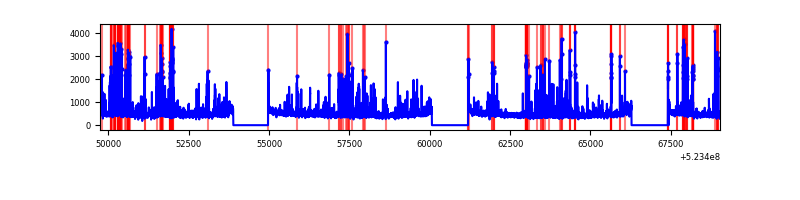

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19296 | 15944 | 35 | 35 | 0.18% | 0.22% |  |
| B | 19297 | 15946 | 235 | 235 | 1.22% | 1.47% |  |
| C | 19297 | 15946 | 169 | 169 | 0.88% | 1.06% |  |
| D | 19296 | 15944 | 4882 | 4882 | 25.30% | 30.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 689612 | 1544.87 | 1800 | 1755 | 445.3 |
| A | 10 | 251 | 201571 | 448.77 | 1800 | 1755 | 445.3 |
| A | 12 | 114 | 178738 | 397.49 | 1800 | 1755 | 445.3 |
| B | 6 | 255 | 1045137 | 2797.8 | 1753 | 1688 | 373.0 |
| B | 5 | 172 | 432171 | 1154.26 | 1753 | 1688 | 373.0 |
| B | 2 | 249 | 105887 | 279.39 | 1753 | 1688 | 373.0 |
| C | 13 | 3 | 470366 | 982.09 | 1749 | 1734 | 477.2 |
| C | 12 | 252 | 328389 | 684.55 | 1749 | 1734 | 477.2 |
| C | 14 | 254 | 311417 | 648.98 | 1749 | 1734 | 477.2 |
| D | 11 | 129 | 10954968 | 25899.31 | 1483 | 1417 | 422.9 |
| D | 2 | 62 | 3932644 | 9295.25 | 1483 | 1417 | 422.9 |
| D | 2 | 249 | 865642 | 2043.43 | 1483 | 1417 | 422.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

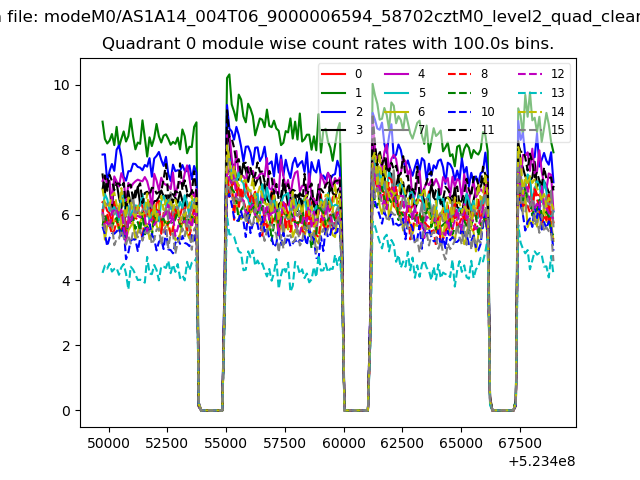

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

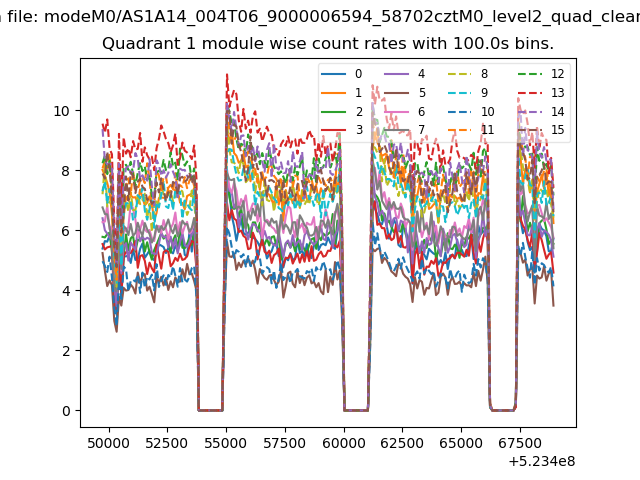

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

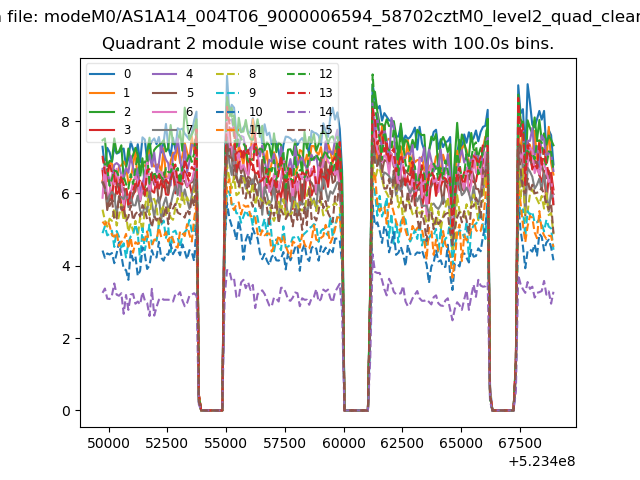

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

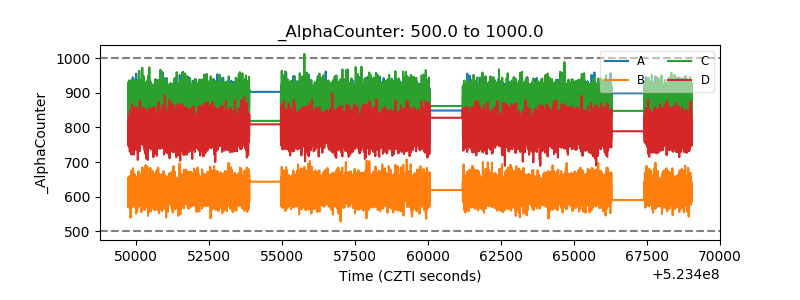

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

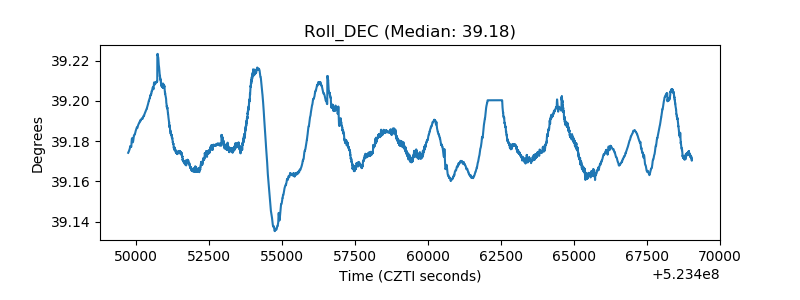

| _Roll_RA |  |
| Veto Counter |  |
