| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58703cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58703cztM0_level2_quad_clean.evt |
| Size (bytes) | 16,044,480 | 2,574,720 |
| Size | 15.3 MB | 2.5 MB |
| Events in quadrant A | 118,465 | 17,535 |
| Events in quadrant B | 122,964 | 17,379 |
| Events in quadrant C | 140,636 | 17,109 |
| Events in quadrant D | 190,502 | 2,074 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2236 | 1713 |
| B | 0 | 2347 | 1815 |
| C | 0 | 2407 | 1819 |
| D | 0 | 5138 | 4480 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 18 |
| B | 0 | 22 | 16 |
| C | 0 | 21 | 15 |
| D | 0 | 19 | 16 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 249 | 1 | 0.401606% |
| B | 251 | 0 | 0.000000% |
| C | 264 | 0 | 0.000000% |
| D | 140 | 31 | 22.142857% |

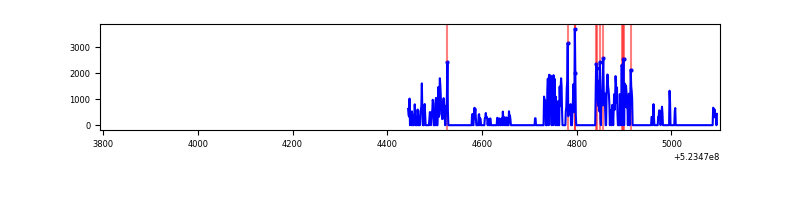

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1169 | 345 | 1 | 1 | 0.09% | 0.29% |  |
| B | 1137 | 363 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1309 | 383 | 0 | 0 | 0.00% | 0.00% |  |
| D | 653 | 223 | 12 | 12 | 1.84% | 5.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 14556 | 1708.37 | 26 | 25 | 8.5 |
| A | 13 | 254 | 448 | 49.73 | 26 | 25 | 8.5 |
| A | 3 | 137 | 306 | 33.04 | 26 | 25 | 8.5 |
| B | 8 | 234 | 7959 | 1062.83 | 26 | 25 | 7.5 |
| B | 6 | 255 | 4250 | 565.98 | 26 | 25 | 7.5 |
| B | 0 | 157 | 1951 | 258.01 | 26 | 25 | 7.5 |
| C | 13 | 3 | 13823 | 1456.54 | 28 | 27 | 9.5 |
| C | 12 | 252 | 8892 | 935.94 | 28 | 27 | 9.5 |
| C | 14 | 254 | 3577 | 374.8 | 28 | 27 | 9.5 |
| D | 11 | 129 | 87964 | 16293.95 | 13 | 13 | 5.4 |
| D | 8 | 240 | 29664 | 5493.19 | 13 | 13 | 5.4 |
| D | 2 | 249 | 7438 | 1375.57 | 13 | 13 | 5.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

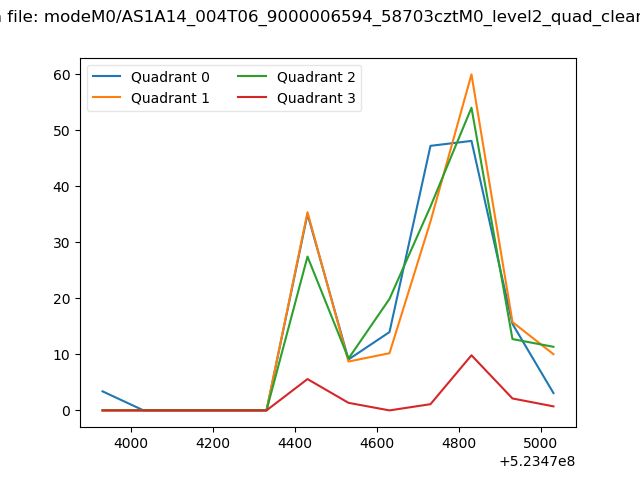

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

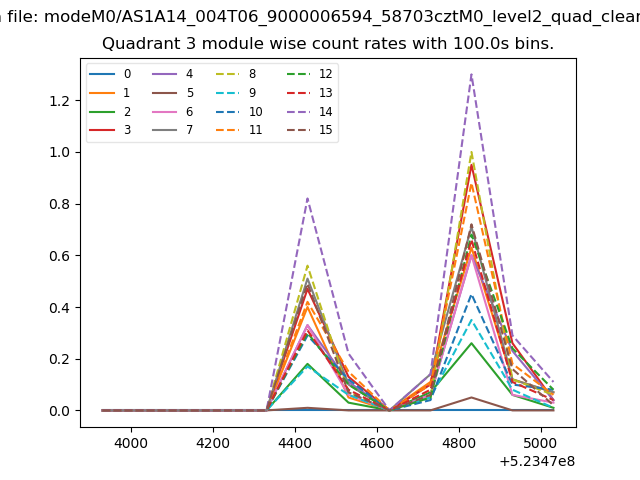

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

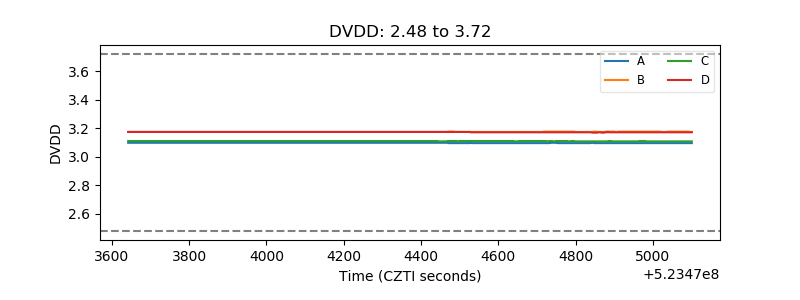

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

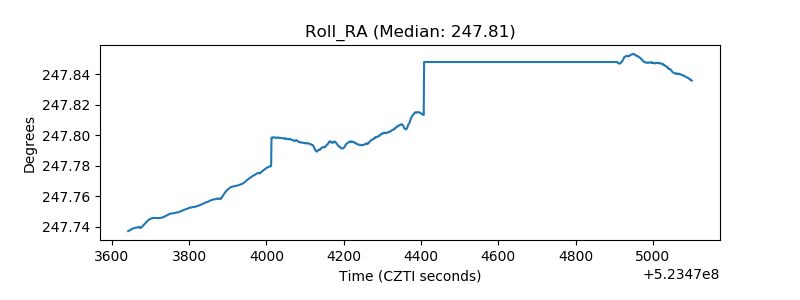

| _Roll_RA |  |
| Veto Counter |  |
