| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58705cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58705cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,001,280 | 109,679,040 |
| Size | 513.1 MB | 104.6 MB |
| Events in quadrant A | 4,056,752 | 730,304 |
| Events in quadrant B | 4,066,201 | 768,693 |
| Events in quadrant C | 4,524,291 | 692,603 |
| Events in quadrant D | 6,688,305 | 609,236 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17102 | 2 |
| B | 0 | 17371 | 2 |
| C | 0 | 18737 | 2 |
| D | 0 | 25174 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7466 | 83 | 1.111706% |
| B | 7466 | 184 | 2.464506% |
| C | 7466 | 235 | 3.147602% |
| D | 7466 | 820 | 10.983123% |

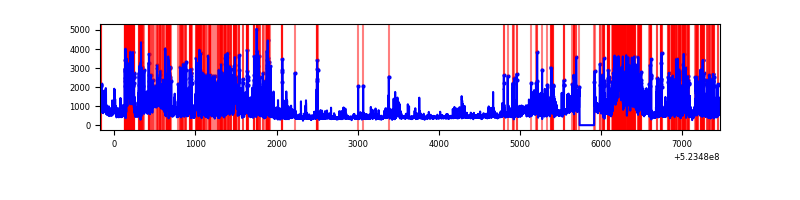

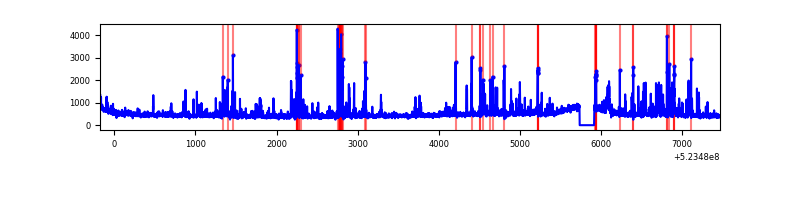

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 7467 | 34 | 34 | 0.44% | 0.46% |  |
| B | 7646 | 7467 | 54 | 54 | 0.71% | 0.72% |  |
| C | 7646 | 7467 | 156 | 156 | 2.04% | 2.09% |  |
| D | 7646 | 7467 | 680 | 680 | 8.89% | 9.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 406373 | 1963.44 | 832 | 811 | 206.6 |
| A | 3 | 14 | 149931 | 721.93 | 832 | 811 | 206.6 |
| A | 10 | 17 | 135535 | 652.24 | 832 | 811 | 206.6 |
| B | 6 | 255 | 402780 | 2281.02 | 820 | 788 | 176.2 |
| B | 5 | 185 | 125618 | 708.32 | 820 | 788 | 176.2 |
| B | 8 | 234 | 42960 | 239.3 | 820 | 788 | 176.2 |
| C | 4 | 5 | 416327 | 1869.58 | 809 | 798 | 222.3 |
| C | 14 | 254 | 284748 | 1277.57 | 809 | 798 | 222.3 |
| C | 6 | 223 | 262338 | 1176.74 | 809 | 798 | 222.3 |
| D | 11 | 129 | 2089214 | 9469.78 | 779 | 743 | 220.5 |
| D | 2 | 249 | 394469 | 1785.28 | 779 | 743 | 220.5 |
| D | 2 | 120 | 340811 | 1541.98 | 779 | 743 | 220.5 |

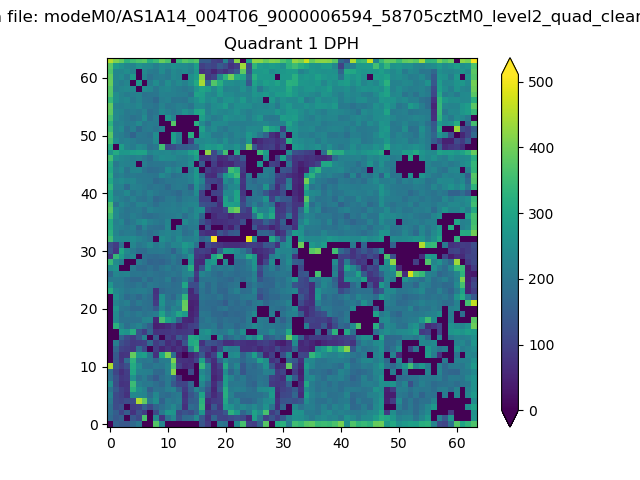

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

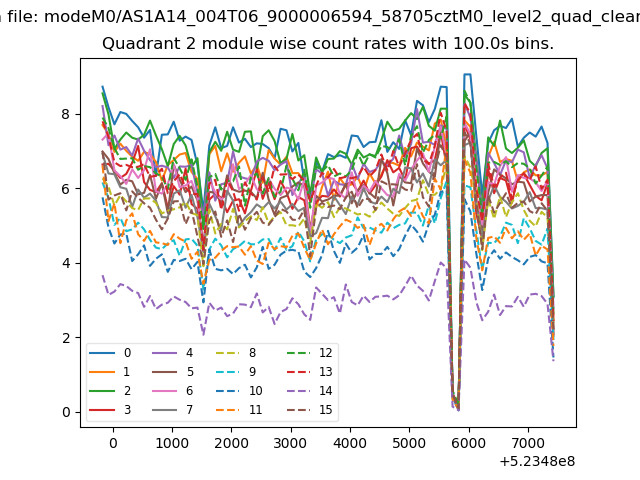

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

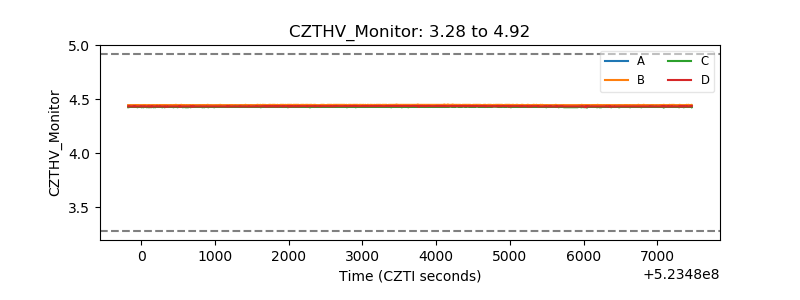

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

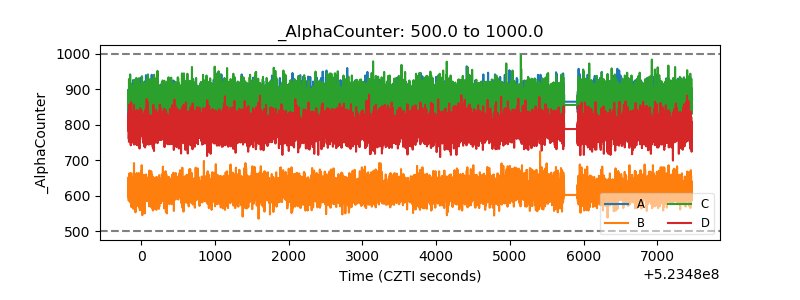

| Alpha Counter |  |

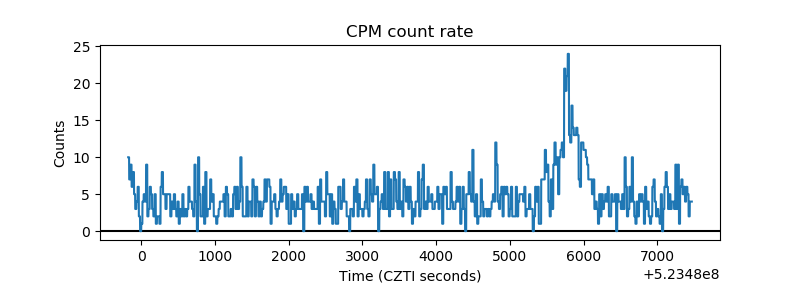

| _CPM_Rate |  |

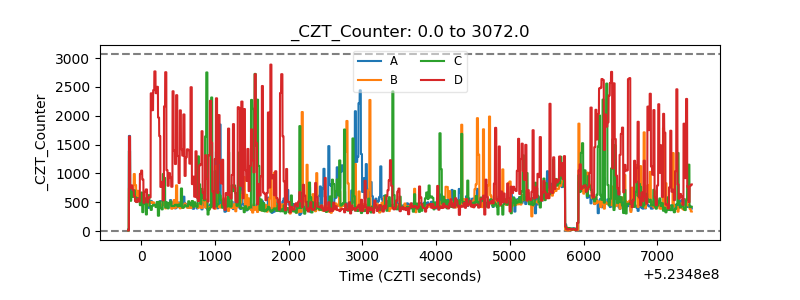

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
