| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58711cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58711cztM0_level2_quad_clean.evt |
| Size (bytes) | 636,963,840 | 90,172,800 |
| Size | 607.5 MB | 86.0 MB |
| Events in quadrant A | 3,471,133 | 641,928 |
| Events in quadrant B | 3,759,633 | 678,688 |
| Events in quadrant C | 4,476,845 | 577,930 |
| Events in quadrant D | 11,341,603 | 356,938 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15038 | 22 |
| B | 0 | 15831 | 34 |
| C | 0 | 18171 | 36 |
| D | 0 | 38534 | 174 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6819 | 132 | 1.935768% |
| B | 6816 | 251 | 3.682512% |
| C | 6818 | 560 | 8.213552% |
| D | 6799 | 2993 | 44.021180% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7745 | 6829 | 23 | 23 | 0.30% | 0.34% |  |
| B | 7745 | 6829 | 90 | 90 | 1.16% | 1.32% |  |
| C | 7745 | 6827 | 467 | 467 | 6.03% | 6.84% |  |
| D | 7743 | 6819 | 2621 | 2621 | 33.85% | 38.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 114 | 240062 | 1283.13 | 752 | 730 | 186.5 |
| A | 3 | 14 | 233355 | 1247.17 | 752 | 730 | 186.5 |
| A | 3 | 254 | 43819 | 231.01 | 752 | 730 | 186.5 |
| B | 6 | 255 | 273408 | 1695.48 | 737 | 709 | 160.8 |
| B | 8 | 234 | 160452 | 993.19 | 737 | 709 | 160.8 |
| B | 10 | 16 | 153028 | 947.03 | 737 | 709 | 160.8 |
| C | 12 | 249 | 1204740 | 6315.77 | 703 | 694 | 190.6 |
| C | 6 | 223 | 149411 | 780.09 | 703 | 694 | 190.6 |
| C | 13 | 3 | 96969 | 505.01 | 703 | 694 | 190.6 |
| D | 11 | 129 | 7019714 | 42583.33 | 581 | 556 | 164.8 |
| D | 2 | 249 | 1172980 | 7112.78 | 581 | 556 | 164.8 |
| D | 8 | 240 | 367404 | 2225.57 | 581 | 556 | 164.8 |

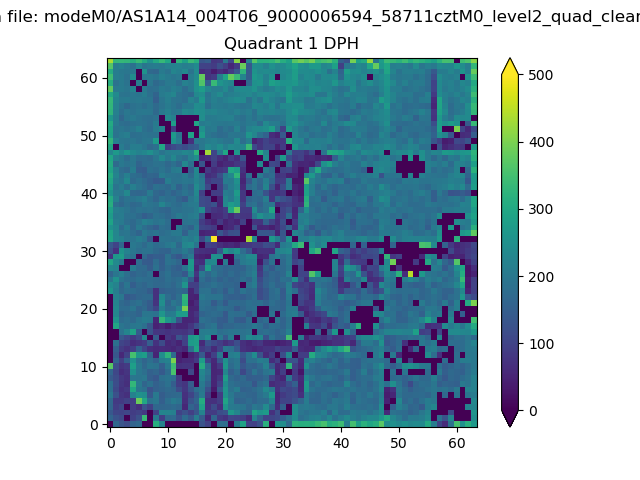

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

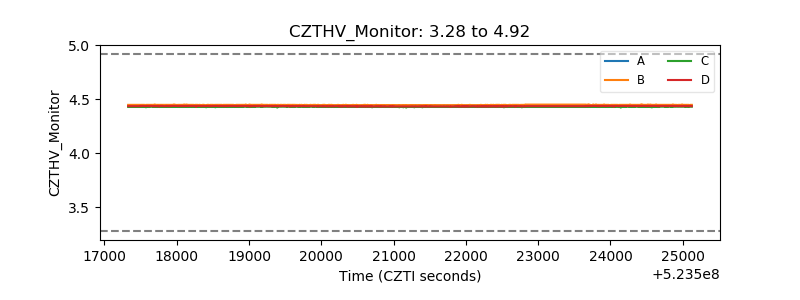

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

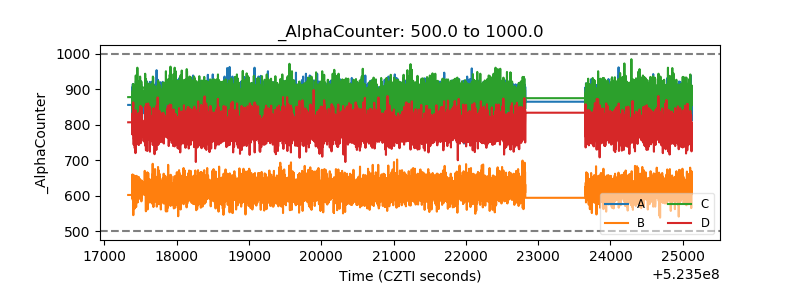

| Alpha Counter |  |
| _CPM_Rate |  |

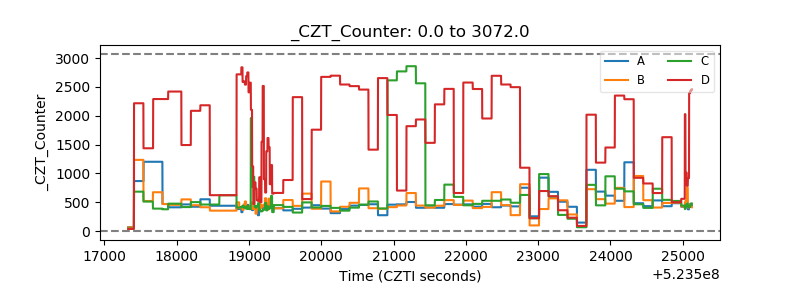

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

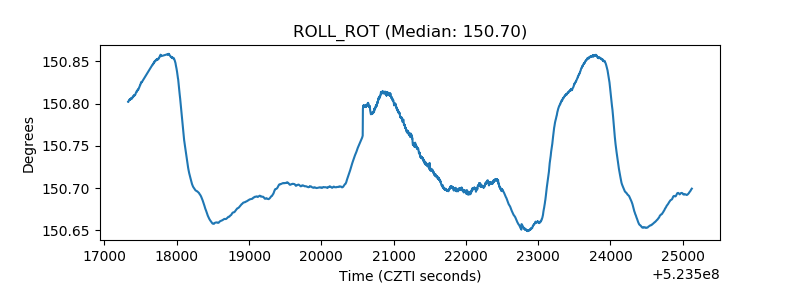

| _ROLL_ROT |  |

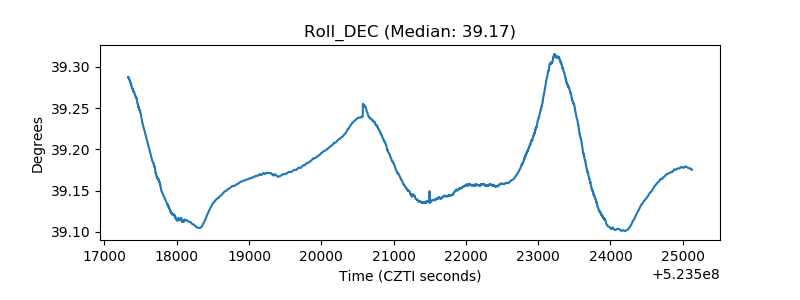

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
