| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58721cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58721cztM0_level2_quad_clean.evt |
| Size (bytes) | 812,200,320 | 117,357,120 |
| Size | 774.6 MB | 111.9 MB |
| Events in quadrant A | 8,134,535 | 766,822 |
| Events in quadrant B | 9,053,088 | 757,597 |
| Events in quadrant C | 4,167,357 | 774,293 |
| Events in quadrant D | 8,068,215 | 676,470 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30007 | 28 |
| B | 0 | 32815 | 59 |
| C | 0 | 18448 | 23 |
| D | 0 | 29724 | 48 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8316 | 571 | 6.866282% |
| B | 8311 | 1333 | 16.038984% |
| C | 8314 | 44 | 0.529228% |
| D | 8312 | 771 | 9.275746% |

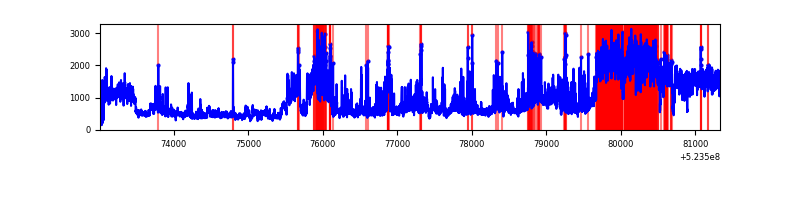

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8323 | 8323 | 634 | 634 | 7.62% | 7.62% |  |
| B | 8323 | 8318 | 679 | 679 | 8.16% | 8.16% |  |
| C | 8324 | 8323 | 33 | 33 | 0.40% | 0.40% |  |
| D | 8324 | 8323 | 784 | 784 | 9.42% | 9.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 4458174 | 19825.65 | 900 | 876 | 224.8 |
| A | 10 | 17 | 86001 | 378.63 | 900 | 876 | 224.8 |
| A | 7 | 64 | 45567 | 198.78 | 900 | 876 | 224.8 |
| B | 5 | 172 | 4758173 | 25361.01 | 865 | 830 | 187.6 |
| B | 6 | 255 | 268340 | 1426.07 | 865 | 830 | 187.6 |
| B | 7 | 0 | 207127 | 1099.75 | 865 | 830 | 187.6 |
| C | 12 | 249 | 118510 | 480.44 | 900 | 892 | 244.8 |
| C | 14 | 254 | 114140 | 462.59 | 900 | 892 | 244.8 |
| C | 13 | 3 | 100922 | 408.6 | 900 | 892 | 244.8 |
| D | 11 | 129 | 3484338 | 14089.59 | 867 | 829 | 247.2 |
| D | 2 | 120 | 402001 | 1622.6 | 867 | 829 | 247.2 |
| D | 9 | 49 | 279960 | 1128.99 | 867 | 829 | 247.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

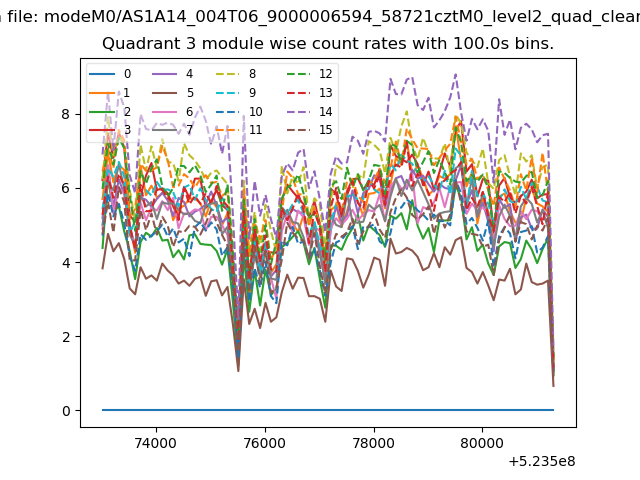

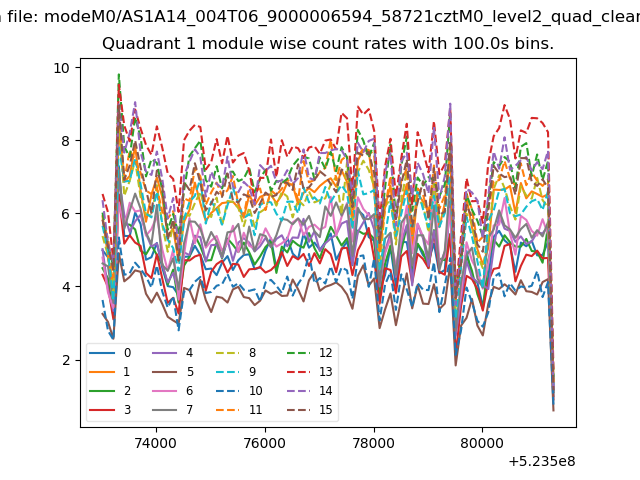

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

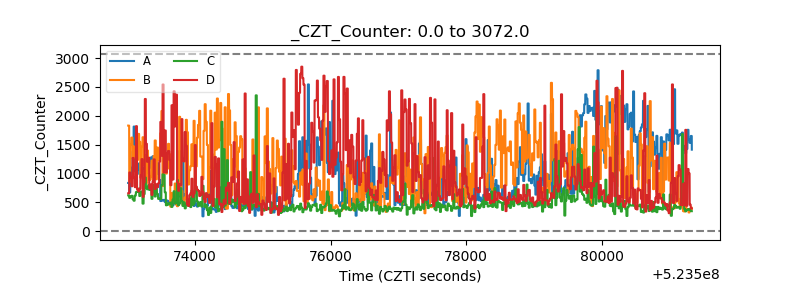

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

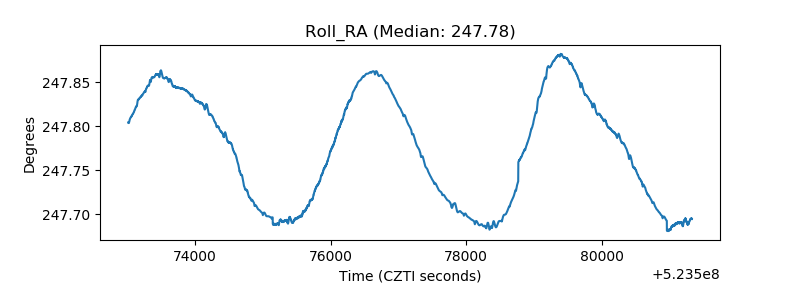

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

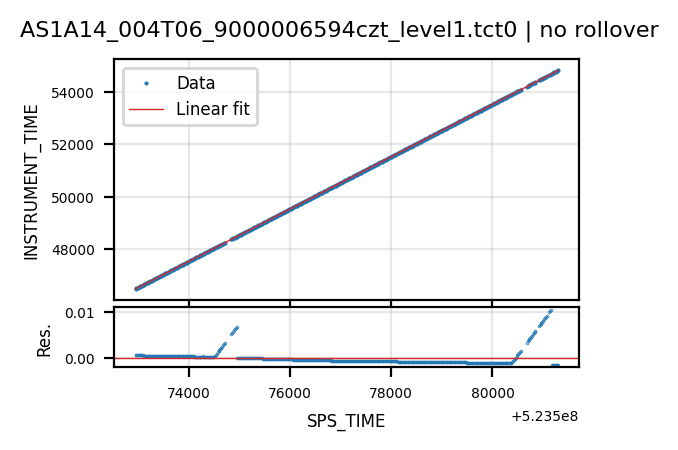

| Tct |  |  |
