| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58735cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58735cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,643,200 | 106,761,600 |
| Size | 612.9 MB | 101.8 MB |
| Events in quadrant A | 3,611,050 | 744,213 |
| Events in quadrant B | 4,676,921 | 767,466 |
| Events in quadrant C | 4,044,563 | 712,471 |
| Events in quadrant D | 10,855,143 | 469,812 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16602 | 84 |
| B | 0 | 19475 | 98 |
| C | 0 | 17750 | 71 |
| D | 0 | 37824 | 271 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7739 | 31 | 0.400569% |
| B | 7740 | 330 | 4.263566% |
| C | 7742 | 125 | 1.614570% |
| D | 7731 | 2548 | 32.958220% |

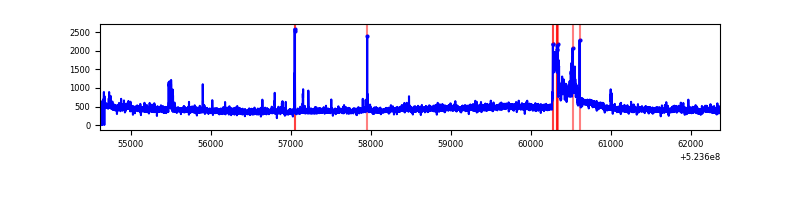

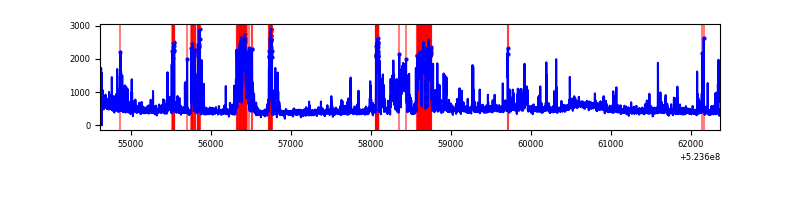

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7745 | 7744 | 11 | 11 | 0.14% | 0.14% |  |
| B | 7752 | 7745 | 237 | 237 | 3.06% | 3.06% |  |
| C | 7749 | 7745 | 124 | 124 | 1.60% | 1.60% |  |
| D | 7739 | 7730 | 2560 | 2560 | 33.08% | 33.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 248797 | 1192.65 | 838 | 816 | 207.9 |
| A | 3 | 14 | 61888 | 293.72 | 838 | 816 | 207.9 |
| A | 13 | 254 | 14211 | 64.42 | 838 | 816 | 207.9 |
| B | 6 | 255 | 519600 | 2966.71 | 818 | 788 | 174.9 |
| B | 2 | 249 | 355998 | 2031.19 | 818 | 788 | 174.9 |
| B | 4 | 201 | 134652 | 765.47 | 818 | 788 | 174.9 |
| C | 6 | 223 | 298368 | 1334.37 | 818 | 811 | 223.0 |
| C | 13 | 3 | 205674 | 918.69 | 818 | 811 | 223.0 |
| C | 12 | 252 | 104871 | 466.65 | 818 | 811 | 223.0 |
| D | 11 | 129 | 7634030 | 38923.68 | 689 | 658 | 196.1 |
| D | 2 | 249 | 180784 | 918.49 | 689 | 658 | 196.1 |
| D | 12 | 248 | 109116 | 553.04 | 689 | 658 | 196.1 |

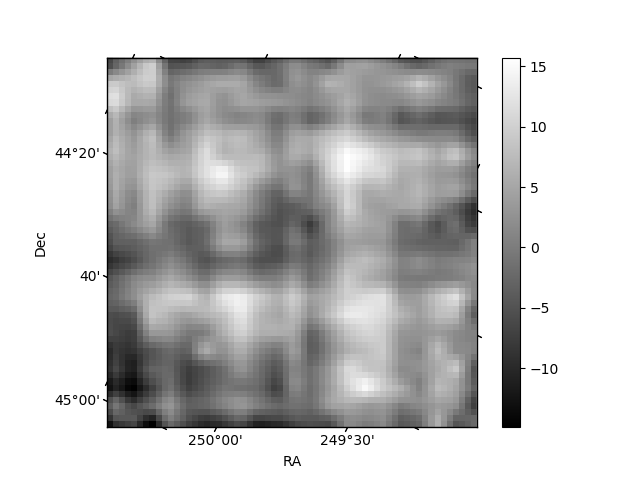

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

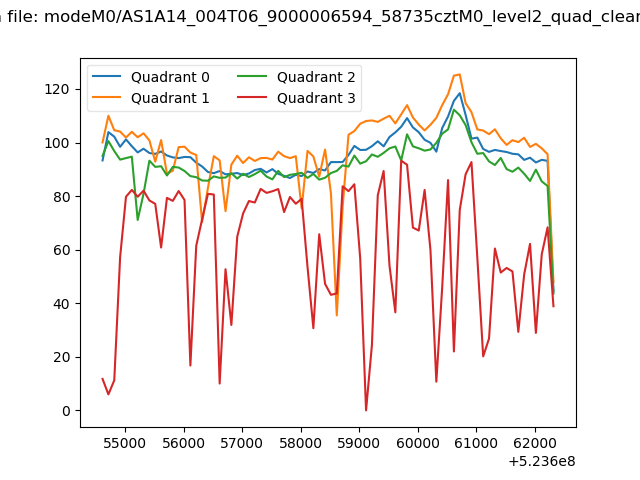

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

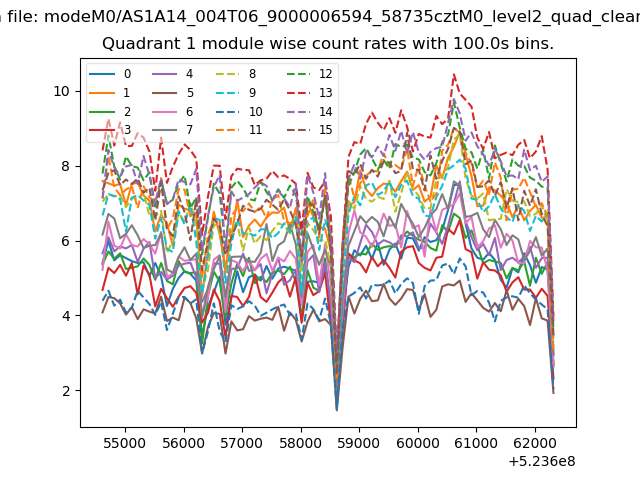

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

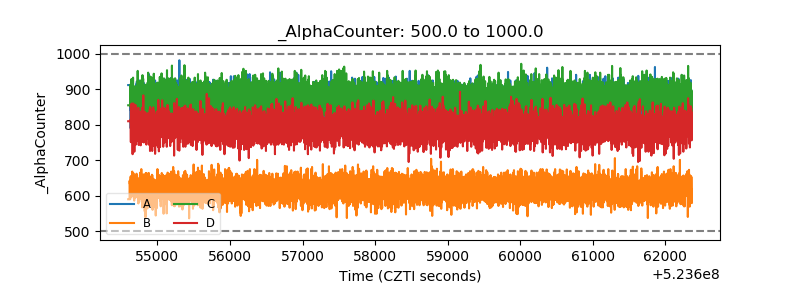

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

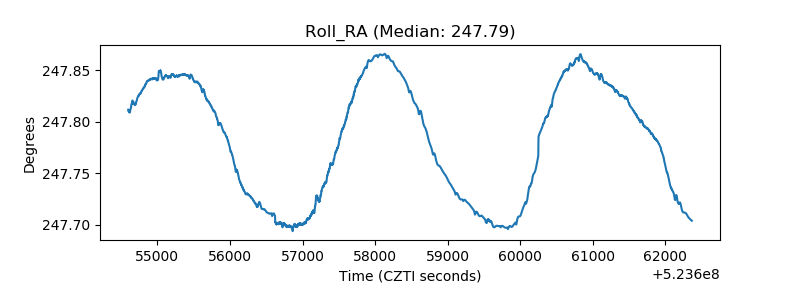

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

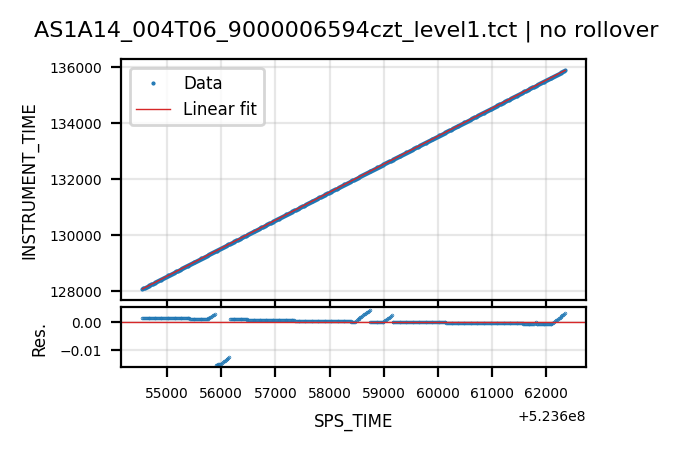

| Tct |  |  |
