| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T06_9000006594_58736cztM0_level2.fits | modeM0/AS1A14_004T06_9000006594_58736cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,429,440 | 111,600,000 |
| Size | 665.1 MB | 106.4 MB |
| Events in quadrant A | 3,601,867 | 780,831 |
| Events in quadrant B | 4,580,816 | 826,373 |
| Events in quadrant C | 4,780,635 | 746,755 |
| Events in quadrant D | 12,221,331 | 458,724 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17101 | 305 |
| B | 0 | 19666 | 118 |
| C | 0 | 20202 | 144 |
| D | 0 | 42621 | 680 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 2 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 2 |
| D | 0 | 166 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8131 | 14 | 0.172181% |
| B | 8164 | 226 | 2.768251% |
| C | 8157 | 185 | 2.267991% |
| D | 8113 | 3130 | 38.580057% |

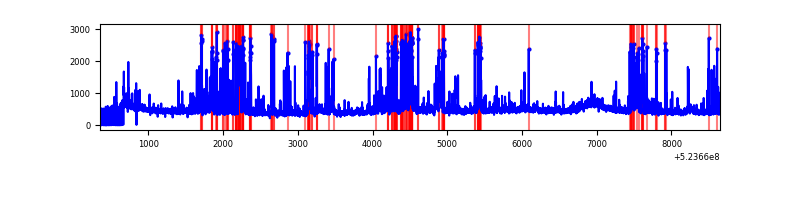

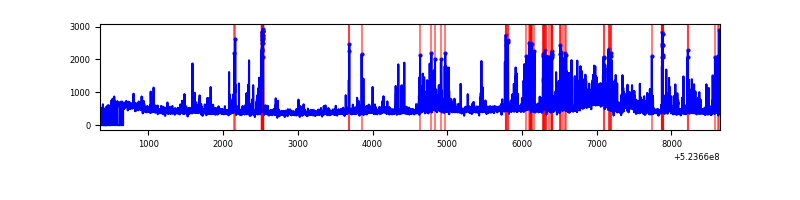

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8291 | 8171 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8295 | 8195 | 93 | 93 | 1.12% | 1.13% |  |
| C | 8295 | 8186 | 203 | 203 | 2.45% | 2.48% |  |
| D | 8294 | 8152 | 3037 | 3037 | 36.62% | 37.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 73745 | 326.44 | 889 | 864 | 223.3 |
| A | 15 | 233 | 57232 | 252.47 | 889 | 864 | 223.3 |
| A | 13 | 254 | 14690 | 61.93 | 889 | 864 | 223.3 |
| B | 8 | 234 | 688420 | 3655.72 | 879 | 845 | 188.1 |
| B | 6 | 255 | 96287 | 507.45 | 879 | 845 | 188.1 |
| B | 4 | 201 | 63823 | 334.84 | 879 | 845 | 188.1 |
| C | 13 | 3 | 437341 | 1828.39 | 871 | 861 | 238.7 |
| C | 6 | 223 | 346711 | 1448.74 | 871 | 861 | 238.7 |
| C | 12 | 252 | 150842 | 628.26 | 871 | 861 | 238.7 |
| D | 11 | 129 | 8808720 | 43584.15 | 712 | 679 | 202.1 |
| D | 8 | 160 | 182424 | 899.31 | 712 | 679 | 202.1 |
| D | 2 | 249 | 172180 | 848.62 | 712 | 679 | 202.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

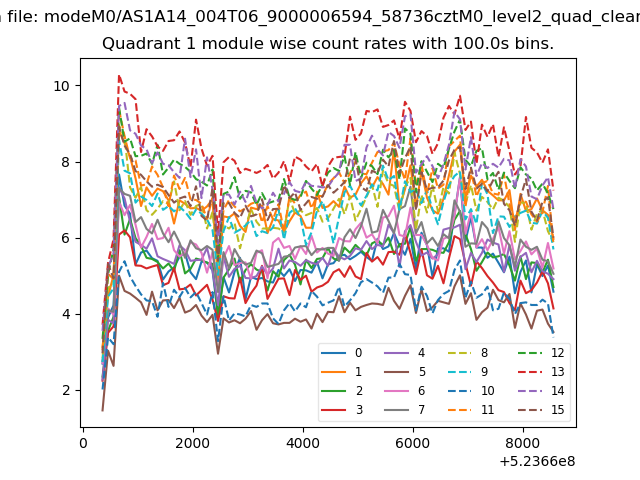

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

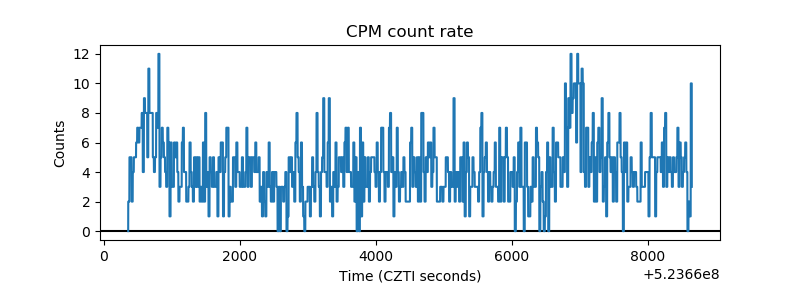

| _CPM_Rate |  |

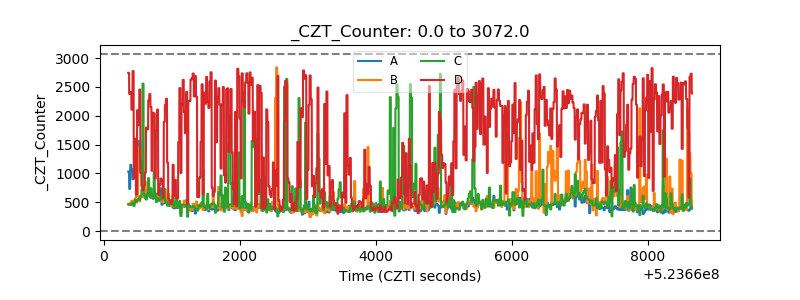

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

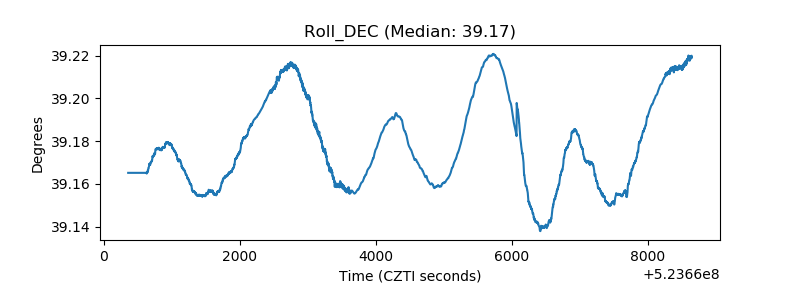

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

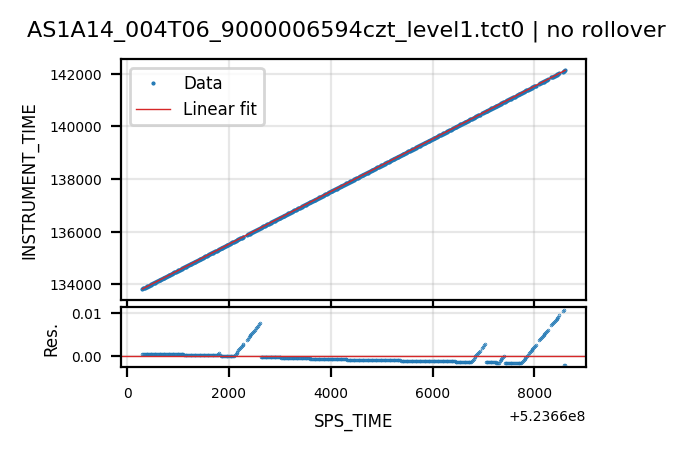

| Tct |  |  |
