| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58793cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58793cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,109,760 | 100,103,040 |
| Size | 639.1 MB | 95.5 MB |
| Events in quadrant A | 3,639,118 | 709,642 |
| Events in quadrant B | 3,878,676 | 751,646 |
| Events in quadrant C | 3,626,550 | 680,747 |
| Events in quadrant D | 13,090,239 | 376,578 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16116 | 0 |
| B | 0 | 16792 | 0 |
| C | 0 | 16136 | 1 |
| D | 0 | 43883 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7355 | 41 | 0.557444% |
| B | 7355 | 127 | 1.726717% |
| C | 7355 | 47 | 0.639021% |
| D | 7355 | 3314 | 45.057784% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7355 | 7355 | 27 | 27 | 0.37% | 0.37% |  |
| B | 7355 | 7355 | 72 | 72 | 0.98% | 0.98% |  |
| C | 7355 | 7355 | 48 | 48 | 0.65% | 0.65% |  |
| D | 7354 | 7354 | 3214 | 3214 | 43.70% | 43.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 205156 | 1019.65 | 807 | 784 | 200.4 |
| A | 10 | 251 | 76016 | 375.35 | 807 | 784 | 200.4 |
| A | 13 | 248 | 55034 | 270.66 | 807 | 784 | 200.4 |
| B | 4 | 171 | 251760 | 1476.09 | 797 | 769 | 170.0 |
| B | 4 | 158 | 142610 | 834.17 | 797 | 769 | 170.0 |
| B | 0 | 157 | 54367 | 315.21 | 797 | 769 | 170.0 |
| C | 6 | 223 | 218118 | 1009.57 | 786 | 779 | 215.3 |
| C | 13 | 3 | 96578 | 445.0 | 786 | 779 | 215.3 |
| C | 12 | 249 | 60016 | 275.16 | 786 | 779 | 215.3 |
| D | 12 | 110 | 5468623 | 29916.8 | 634 | 606 | 182.8 |
| D | 11 | 129 | 4755981 | 26017.77 | 634 | 606 | 182.8 |
| D | 12 | 248 | 55155 | 298.45 | 634 | 606 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

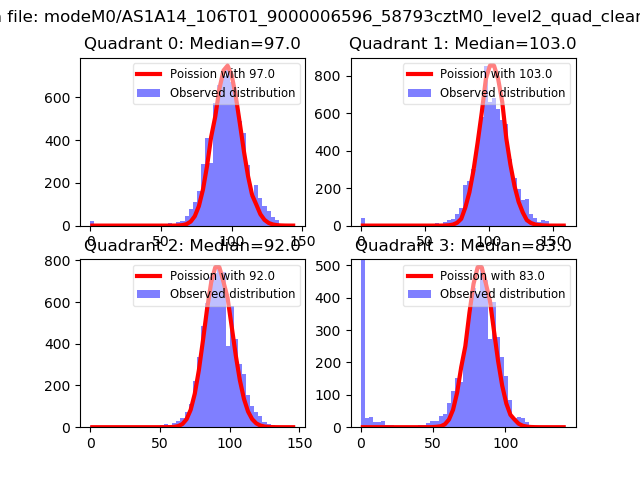

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

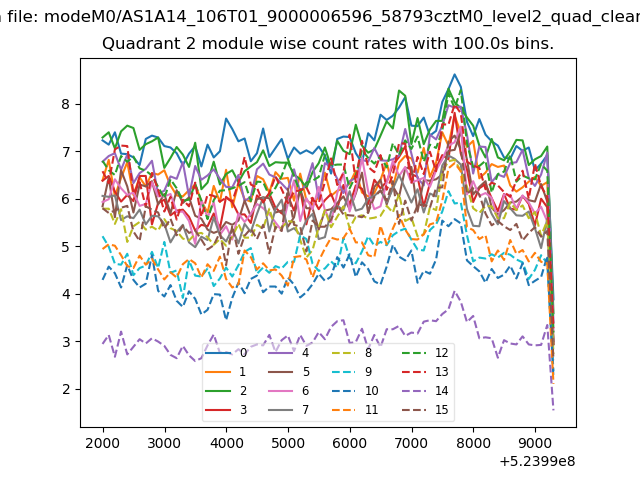

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

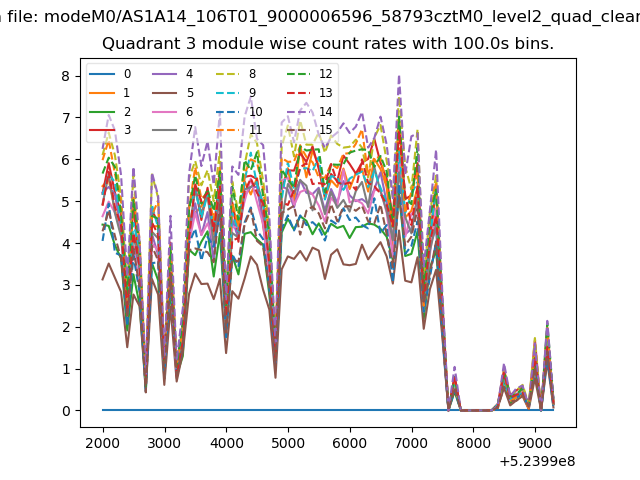

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

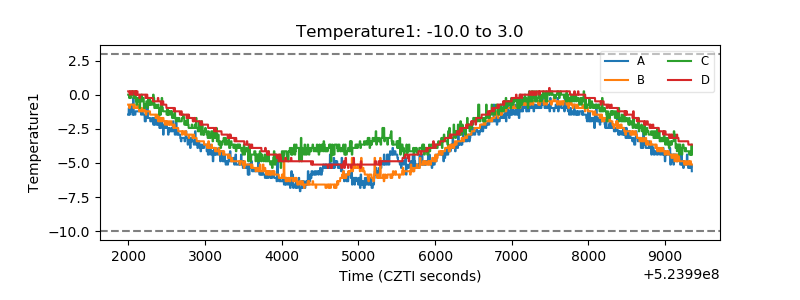

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
